Omron CQM1 User Manual

14

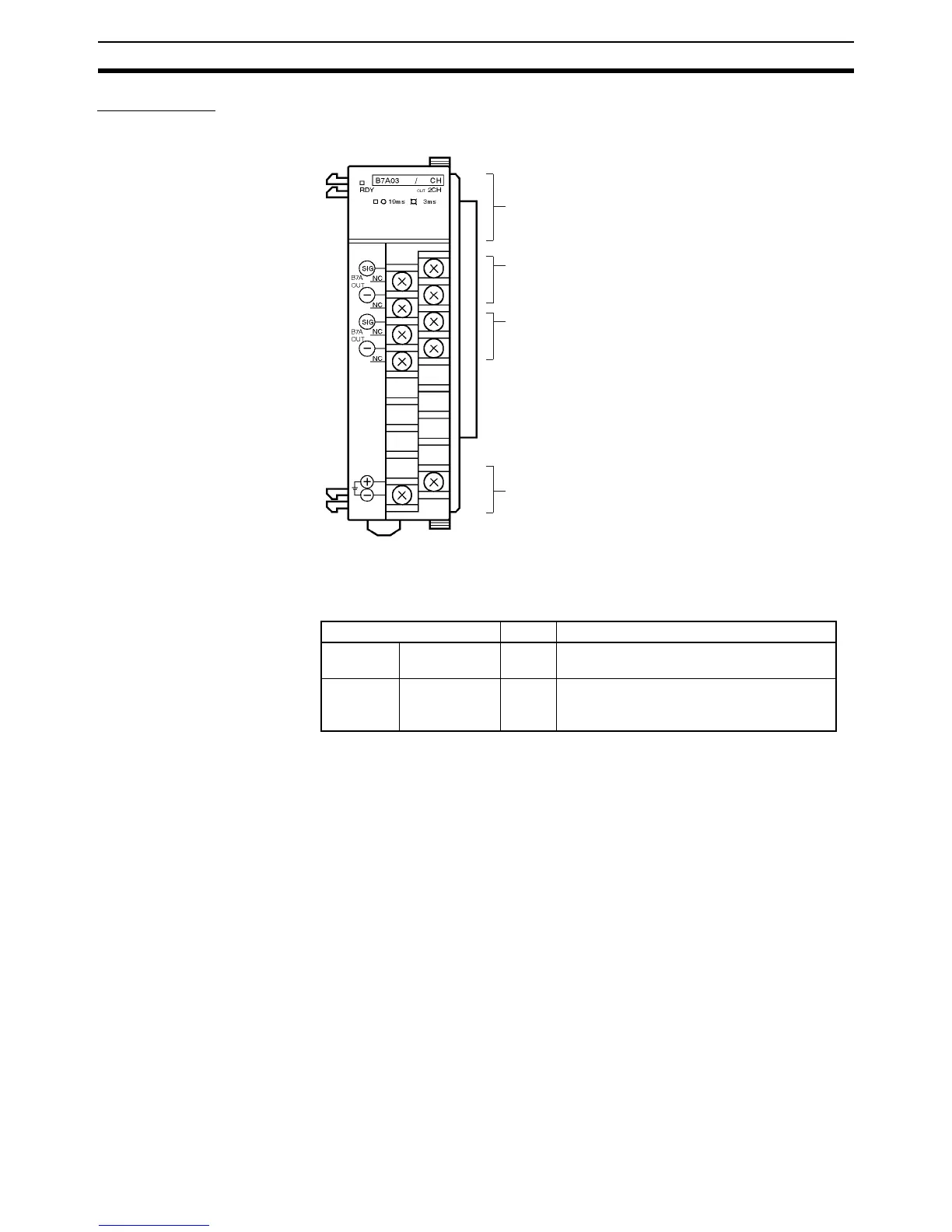

Nomenclature Section 2-1
CQM1-B7A03
Front View
Indicators
Indicators (see following table)
B7A Link Terminal connection terminals 1
For connection of a 16-point output B7A Link Terminal.
outputs least-significant word (m) data.
External power terminals
Required for transmission with the B7A Link Terminal. Con-
nect a 12- to 24-VDC power supply.
Terminal screws: M3
(Optimum tightening torque: 0.5 N • m)
B7A Link Terminal connection terminals 2
For connection of a 16-point output B7A Link Terminal.
outputs most-significant word (m+1) data.
Name Color Function
RDY Unit ready Green Lit while the CQM1H/CQM1 is supplied with
power.
19ms/3ms Transmission
delay time
Orange Lit while transmission delay time is set to
RAPID (3 ms). Not lit when set to STAN-
DARD (19.2 ms).

Omron CQM1 Specifications

General

Model	CQM1
I/O Capacity	Up to 256 I/O points
Programming Language	Ladder Logic
Timer/Counter	128 timers/counters
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	24 VDC or 100-240 VAC
Communication Ports	RS-232C
Memory Capacity	3.2K words
Instruction Set	Basic and advanced instructions
Memory	RAM (battery-backed)
Program Memory	3.2K words
Storage Temperature	-20 to 75°C
