CHAPTER 5 PARAMETERS
E5EK
5--32
• The parameters in this mode can be used only when the “security” parameter
(protect mode) is set to “0” and “1”.
• This mode contains the parameters for setting expanded functions. These parame-
ters include parameters for setting ST (self-tuning), setting the SP setting limiter,
selecting advanced PID and ON/OFF control, specifying the standby sequence re-
set method, and automatic return of display mode.
• To select this mode when in the levels 0 to 2, setup, option and calibration modes,
press the
key for 1 second minimum. The display changes to the menu dis-
play. If you select [
]usingthe key then press the key for 1 se-
cond minimum, the controller enters the expansion mode.
• To select parameters in this mode, press the
key. To change parameter set-
tings, use the
or keys.

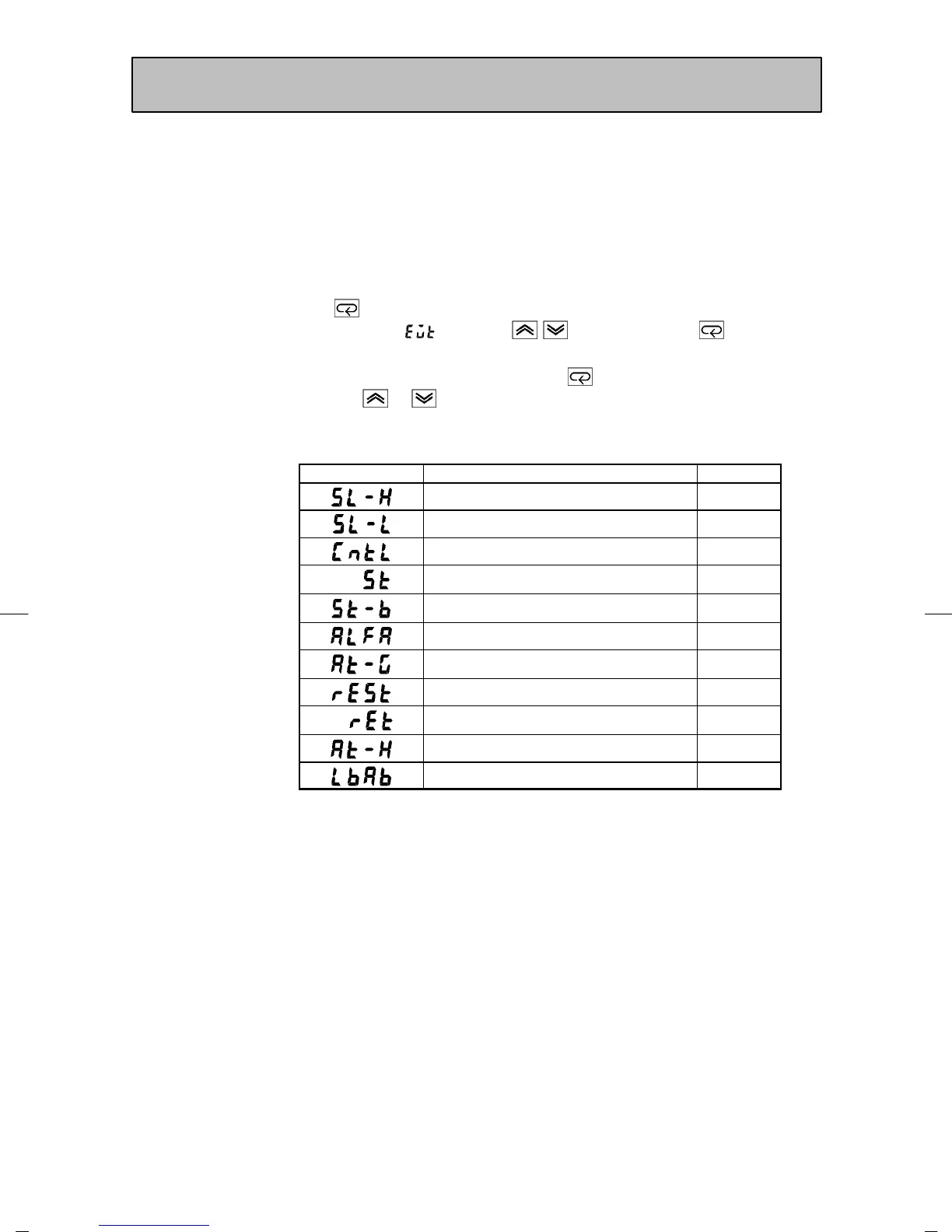

• The following table shows the parameters supported in this mode and the page
where the parameter is described.
Symbol Paramete r Name Page
Set point upper limit 5-33
Set point lower limit 5-33
PID / ON/OFF 5-33
ST 5-34
ST stable range 5-34
α 5-34
AT calculated gain 5-35
Standby sequence reset method 5-35
Automatic return of display mode 5-36
AT hysteresis 5-36
LBA detection width 5-36
Expansion Mode
To Next Page
