CHAPTER 5 PARAMETERS
E5EK
5--10
• The parameters in this mode can be used only when the “security” parameter
(protect mode) is set to “0” to “3”.
• This mo de contains the main parameters for adjusting control. These parameters
include parameters for executing AT (auto-tuning), setting the alarm values, set-
ting the control period, and setting PID parameters.
• To select this mode when in the levels 0 and 2, setup, expansion, option and cal -
ibration modes, press the
key for 1 second minimum. The display changes to
the menu display. If you select [
]thenpressthe key for 1 second mini -
mum, the controller enters the level 1 mode.
• To select parameters in this mode, press the
key. To change parameter set-
tings, use the
or keys.

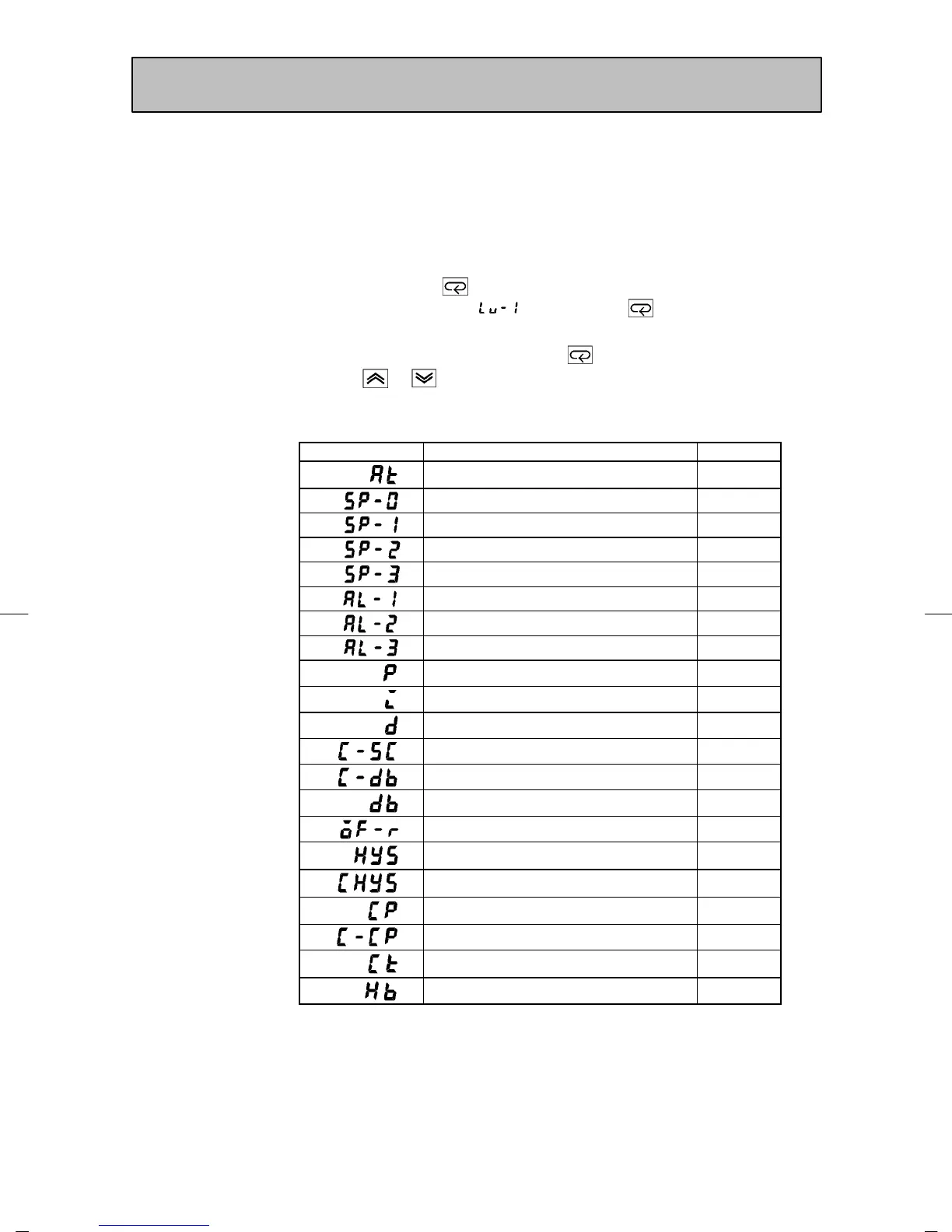

• The following table shows the parameters supported in this mode and the page
where the parameter is described.
Symbol Paramete r Name Page
AT Execute/Cancel 5-11
Set point 0
5-11
Set point 1
5-11
Set point 2
5-11
Set point 3
5-11
Alarm value 1
5-12
Alarm value 2
5-12
Alarm value 3
5-12
Proportional band
5-12
Integral time
5-12
Derivative time
5-12
Cooling coefficient
5-13
Dead band
5-14
Position-proportional dead band 5-14
Manual reset value
5-15
Hysteresis (heat)
5-15
Hysteresis (cool)
5-15
Control period (heat)
5-16
Control period (cool)
5-16
Heater current monitor 5-17
Heater burnout 5-17
Level 1 Mode
