CHAPTER 3 BASIC OPERATI ON
E5EK
3--8

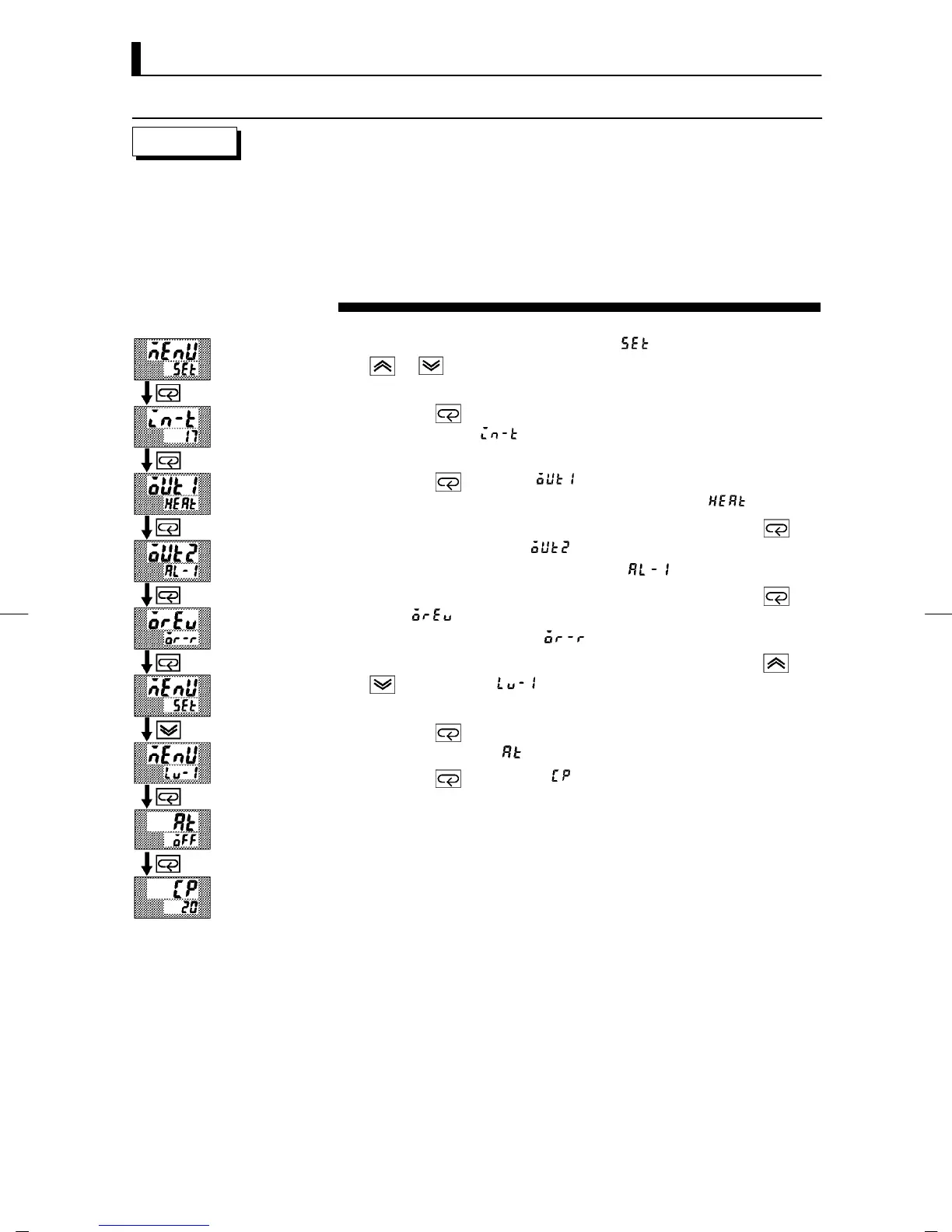

In this example, let’s set the parameters as follows:
“control output 1 assignment” = “control output (heat)”
“control output 2 assignment” = “alarm output 1”
“direct/reverse operation” = “reverse operation”
“control period” = “20 secs”
“run/stop” = “run”
All of the above settings in this example are factory settings. So, in this
example, we are on ly going to check the parameter settings.
(1) Select the menu display, and select [ ] (setup mode) using the
or keys. For details on selecting the menu display, see page
1-8.
(2) Pr ess the
key to enter the setup mode. The top parameter in
the setup mode [ ] “input type” is displayed. In this example,
the parameter setting is “17: 4 to 20 mA.”
(3) Pr ess the
key until [ ] (“control output 1 assignment”
parameter) is displayed. The parameter default is [ ].
(4) Asthesettinginthisexampleistobeleftasitis,pressthe
key.
The display changes to [
] (“control output 2 assignment”
parameter). The parameter default is [
].
(5) Asthesettinginthisexampleistobeleftasitis,pressthe
key
until [
] (“direct/reverse operation” parameter) is displayed.
The parameter default is [
].
(6) Asthesettinginthisexampleistobeleftasitis,pressthe
or
keys to select [ ] (level 1 mode). For details on selecting
the menu display, see page 1-8.
(7) Pr ess the
key to enter the level 1 mode. The top parameter in
the level 1 mode [
] “AT execute/cancel” is displayed.
(8) Pr ess the
key until [ ] (“control period” parameter) is dis-
played. The parameter default is “20”. As the setting in this exam-
ple is to be left as it is, quit key operation.
Setting Example
1 second min.
1 second min.
1 second min.
