2.1 Setting up
E5EK
2--3
JSetting up the output unit
Check the type of the output unit you are about to set up.
For details on types of output unit and main specifications, see page
2-9.

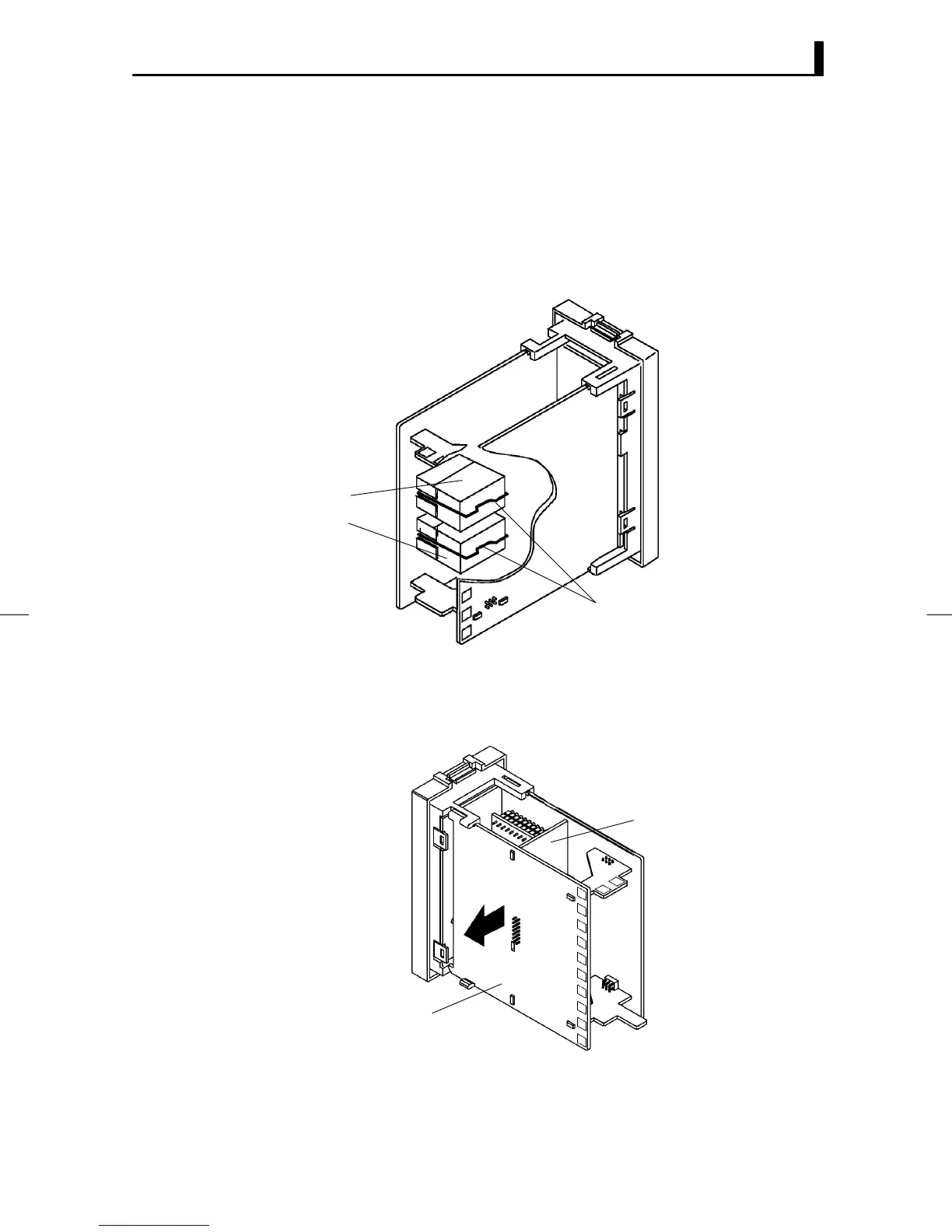

(1) Check the positions of the sockets you are about to insert the out-
put units into as shown in the following diagram.
OUT2
OUT1
Bracket
(2) Remove the power board in the direction of the arrow shown in the
figure. The power board is connected to the control board by a cen-
ter connector. Remove this connector taki ng care not to b end the
connector pins.
Power board
Control board
(3) Insert the output unit for control output 1 i nto the socket “OUT1”
and the output unit for control output 2 into the socket “OUT2”.
(4) Fasten the output units with the bracket (accessory).
(5) Return the power board to its original position.
F Before setup
F Procedure
