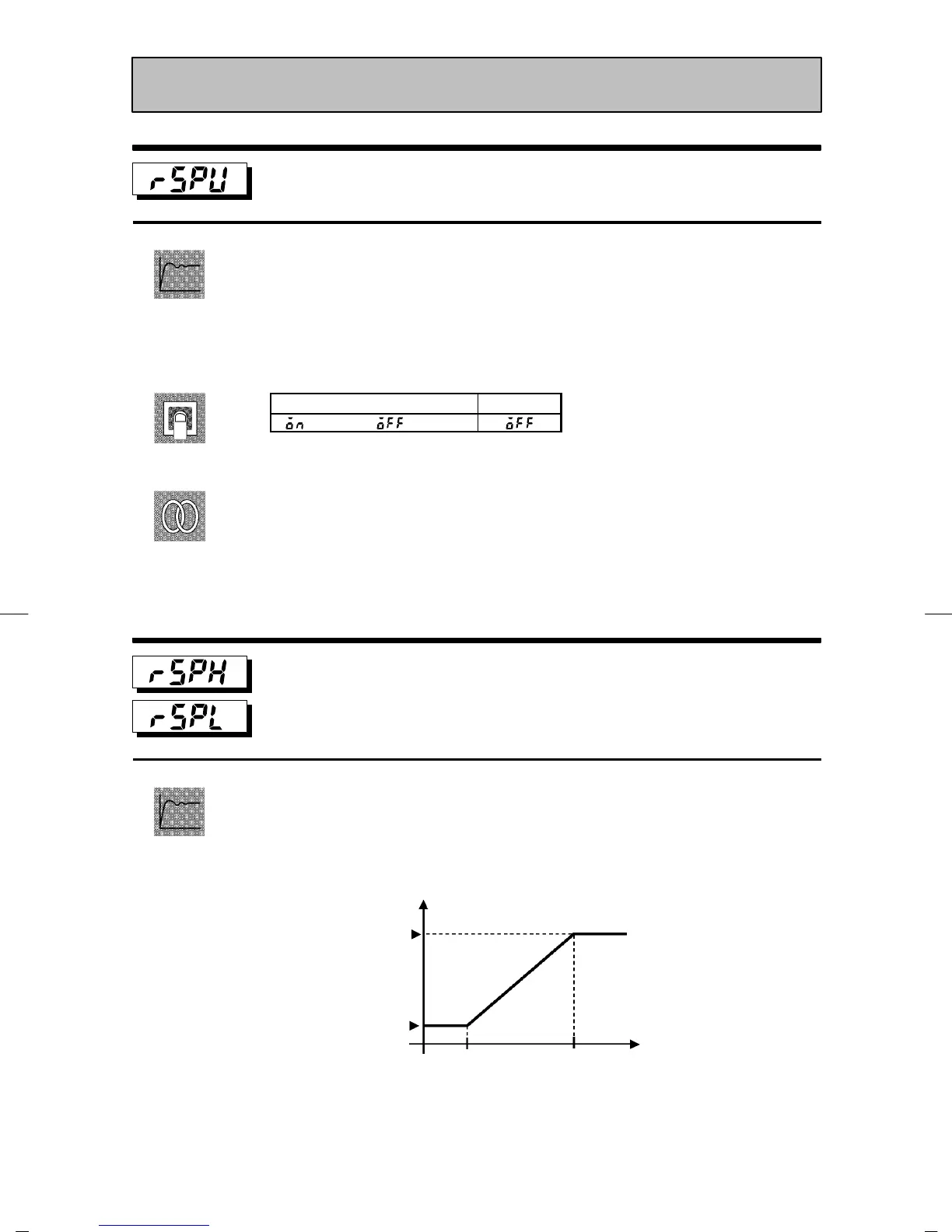

CHAPTER 5 PARAMETERS
E5EK
5--44
Remote SP enab le
Conditions of Use
ST must be OFF.
When this parameter is set to “ON”, the remote SP and local SP can be switched
for use. (That is, to the SP mode can be specified.). Also, the “set p oint during SP
ramp” parameter is enabled at all times.
When this parameter is set to “OFF”, only the local SP can be used. The set point
during SP ramp is enabled only when the SP ramp function is enabled.
Setting Range
Default
[ ]: Enabled/[ ]: Disabled []
F Related article
4.4 How to Use the Remote SP (page 4-11)
F Related parameters
“Set point during SP ramp (level 0 mode)
“SP mode” (level 2 mode)
Remote SP upper limit
Remote SP lower limit
Conditions of Use
The remote SP function must be
enabled.
Sets the remote SP upper and lower limit values. The upper limit value is the
equivalent to 20 mA, and the lower limit value is equivalent to 4 mA. Set the
upper limit value in the “remote SP upper limit” parameter and the lower limit
value in the “remote SP lower limit” parameter.
RSP (%)
420
Input (mA)
Upper limit value
Lower limit value
When the “SP setting upper limit or “SP setting lower limit” parameters are
changed, the remote SP upper and lower limit values are forcibly changed to the
SP setting upper and lower limit values.
Option Mode
Function
Comment
See
Function
