E5EK
5--25
• The parameters in this mode can be used only when the “security” parameter
(protect mode) is set to “0” and “1”.
• This mode contains the parameters for setting the basic specifications of the
E5EK controller. These parameters include parameters for specifying the input
type, scaling, output assignments, and direct/reverse operation.
• To select this mode when in the levels 0 to 2, expansion, option and calibration
modes, press the
key for 1 second minimum. The display changes to the menu
display. If you select [
]usingthe key then press the key for 1
second minimum, the controller enters the setup mode.
• To select parameters in this mode, press the
key. To change parameter set-
tings, use the
or keys.

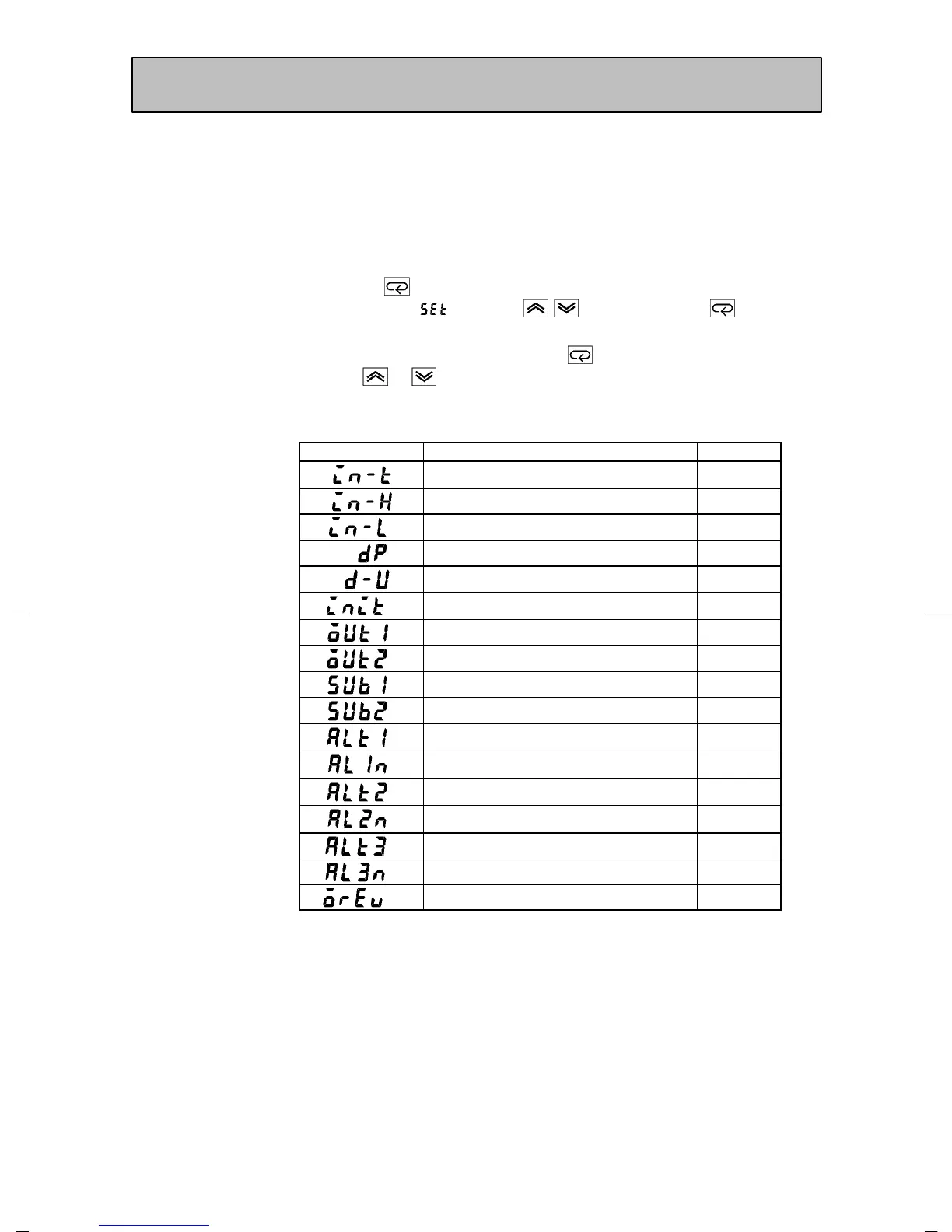

• The following table shows the parameters supported in this mode and the page
where the parameter is described.
Symbol Paramete r Name Page
Input type 5-26
Scaling upper limit
5-27
Scaling lower limit
5-27
Decimal point
5-27
_C/_F selection
5-28
Parameter initialize
5-27
Control output 1 assignment
5-28
Control output 2 assignment
5-28
Auxiliary output 1 assignment
5-29
Auxiliary output 2 assignment
5-29
Alarm 1 type
5-30
Alarm 1 open in alarm
5-31
Alarm 2 type
5-30
Alarm 2 open in alarm
5-31
Alarm 3 type
5-30
Alarm 3 open in alarm
5-31
Direct/Reverse operation
5-31
Setup Mode
