CHAPTER 5 PARAMETERS
E5EK
5--40

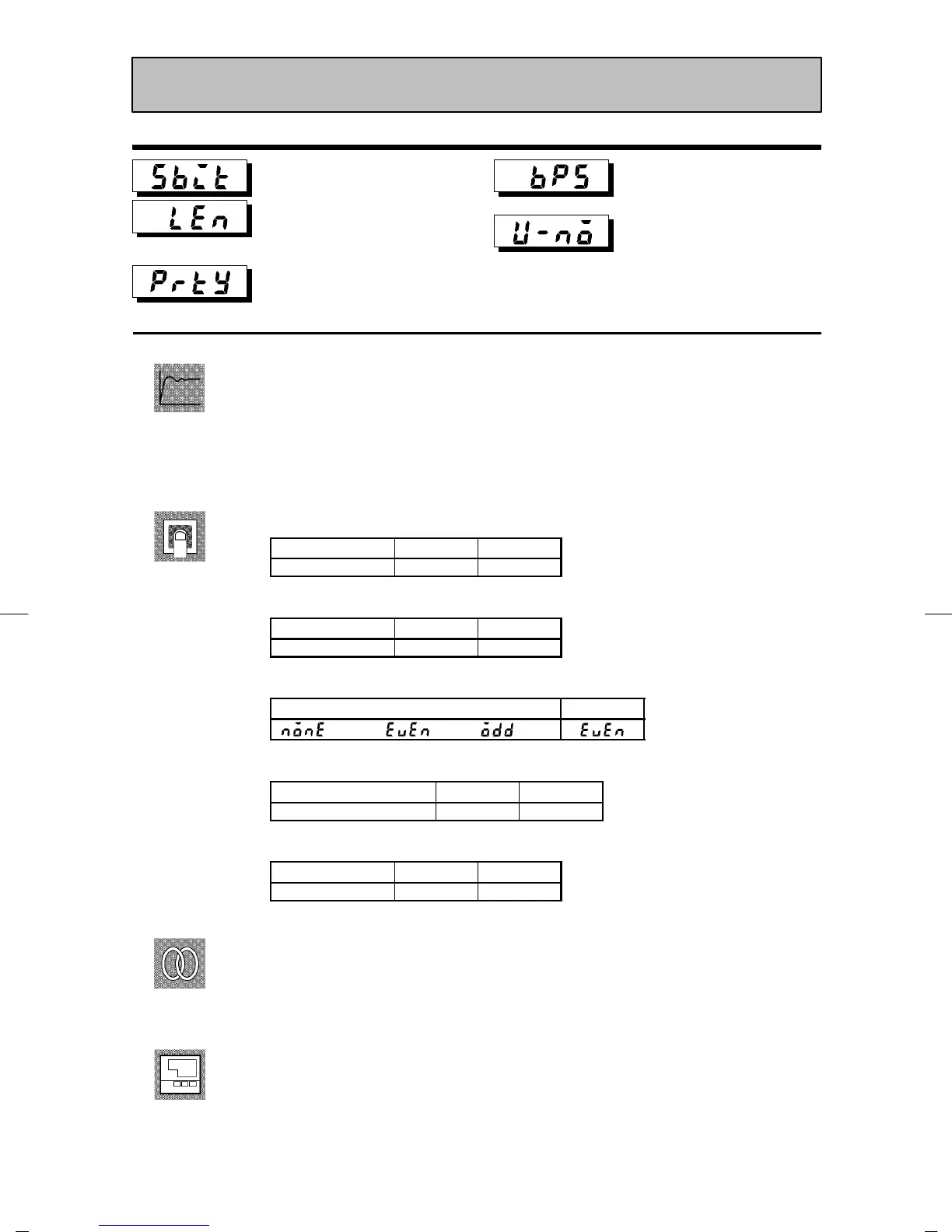

Communicationstopbit
Com mu n icat io n dat a
length
Communication parity
Communication baud rate
Communication unit No.
Conditions of Use
The communications function must be in
use.
• These parameters set the communications conditions. Make sure that the stop bit,
data length, parity and baud rate of the host computer and the E5EK controller
are matching. These p arameters are valid when the p ower is turned ON agai n o r
when level 0 to 2 modes are switched.
• When connecting two or more E5EK controllers to the host computer, set unit
Nos. that will not conflict with the unit Nos. of other controllers.
• “Communication stop bit” parameter
Setting Range
Unit Default
1, 2 Bits 2
• “Communication data length” parameter
Setting Range
Unit Default
7, 8 Bits 7
• “Communication parity” parameter
Setting
Default
[ ]: None/ [ ]:Even/[ ]:Odd
[]
• “Communication baud rate” p arameter
Setting Range
Unit Default
1.2, 2.4, 4.8, 9.6, 19.2 kbps 9.6
• “Communication unit No.” parameter
Setting Range
Unit Default
0to99 None 0
F Related article
Chapter6 USING THE COMMUNICATIONS FUNCTION
F Related parameter
“Remote/Local” (level 2 mode)
F Option unit
E53-AK01/02/03
Option Mode
Function
Comment
See
Model
