CHAPTER 5 PARAMETERS
E5EK
5--14

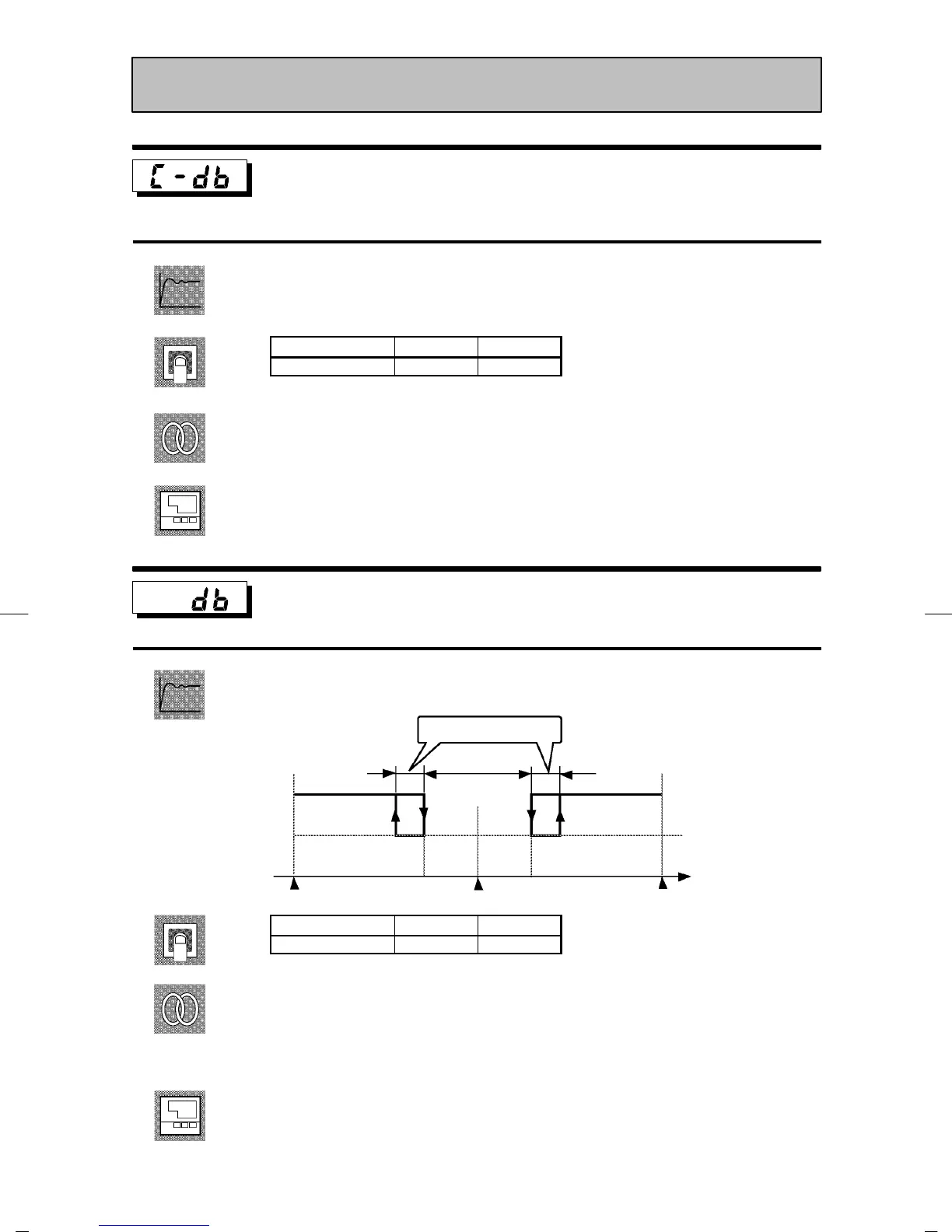

Dead band
Conditions of Use
The control system must be heating and
cooling control.
• Sets the output dead b and width in a heating and cooling control system. A nega-
tive setting sets an overlap band.
Setting Range
Unit Default
-19.99 to 99.99 %FS 0.00
F Related article
4.1 Selecting the Control Method (page 4-2)
E5EK-AA2 AC100-240
E5EK-AA2 AC/DC24
Position-proportional
dead band
Conditions of Use
Control must be position-proportional
control
• Sets the output hold width during position-proportional control (ON/OFF switch-
ing point for open and close output).
Open/close hysteresis
Dead band
MV--Valve opening
100%0-100%
OFF
ON
Setting Range
Unit Default
0.1 to 10.0 % 2.0
F Related article
4.1 Selecting the Control Method/Position-proportional Control (page 4 -3).
F Related parameter
“Open/close hysteresis” (level 2 mode)
E5EK-PRR2 AC100-240
E5EK-PRR2 AC/DC24
Level 1 Mode
Function
Comment
See
Model
Function
Comment
See
Model
