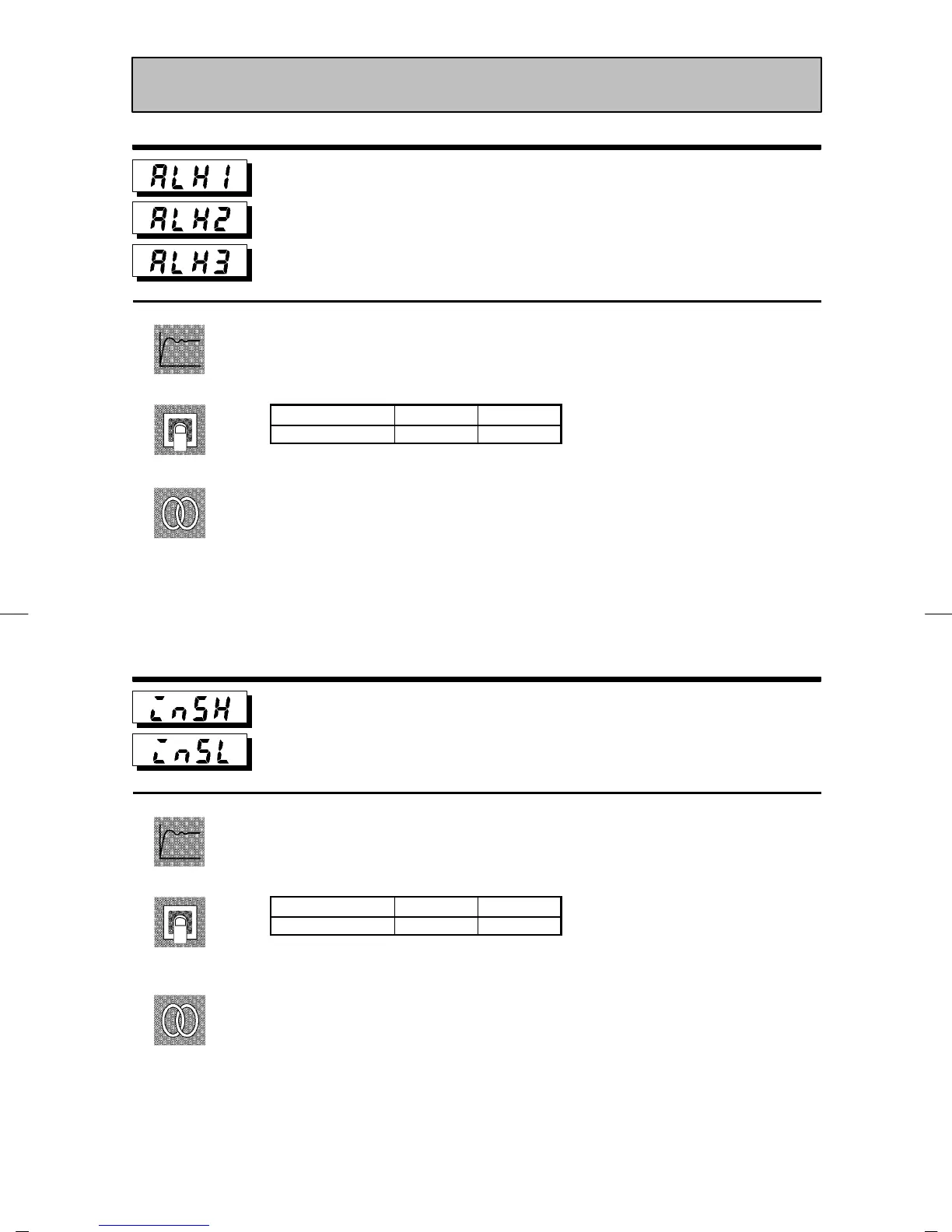

Omron E5EK - Alarm 1 hysteresis; Alarm 2 hysteresis; Alarm 3 hysteresis; Input shift upper limit

CHAPTER 5 PARAMETERS
E5EK
5--24
Alarm 1 hysteresis
Alarm 2 hysteresis
Alarm 3 hysteresis
Conditions of Use
Alarms must be assigned as outputs.
For example, if alarm outputs 1 and 2
only are assigned as outputs, the “alarm
3 hysteresis” parameter cannot be used.
• This parameter is for checking the hysteresis of alarm outputs 1 to 3.
Setting Range
Unit Default
0.01 to 99.99 %FS 0.02
F Related article
3.4 Setting Alarm Type (page 3-9)
F Related parameters
“Alarm 1 type” “Alarm 2 type” “Alarm 3 type” “Alarm 1 open in alarm” “Alarm 2
open in alarm” “Alarm 3 open in alarm” (setup mode)
“Alarm value 1” “Alarm value 2” “Alarm value 3” (level 1 mode)
Input shift upper limit
Input shift lower limit
Conditions of Use
The input type must be set to tempera-
ture input (thermocouple or platinum
resistance thermometer).
• Sets each of the shift amounts for the input shift upper and lower limit values.
Setting Range
Unit Default
-199.9 to 999.9 _Cor_F 0.0
F Related article
3.2 Setting Input Specifications (page 3-4)
F Related parameter
“Input type” (setup mode)
