Omron E5EK User Manual

CHAPTER 7 CALIBRATION
E5EK
7--12
7.6 Checking Indication Accuracy
• After calibrating input, make sure that you check indication accuracy
to make sure that the E5EK controller has been correctly calibrated.
• Operate the E5EK controller in the PV/SP monitor (level 0 mode)
mode.
• Check the indication accuracy at the upper and lower limits and mid-
point.
• Preparation

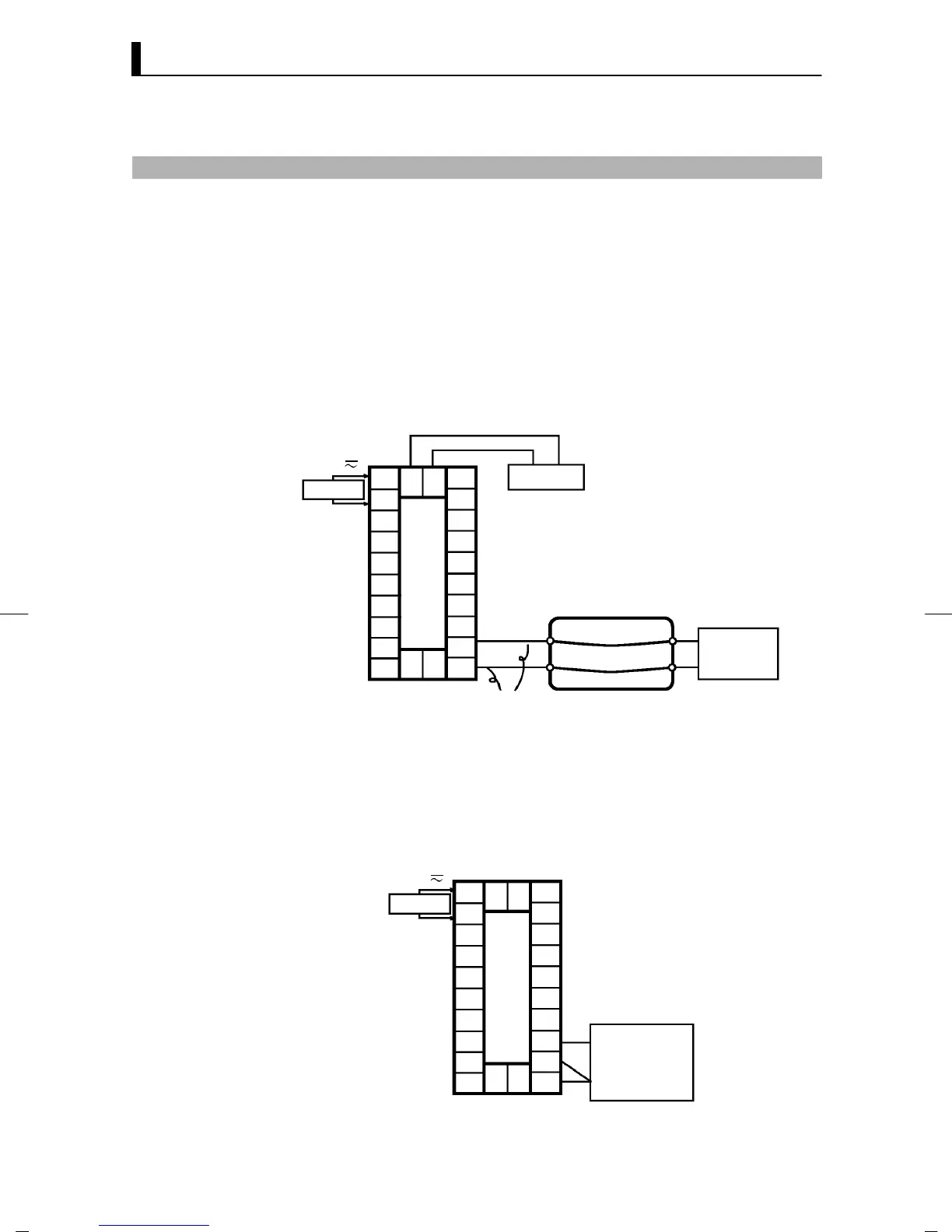

The following figure shows the required device connection. Make sure
that the E5EK controller and cold junction compensator are con -
nected by a compensating conductor for the input type that is to be
used during actual operation.
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
13
12
11
21 22
23
STV
Cold junction
compensator
Compensation
conductor
DMM
SOURCE
AC100-240V
(AC/DC24V )
~
• Operation
Make sure that the cold junction compensator is at 0_C, and set STV
output to the voltage equivalent to the starting power of the check
value.
• Preparation
The following figure shows the required device connection.
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
13
12
11
21 22
23
6-dial
SOURCE
AC100-240V
(AC/DC24V )
~
• Operation
Set the 6-dial to the resistance equivalent to the check value.
F Thermocouple
F Platinum resis-
tance thermome-
ter
