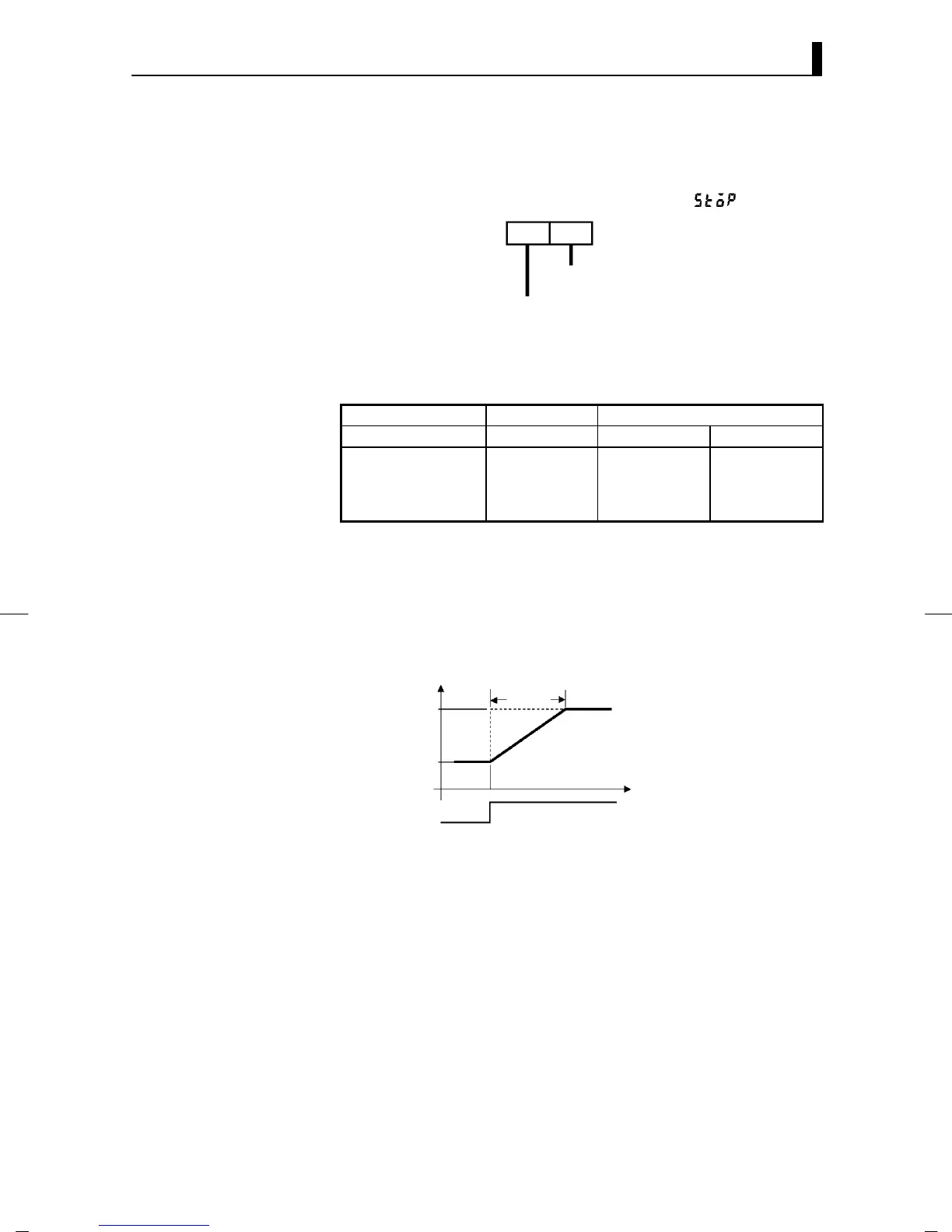

4.3 How to Use Event Input
E5EK
4--9
• In this example, set two event inputs are used, the multi-SP function
to “1”, and event input 2 to “Run/Stop”. Set as follows:
(1) Set “multi-SP function” parameter to “1”
(2) Set “event input assignment 2” parameter to “
”
Event input 1 2
Run/Stop
Multi-SP
• Set points 0 to 3 are set as the set point according to event input.
However, note that these parameters can not be set when the mul-
ti-SP function is not selected. The following table shows the relation-
ship between event inputs and set points 0 to 3.
Multi-SP Function 1 2
Event Input 1 1 2
Set Point 0 OFF OFF OFF
Set Point 1 ON ON OFF
Set Point 2 - OFF ON
Set Point 3 - ON ON
• When you have changed the set point in the PV/SP display, the set
point of the currently selected is also simultaneously changed.
• When you have switched between set point 0 to 3, the SP ramp function
work s if th e SP ramp funct ion is enable d . The follow ing exam ple sh ows
how the se t point change s when you switch from set point 0 to se t point
1.
OFF
ON
SP
set point 1
set point 0
Event input
Time
SP
ramp
F Assignment
example
JMulti-SP
