CHAPTER 2 PREPARATIONS
E5EK
2--4
JSetting up the option unit
• Check the type of the option unit you are about to set up.
• For details on types of option unit and main specifications, see Appen-
dix, Model List (page A -11) and Appendix, Option Unit Ratings and
Characteristics (page A-4).
• For details on the relationship between units and terminals, see page
2-8.

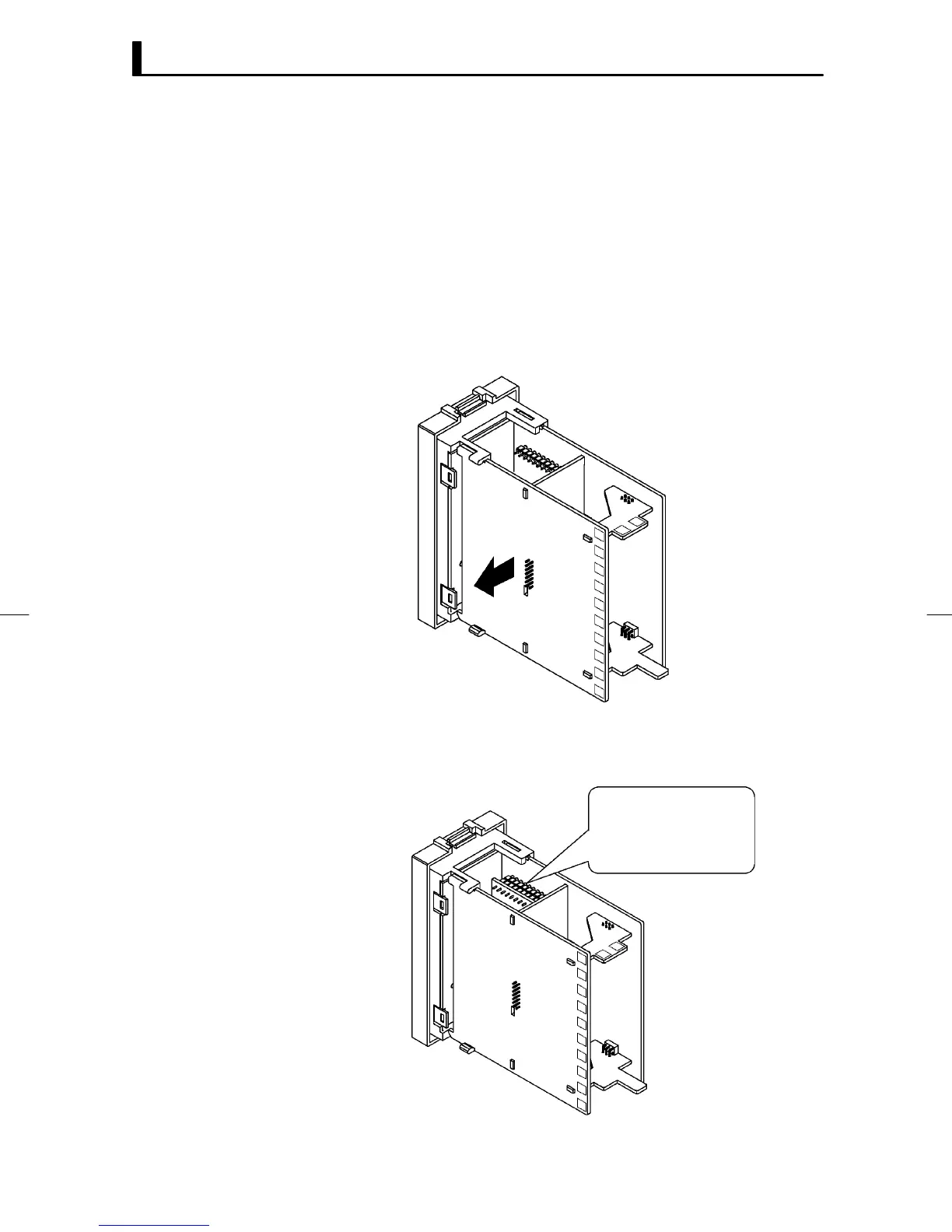

(1) Remove the power board and option boards in the order shown in
the following diagram.
1
2
(2) Insert the option unit into the socket for option 1. The following
diagram shows the relationship between option unit and mounting
position.
Option 1
E53--AKB: Event inputs 1/2
E53--AK01: RS--232C
E53--AK02: RS--422
E53--AK03: RS--485
E53--AKF: Transfer output
(3) Mount the option board and the power board in the order shown.
F Before setup
F Procedure
