CHAPTER 5 PARAMETERS
E5EK
5--28

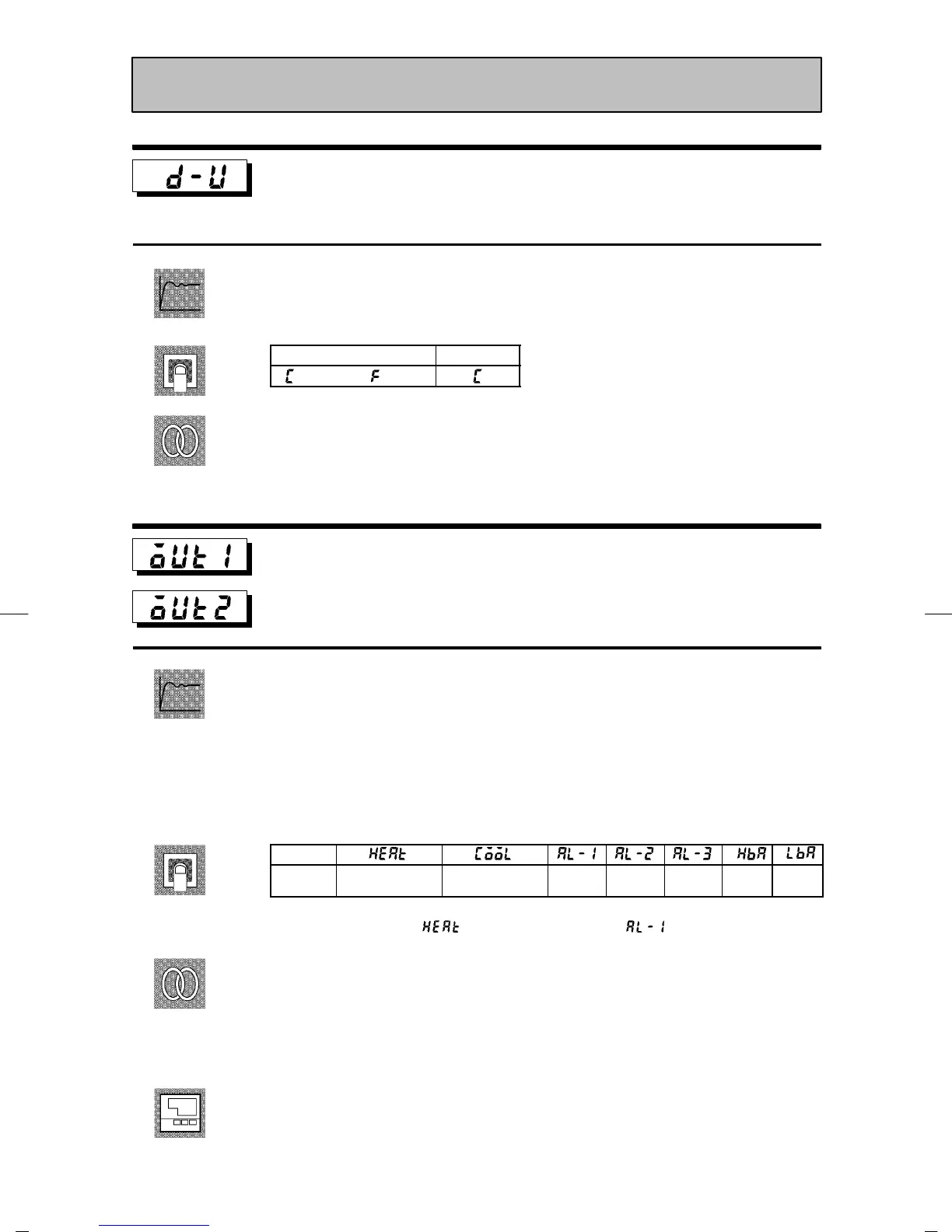

_C/_F selection
Conditions of Use
The input type must be set to tempera-
ture input (thermocouple or platinum
resistance thermometer).
• This parameter can be used when thermocouple or platinum resistance thermom-
eter is selected as the input type.
• Set the temperature input unit to either of “_C” or “_ F”.
Setting Range
Default
: _C/ :_F
F Related article
3.2 Setting Input Specifications (page 3-4)
F Related parameter
“Input type” (setup mode)
Control output 1
assignment
Control output 2
assignment
Conditions of Use
The control must be standard control or
heating and cooling control.
• Assigns the output functions to either of control output 1 or 2.
• The following seven output functions can be assigned as outputs:
Control output (heat), Control output (cool), Alarms 1 to 3, HBA, and LBA.
• Errors 1, 2 and 3 cannot be assigned as outputs.
• When the output function assigned to control output 1 is ON , the “OUT1” LED
lights. However, note that the OUT1 LED does not light when control output (heat)
or control outpu t (cool) are ass ig ne d to linea r outputs such as current and voltage .
• When the output function assigned to control output 2 is ON , the “OUT2” LED
lights.
Symbol
Function
Control output
(heat)
Control output
(cool)
Alarm 1 Alarm 2 Alarm 3 HBA LBA
Defaults:
“Control output 1” = [
], “Control output 2” = [ ]
F Related article
3.3 Setting Output Specifications (page 3 -6)
F Related parameters
• Alarm-related p arameters
• Heating and cooling related parameter
“LBA detection time” (level 2 mode)
E5EK-AA2 AC100-240
E5EK-AA2 AC/DC24
Setup Mode
Function
Comment
See
Function
Comment
See
Model
