Omron E5EK User Manual

APPENDIX
E5EK
A-- 8

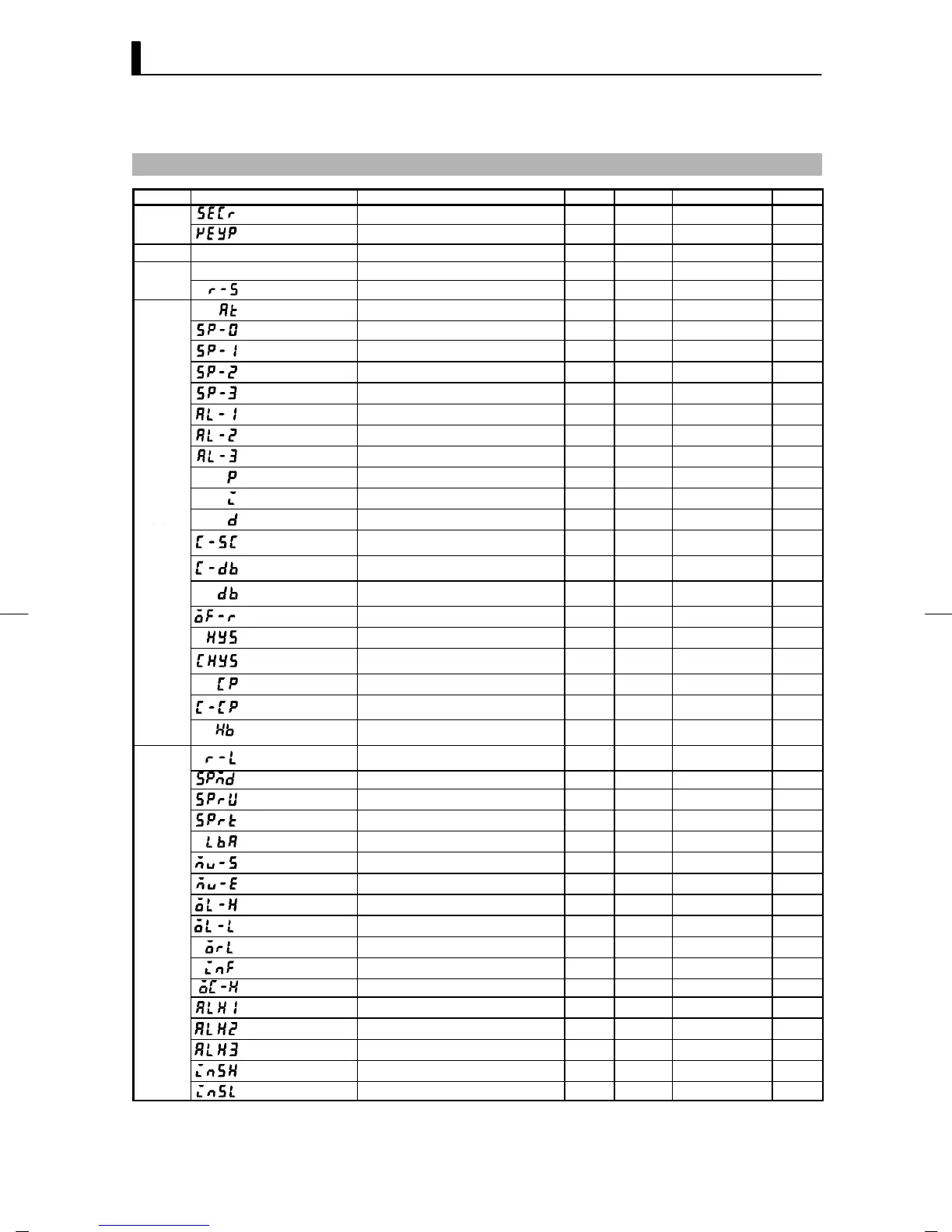

SETTING LIST
Mode Parameter Name Setting Range Unit Default Remarks Setting
P
r
o
t
e
c
t
Security 0to6 None 1
Protect
[A/M] key protect ON/OFF None OFF
Manual Manual MV -5.0 to 105.0 % 0.0
L
e
v
e
l
0
Set point Set point lower limit to Set point upper limit EU 0
Level 0
Run/Stop Run/Stop None RUN
AT Execute/Cancel OFF/AT-1/AT-2 None OFF During running
Set point 0
Set point lower lim it to Set point upper lim it
EU 0 Multi-SP
Set point 1
Set point lower lim it to Set point upper lim it
EU 0 Multi-SP
Set point 2
Set point lower lim it to Set point upper lim it
EU 0 Multi-SP
Set point 3
Set point lower lim it to Set point upper lim it
EU 0 Multi-SP
Alarm value 1 -1999 to 9999 EU 0
Alarm value 2 -1999 to 9999 EU 0
Alarm value 3 -1999 to 9999 EU 0
Proportional band 0.1 to 999.9 %FS 10.0
Integral time 0 to 3999 sec 233
Level 1
Derivative time 0 to 3999 sec 40
L
e
v
e
l
1
Cooling coefficient 0.01 to 99.99 None 1.00
At heating and
cooling control
Dead band -19.99 to 99.99 %FS 0.00
At heating and
cooling control
Position-proportional
dead band
0.1 to 10.0 % 2.0
At position-propor-
tional control
Manual reset value 0.0 to 100.0 % 50.0
Hysteresis (heat) 0.01 to 99.99 %FS 0.10
Hysteresis (cool) 0.01 to 99.99 %FS 0.10
At heating and
cooling control
Control period (heat) 1to99 sec 20
Control period (cool) 1to99 sec 20
At heating and
cooling control
Heater burnout 0.0 to 50.0 A 0.0
Heater burnout
detection
Remote/Local RMT/LCL None LCL
Communications
unit setting
SP mode RSP/LSP None LSP
SP ramp time unit M(Minutes) / H(Hours) None M
SP ramp set value 0 to 9999 EU 0
LBA detection time 0 to 9999 Sec 0
MV at stop -5.0 to 105.0 % 0.0
MV at PV error -5.0 to 105.0 % 0.0
MV upper limit MV lower limit + 0.1 to 105.0 % 105.0
Level 2
MV lower limit -5.0 to MV upper limit -0.1 % -5.0
MV change rate limit 0.0 to 100.0 %/sec 0.0
Input digital filter 0 to 9999 sec 0
Open/close hysteresis 0.1 to 20.0 % 0.8
Alarm 1 hysteresis 0.01 to 99.99 %FS 0.02
Alarm 2 hysteresis 0.01 to 99.99 %FS 0.02
Alarm 3 hysteresis 0.01 to 99.99 %FS 0.02
Input shift upper limit -199.9 to 999.9 °C/°F 0.0 Temperature input
Input shift lower limit -199.9 to 999.9 °C/°F 0.0 Temperature input
*1 During heat and cooling control, the lower limit becomes -105.0%.
During position-proportional control the setting becomes HOLD, OPEN or CLOS.
*2 During heat and cooling control, the setting range becomes 0.0 to 105.0%.
*3 During heat and cooling control, the setting range becomes -105.0 to 0.0%.
*
1
*
1
*
1
*
2
*
3
