Omron E5EK User Manual

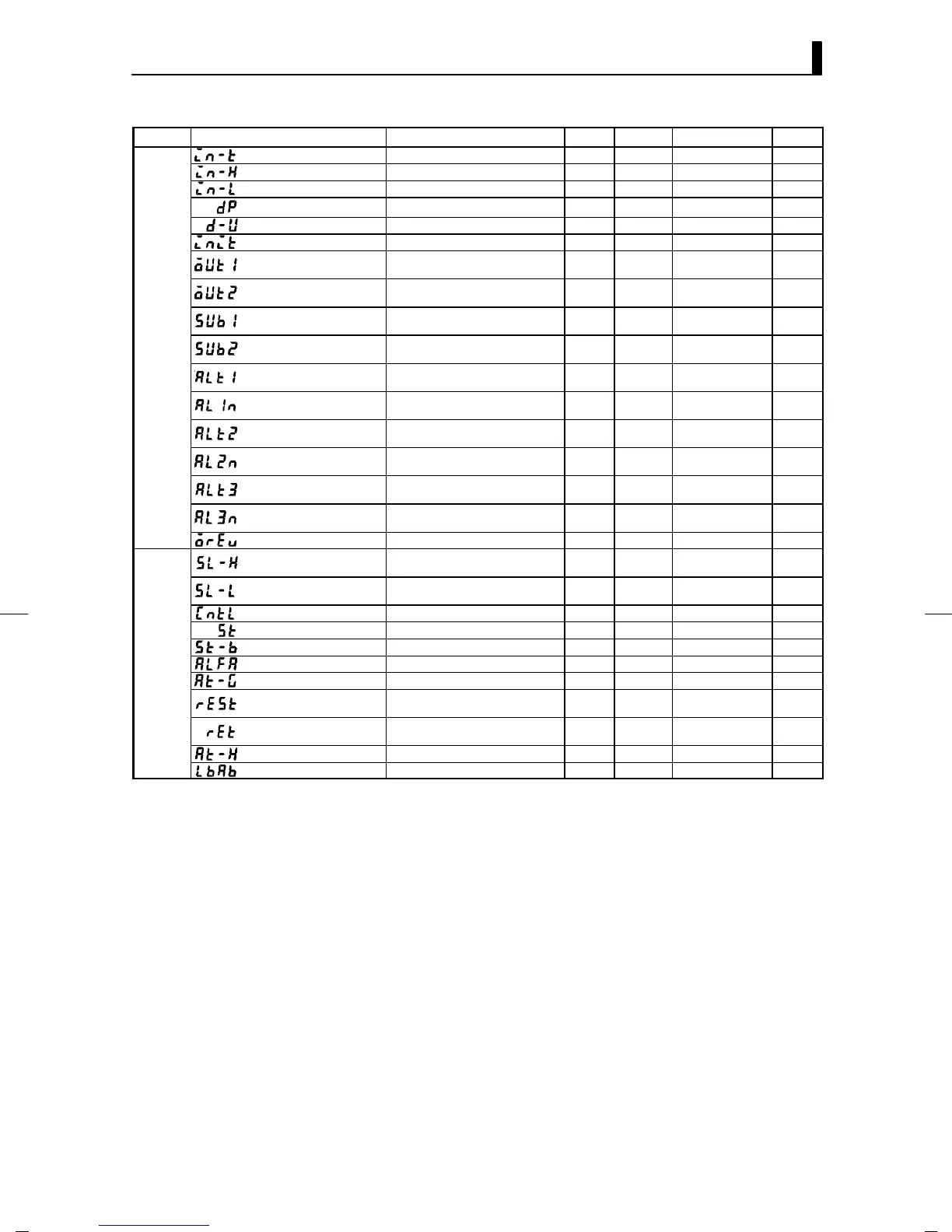

SETTING LIST
E5EK
A-- 9
Mode Parameter Name Setting Range Unit Defau lt Remarks Setting
Input type 0to21 None 2
Scaling upper limit Scaling lower limit +1 to 9999 EU -100 Analog input
Scaling lower limit -1999 to SP setting upper limit -0.1 EU 0 Analog input
Decimal point 0to3 None 0 Analog input
_C/_F selection _C/_F None _C Temperature input
Parameter initialize Yes /No None NO
Control output 1 assignment
Heat/Cool/Alarm 1/Alarm 2/Alarm 3
/HBA/LBA
None HEAT
Control output 2 assignment
Heat/Cool/Alarm 1/Alarm 2/Alarm 3
/HBA/LBA
None AL-1
Auxiliary output 1 assignment
Alarm 1/Alarm 2/Alarm 3/HBA/LBA/
S.ERR/E333/RSER
None AL-2
Setup
Auxiliary output 2 assignment
Alarm 1/Alarm 2/Alarm 3/HBA/
LBA/S.ERR/E333/RSER
None AL-3
Alarm 1 type 1to11 None 2
Output assignment
needed
Alarm 1 open in alarm N-O/N-C None N-O
Output assignment
needed
Alarm 2 type 1to11 None 2
Output assignment
needed
Alarm 2 open in alarm N-O/N-C None N-O
Output assignment
needed
Alarm 3 type 1to11 None 2
Output assignment
needed
Alarm 3 open in alarm N-O/N-C None N-O
Output assignment
needed
Direct/Reverse operation OR-R/OR-D None OR-R
Set point upper limit
Set point lower limit +1 to scaling
upper limit
None 1300
Set point lower limit
Scaling lower limit to Set point upper
limit -1
None -200
PID/ON/OFF PID / ON/OFF None PID
ST OFF/ON None OFF
E
ST stable range 0.1 to 999.9 °C/°F 15.0 ST=ON
Expan-
s
i
o
n
α 0.00 to 1.00 None 0.65
s
i
on
AT calculated gain 0.1 to 10.0 None 1.0
Standby sequence reset set-
ting method
0/1 None 0
Automatic return of display
mode
0to99 Sec 0
AT hysteresis 0.1to9.9 %FS 0.2
LBA detection width 0.0 to 999.9 %FS 0.2
*4 When temperature input is selected, the sensor range selected in the “input type” parameter (setup mode) correspond s to the
scaling u pper and lower limit value.
*
4
*
4
*
4
*
2
*
2
*
4
