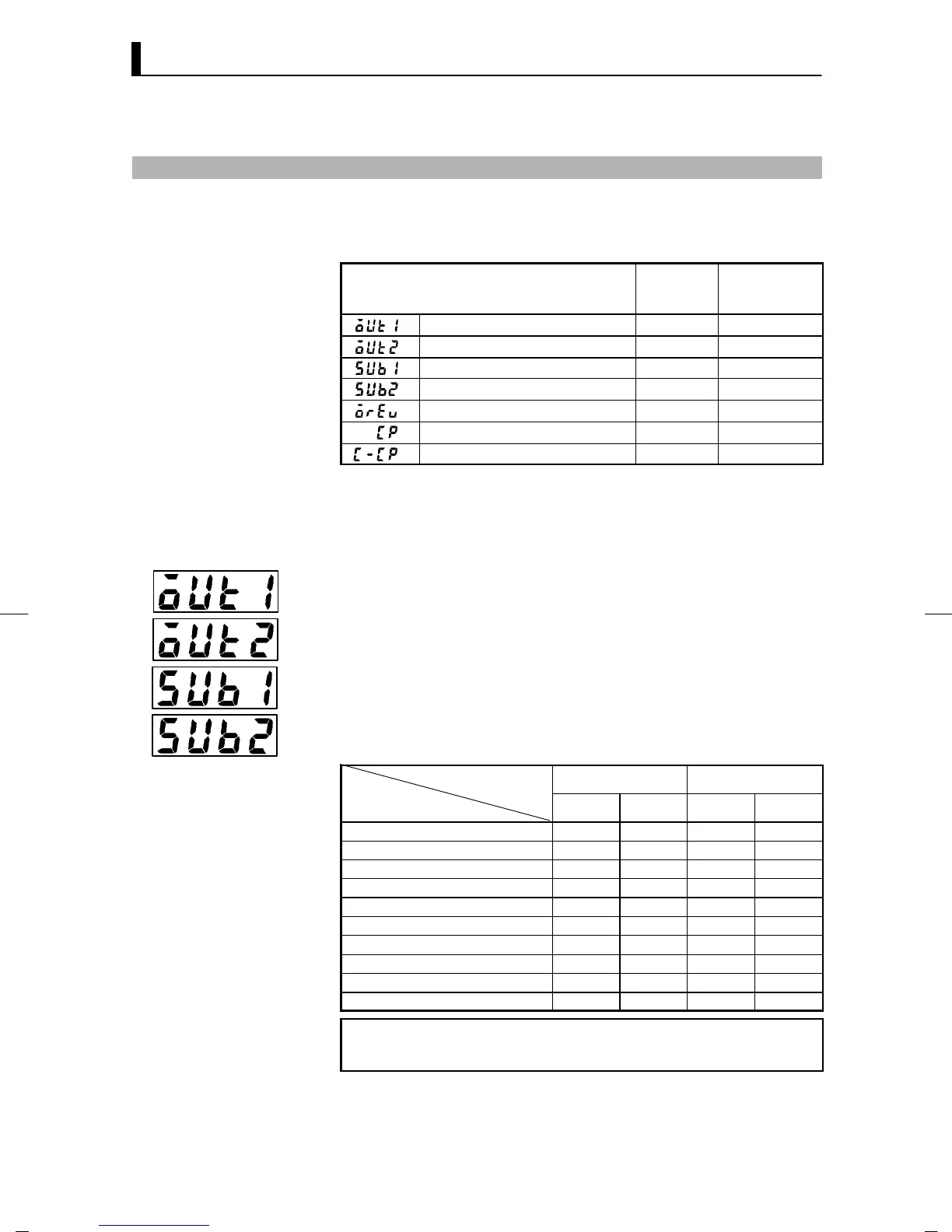

3.3 Setting Output Specifications
Some output specifications are different according to controller type,
standard or position-proportional. The following table summarizes
which output-related parameter settings are supported.
Parameter
Standard
Type
Position-
proportional
Type
Control output 1 assignment F
Control output 2 assignment F
Auxiliary output 1 assignment F F
Auxiliary output 2 assignment F F
Direct/reverse operation F F
Control period (heat) F
Control period (cool) F
(F Indicates that an output specification is supported.)
JOutput assignments
Output assignments are described according to controller type.
• Ten output are supported :
control output (heat)
control output (cool)
alarm outputs 1 to 3
HBA
LBA, and
error 1 (input error)
error 2 (A/D converter error)
error 3 (RSP input error).
These functions are assigned to control outputs 1 and 2, and auxil-
iary output 1 and 2.
• Restrictions on assignment destination are placed on some of the out-
puts. The following table shows where outputs may be assigned to.
Assignment
D
e
s
t
i
n
a
t
i
o
n
Control Output Auxiliary Output
D
es
t
i
na
t
i
on
Output Function
1 2 1 2
Control output (heat) F F
Control output (cool) F F
Alarm 1 F F F F
Alarm 2 F F F F
Alarm 3 F F F F
HBA F F F F
LBA F F F F
Error 1; Input error F F
Error 2; A/D converter error F F
Error 3; RSP input error F F
With control output (cool), the conditions for switching from standard control
to heating and cooling control are reached when the output function is assigned
at the cooling side during heating and cooling control.
In other words, heati ng and cooling control is carried out when con-
trol output (cool) is assigned, and standard control is carried out
when output is not assigned. For details on heating and cooling con-
trol, see 4.1 Selecting the Control Method (page 4 -2).
F Standard type
