APPENDIX
E5EK
A-- 10

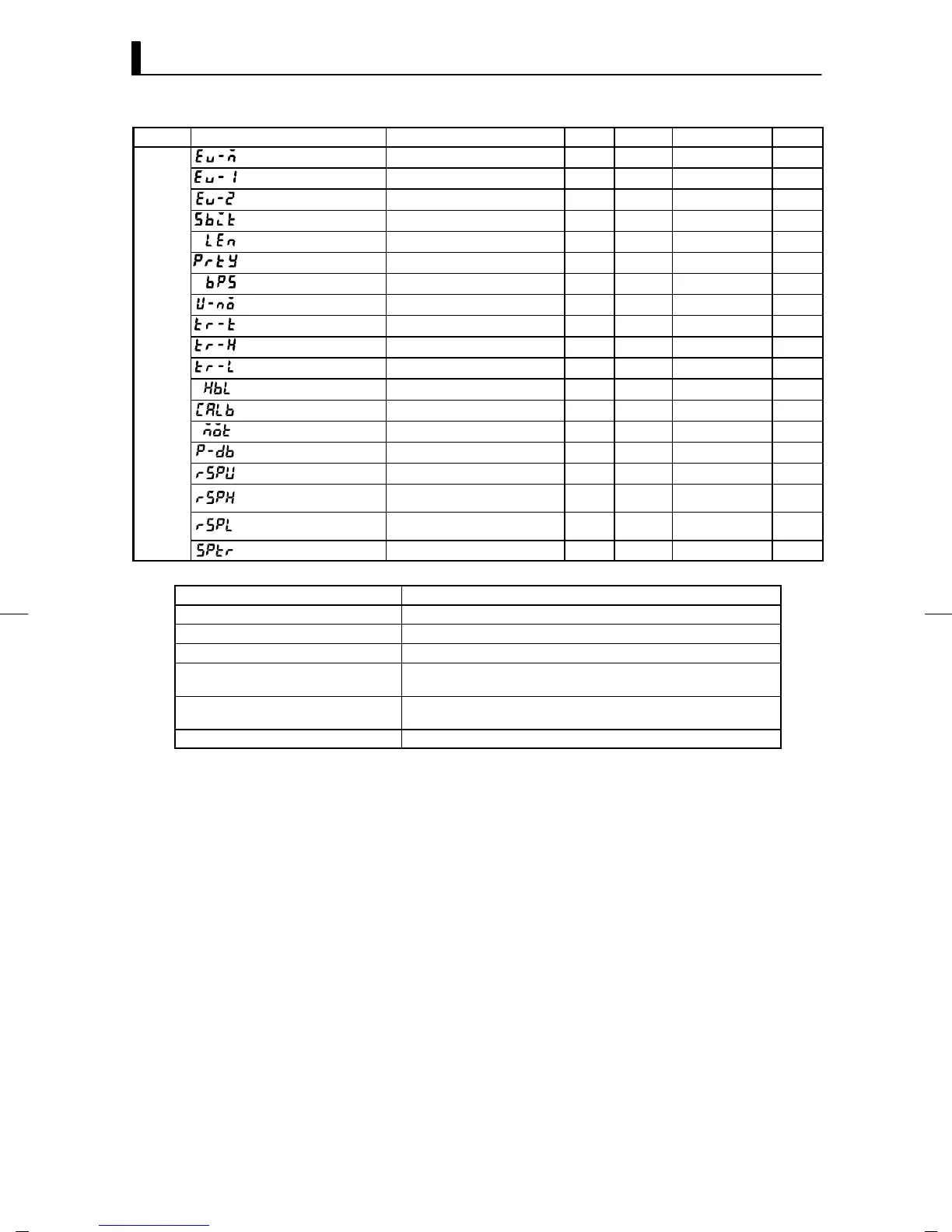

Mode Parameter Name Setting Range Unit Defau lt Remarks Setting
Multi-SP function 0to2 None 0
Event input assignment 1 NON/STOP/RMT/MAN/RSP None NON
Event input assignment 2 NON/STOP/RMT/MAN/RSP None NON
Communication stop bit 1/2 bits 2
Communication data length 7/8 bits 7
Communication parity None/Even/Odd None EVEN
Communication baud rate 1.2/2.4/4.8/9.6/19.2 kbps 9.6
Communication unit No. 0to99 None 0
Transfer output type SP/SP-M/PV/O/C-O/V-M None SP
O
p
t
i
o
n
Transfer output upper limit *5 *5 *5
O
p
t
i
on
Transfer output lower limi t *5 *5 *5
HBA latch ON/OFF None OFF
Motor calibration ON/OFF None OFF
Travel time 1to999 Sec 1
PV dead band 0 to 9999 EU 0
Remote SP enable ON/OFF None OFF
Remote SP upper limit
SP setting lower limit to SP setting
upper limit
EU 1300
Remote SP lower limit
SP setting lower limit to SP setting
upper limit
EU -200
SP tracking ON/OFF None OFF
*5 Set the transfer output type parameter according to the following table.
Transfer Output Type Transfer Output Lower Limit to Transfer Output Upper Limit
SP :Set point Set point lower limit to Set point upper limit
SP-M :Set point during SP ramp Set point lower limit to Set point upper limit
PV :Process value Scaling lower limit to scaling upper limit
O :Manipulated variable
(heat)
-5.0 to 105.0%
C-O :Manipulated variable
(cool)
0.0 to 105.0%
V-M :Value opening -10.0 to 110.0%
D Default : SP
D The output ranges of the SP setting, set point or process value when temperature input is selected are the ranges sup-
ported by the selected sensor.
D When the heating side manipulated variable or cooling side manipulated variable is selected, the transfer output lower limit
in a heating and cooling control becomes “0.0”.
