Omron E5EK User Manual

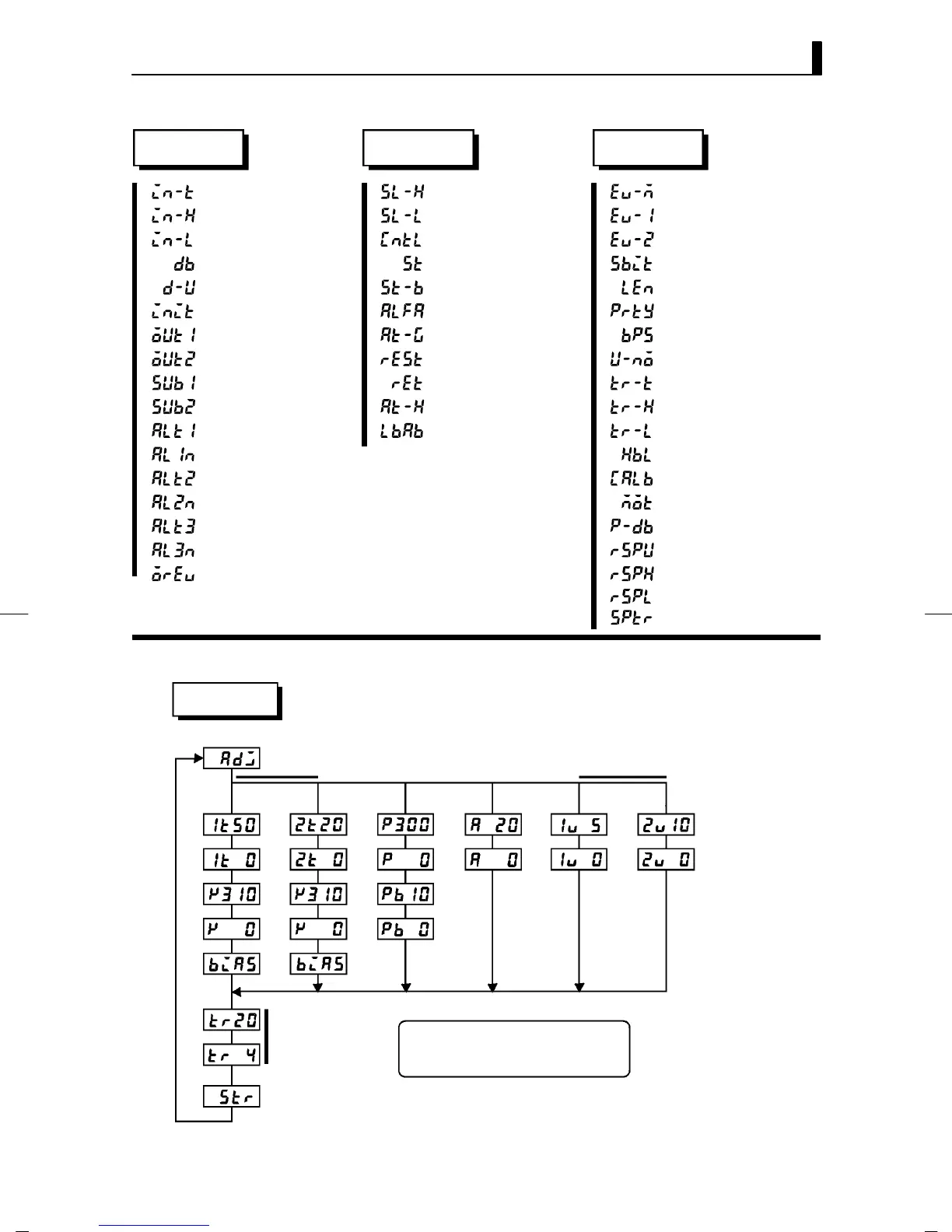

PARAMETER OPERATIONS LIST
E5EK
A-- 13
Setup mode
Expansion
mode
Option mode
Input type Set point upper limit Multi-SP function
Scaling upper limit Set point lower limit Event input assignment 1
Scaling lower limit PID / ON/OFF Event input assignment 2
Decimal point ST Communication stop bit
_C/_F selection ST stable range Communication data length
Parameter initialize α Communication parity
Control output 1 assignment AT calculated gain Communication baud rate
Control output 2 assignment
Standby sequence reset method
Communication unit No.
Auxiliary output 1 assignment
Automatic return of displ ay mode
Transfer output type
Auxiliary output 2 assignment
AT hysteresis Transfer output upper limit
Alarm 1 type LBA detection width Transfer output lower limit
Alarm 1 open in alarm HBA latch
Alarm 2 type Motor calibration
Alarm 2 open in alarm Travel time
Alarm 3 type PV dead band
Alarm 3 open in alarm Remote SP enable
Direct/Reverse operation Remote SP upper limit
Remote SP lower limit
SP tracking
Calibration
mode
Thermocouple
Platinum resistance
thermometer
Current input
Voltage input
Thermocouple 1 Thermocouple 2
Transfer
output
Data save
0to5V 1to5V 0to10V
Only when transfer output
function is supported
Thermocouple 1 : K1/J1/L1/E/N/W/PLII
Thermocouple 2 : K2/J2/L2/R/S/B/T/U
Platinum resis tance
thermometer : JPt100/Pt100
