CHAPTER 4 APPLIED OPERATIO N
E5EK
4--18
• If “input type”, “scaling upper/lower limit”, “SP limitter upper/lower
limit”, or “°C/°F selection” parameters is changed when “set point”,
“set point during SP ramp”, or “process value” parameter is selected,
each of the “transfer output upper limit” and “transfer output lower
limit” parameters are forcibly changed to their resp ective upper or
lower limit values.

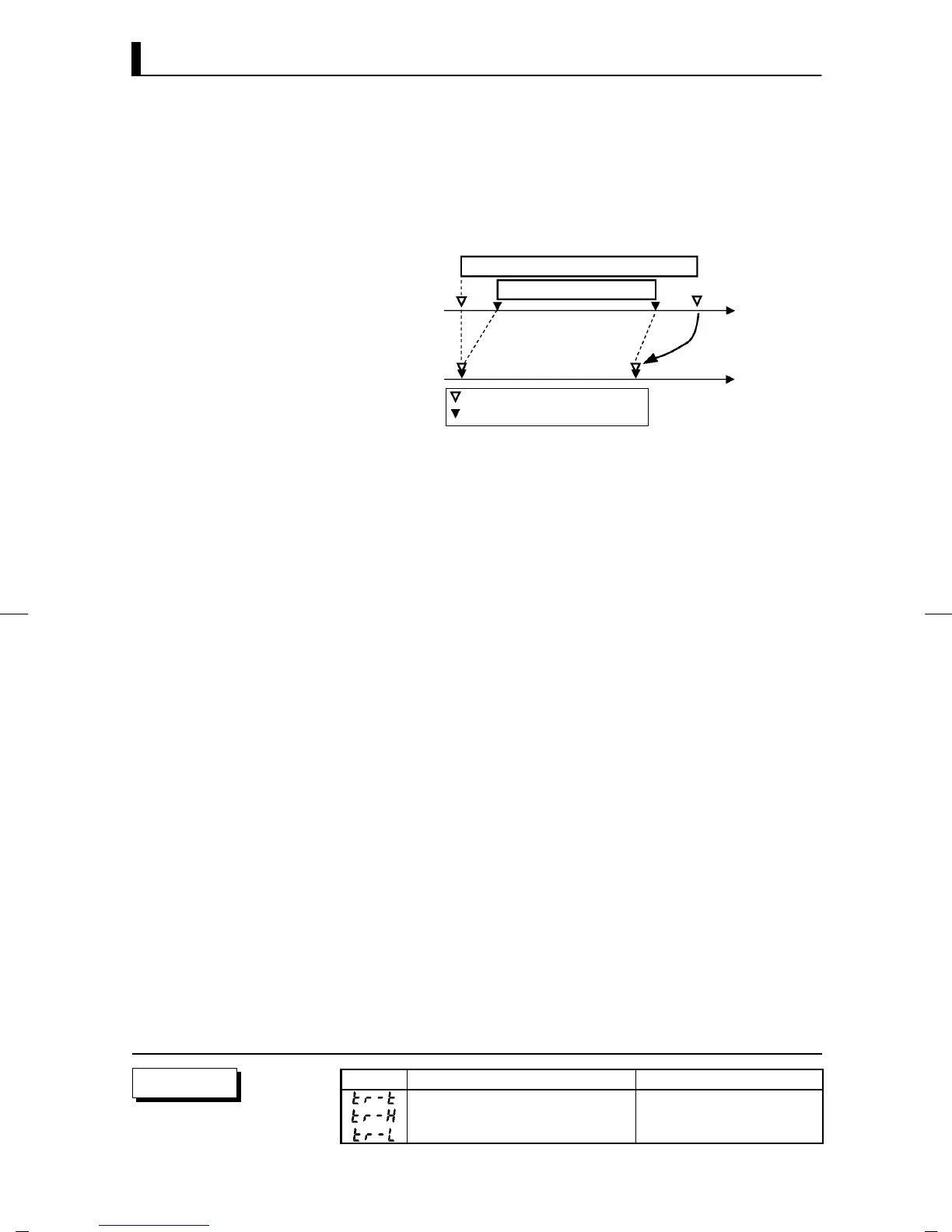

SP limitter
Limitter upper/lower limit v alues
Change value
Limitter upper limit
change value
Transfer type scaling upper/lower limi t values
Set point
Set point
Change upper limit
value A to B.
B
A
Transfer type scaling range
Symbol Parameter Name: Mode Application
Transfer output type : Option Transfer output designation
Transfer output upper limit : Option Transfer output scaling
Transfer output lower limit : Option Transfer output scaling
Parameters
