Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-68
NS Series Programming Manual
Address Settings
The host name, area type, and address are set in the Address Setting Dialog Box. Select PT memory
from the list of host names when specifying the PT internal memory. The area types that can be se-
lected depend on the model of host that is registered.
Select PT – Communication Setting to display the Comm. Setting Dialog Box and set the host name.

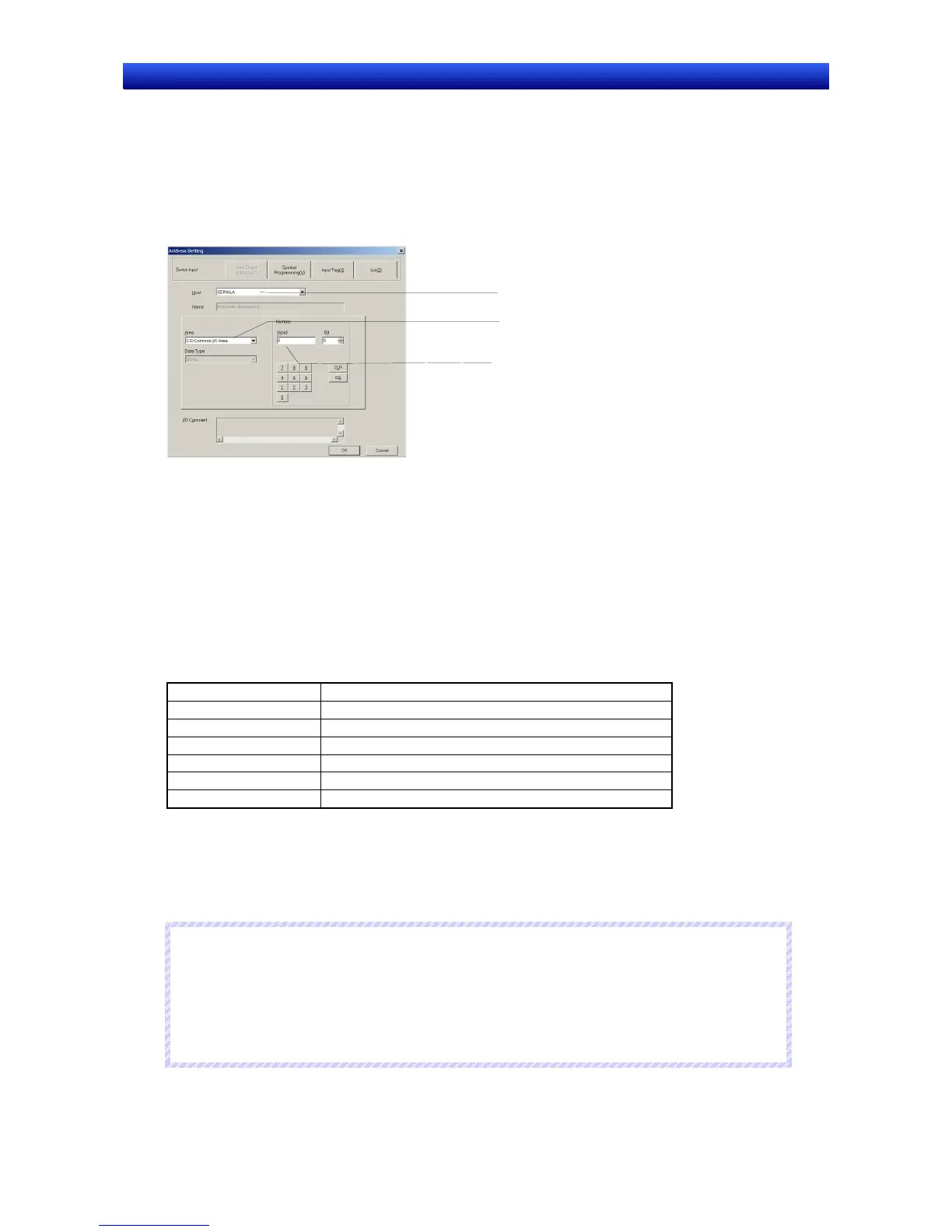

Example: Address Setting Dialog Box for communications with OMRON C-series PLCs
Enter the address.
Select the area type for the
specified host.
Select the pre-registered host
name or PT memory.
Host Name
Select the pre-registered host name or PT memory.
If PT memory is selected, the internal PT memory is accessed.
Area Type
Select the area type for the selected host name.
The area types that can be selected change depending on the selected host name.
If PT memory is selected under Host name, the internal memory areas outlined in the following table
can be specified.
Area Types when PT Memory Selected
Area type Details
$B Internal bit memory
$W Internal word memory
$SB System bit memory
$SW System word memory
$HB Internal holding bit memory
$HW Internal holding word memory
Inputting Addresses
Use the numeric buttons 0 to 9 below the input field to enter the address.
Press the CLR Button to clear the address and the BS Button to delete the last character in the ad-
dress.
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
The addresses that can be set depend on the functional object and the setting items.
For example, only bits can be set for functional objects, such as ON/OFF buttons or lamps, that
read the ON/OFF status of specified address bits.
Refer to Appendix 4 Address for Functional Objects.
♦
Indexes cannot be set in the Address Setting Dialog Box. Enter indexes directly.
To Next Page
