Section 2 NS Series Functions 2-9 Buttons
2-119
NS Series Programming Manual

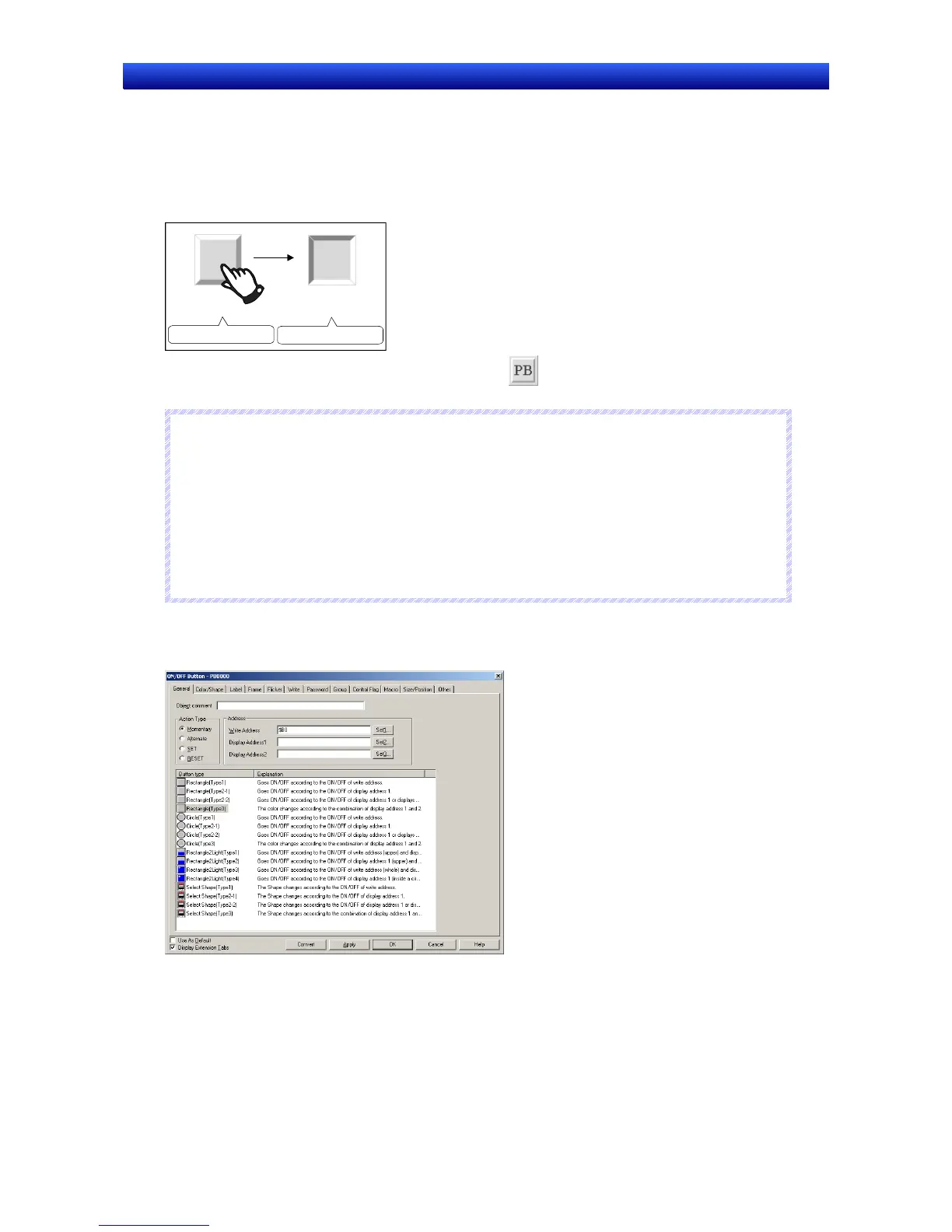

2-9 Buttons
2-9-1 ON/OFF Buttons
An ON/OFF Button is a functional object that turns the status of a specified address ON or OFF using
a touch switch input.
OFF ON
Status of address 0
Touch
Status of address 1
Select Functional Objects - ON/OFF Button or the icon in CX-Designer to create an ON/OFF
Button.
N
N
N
o
o
o
t
t
t
e
e
e
♦
When the display is switched to a screen with many objects, press the position where the ON/OFF
Button is located to enable input even if the object display on the screen has not been completed
yet. The processing does not start until the screen display has been completed, so a short time may
lapse before processing is executed.
♦
ON/OFF buttons can be changed to Multifunction Objects.
If changed to a Multifunction Object, the button can be changed to a lamp or multiple functions can
be executed at once when the button is pressed.
Refer to 2-11 Multifunction Objects for information on converting to a Multifunction Object.
Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for ON/OFF Buttons.
General: Sets the address, action type, and other basic operations.
Color/shape: Sets the button display color and shape.
Label: Sets the label display.
Frame: Sets the button frame display.
Flicker: Sets the flicker display. (See note.)
To Next Page
