Section 2 NS Series Functions 2-13 Display
2-282
NS Series Programming Manual

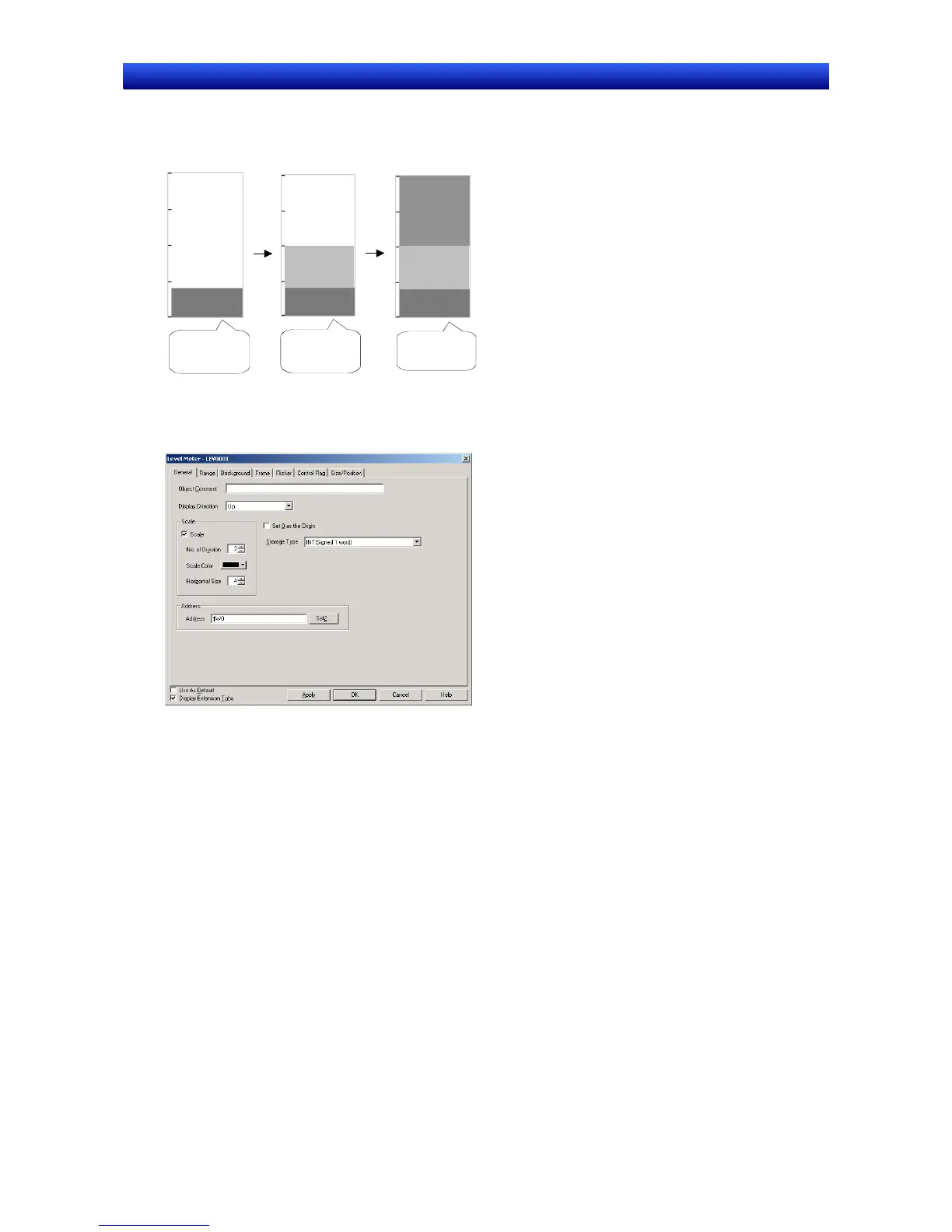

2-13-3 Level Meters
Level Meter objects are functional objects that fill rectangular regions based on the contents of a
specified address. Ranges can be specified for color differentiation.
100
50
20
0
Contents of the
address: 20
Contents of the
address: 50
Contents of the
address: 100
Settings for Functional Object Properties
This section describes the settings items in the Functional Object Properties Dialog Box for level dis-
play objects.
General: Sets the object comment, display direction, and scale.
Range: Sets the border (boundary value) and color for each range.
Background: Sets the object background color.
Frame: Sets the object frame display.
Flicker: Sets the flicker display. (See note.)
Control Flag: Sets display/no display of the object. (See note.)
Size/Position: Sets the object size and position. (See note.)
Note: These tabs are displayed when the Display Extension Tabs Option is selected.
