Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-94
NS Series Programming Manual

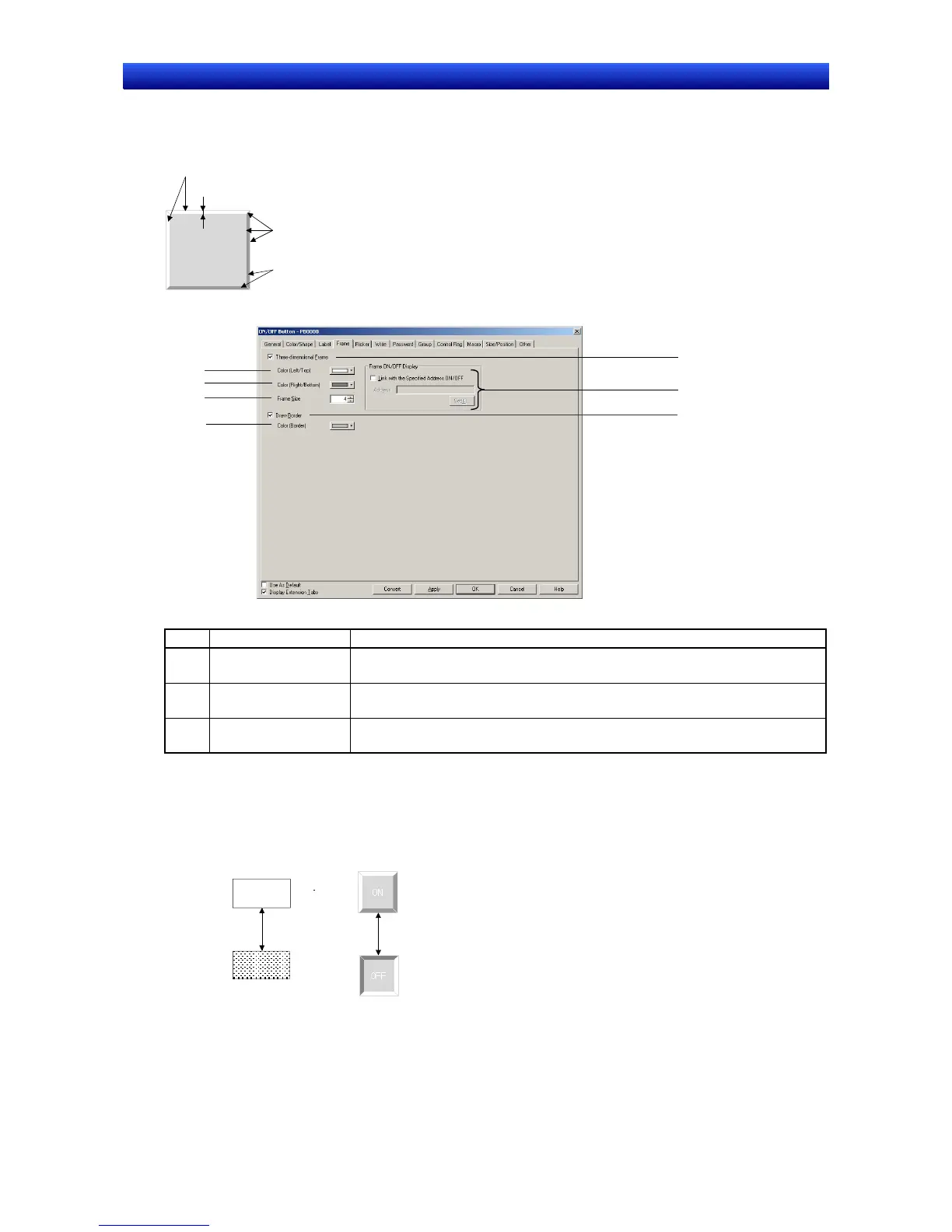

2-8-12 Frames
The color and size of buttons, lamps, and other frames can be set. The frame settings are made on the
Frame Tab Page of the Functional Object Properties Dialog Box.
1. Color (left and top)
3. Frame size (border not included)
4. Border color (1 dot)
2. Color (right and bottom)
Note: The numbers in the above diagram correspond to the descriptions below.
1
2
3
4
5
7
6
No. Setting Details
5 Three-dimensional
Frame
Select Three-dimensional Frame to add a frame to the object. De-select
Three-dimensional Frame to not have a frame for the object.
6 Draw border
Select Draw border to draw a border on the frame. De-select this option if no
border is to be drawn.
7 Frame ON/OFF dis-
play
Select Link with address ON - OFF to have the frame raised or depressed,
depending on whether the specified address is ON (1) or OFF(0).
Frame ON/OFF Display
• Link with Address ON/OFF
The button shape is updated when the specified address turns ON (1) or OFF (0).
Select the Link with address ON/OFF and click the Set Button to make the address settings.
0
1
Address Raised
Depressed

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
