Omron NS Programming Manual

Section 2 NS Series Functions 2-13 Display
2-286
NS Series Programming Manual

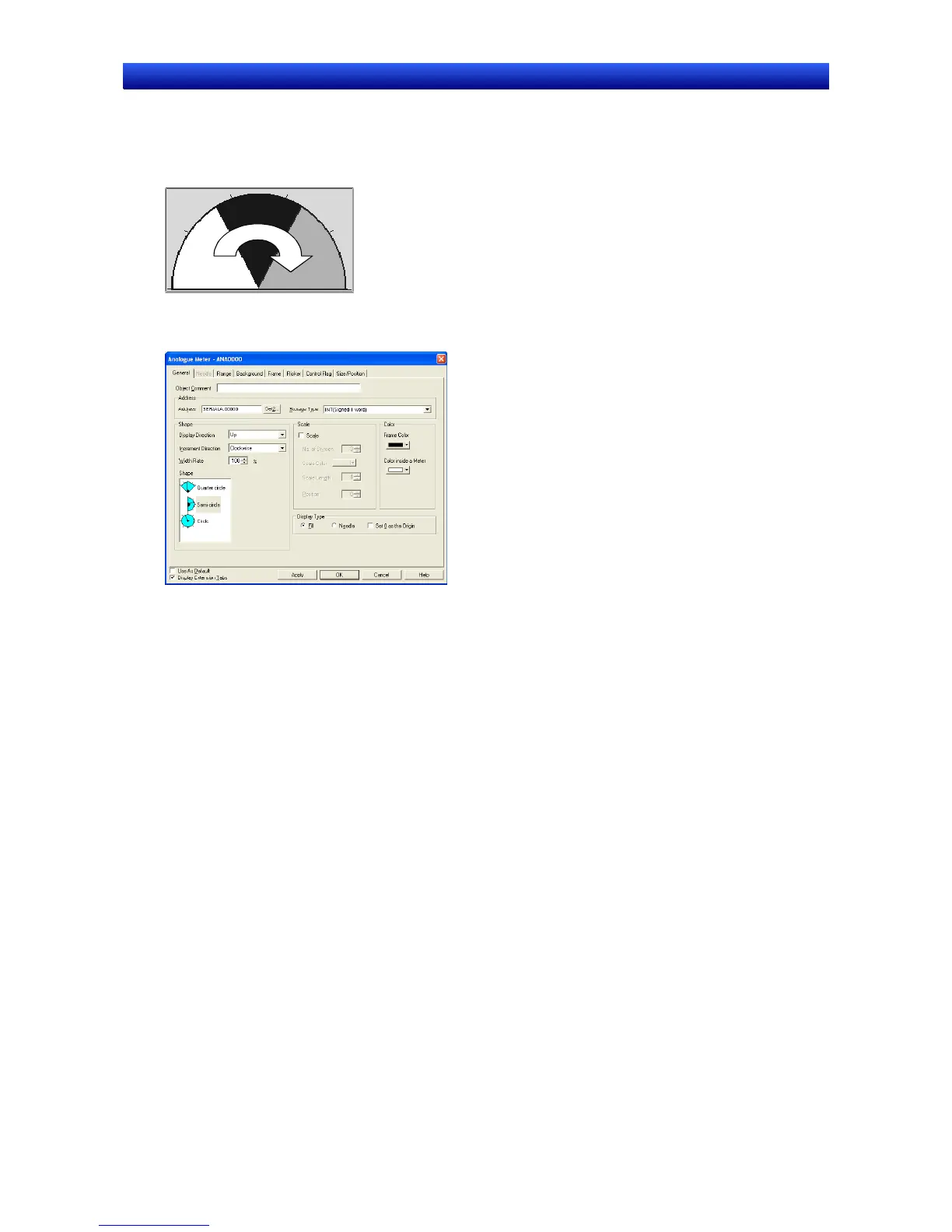

2-13-4 Analogue Meter
Analogue meters are objects that are displayed as quarter-circle, semi-circle, or circle graphs. The dis-
play direction (up, down, left, or right) and incremental direction for the meter (clockwise or
anti-clockwise) can be set.
Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for analogue meters.
General: Sets the address and display type.
Needle: Sets the needle type and style. (See note 1.)
Range: Sets the border (boundary value) and color for each range.
Background: Sets the object background color.
Frame: Sets the analogue meter frame display.
Flicker: Sets the flicker display. (See note 2.)
Control Flag: Sets display/no display for the analogue meter. (See note 2.)
Size/Position: Sets the object size and position. (See note 2.)
Note 1: Can be set only when Needle is selected as the display method on the General Tab Page.
Note 2: These tabs are displayed when the Display Extension Tabs Option is selected.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
