Omron NS Programming Manual

Section 2 NS Series Functions 2-16 Broken-line Graphs
2-365
NS Series Programming Manual

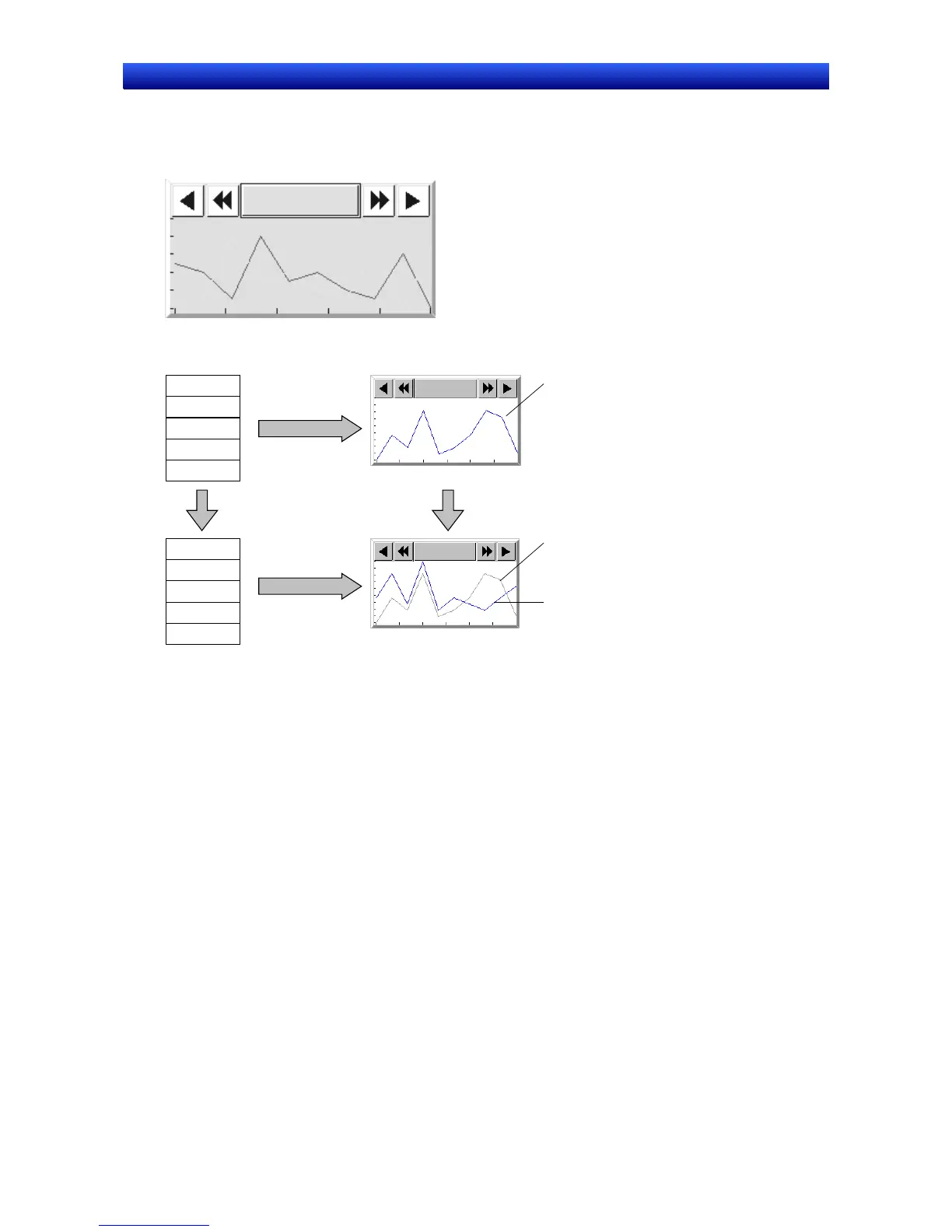

2-16 Broken-line Graphs
Broken-line graphs are objects that display in graphs current values for multiple consecutive addresses.
Up to 256 line graphs can be displayed in one broken-line graph display region.
The Batch Read and the History functions can be used when a broken-line graph group is registered.
Batch Read Trigger
$B0: OFF
→
ON
Batch Read Trigger
$B0: OFF
→
ON
Displays a graph of
the values when
$B0 went ON.
Previous graph
display
Displays a graph of
the values when
$B0 went ON,
which overlaps the
previous graph.
W00
W120
W210
W340
F
W020
W140
W215
W350
F
Start address: $W0

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
