Section 2 NS Series Functions 2-17 Data Blocks
2-400
NS Series Programming Manual
2-17-3 Using Data Blocks
This section explains how to use a data block table.
Using Data Block Tables

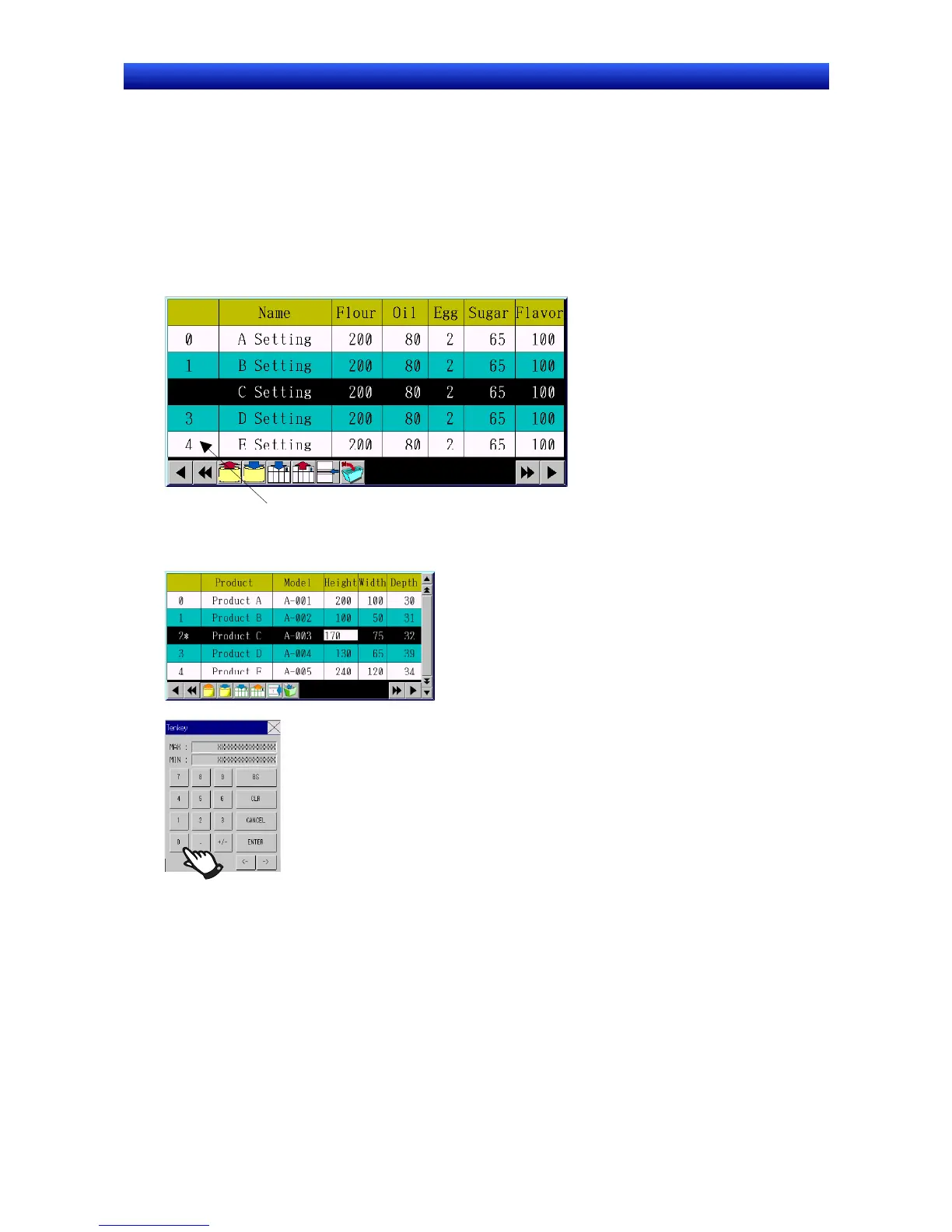

Selecting a Record on a Data Block Table
Click the record number to select record from the data block table. The record numbers are automati-
cally displayed in the data block table.
The selected record is displayed in reverse video and “*” is added to the record number.
Record numbers are automatically displayed.
Inputting Value in a Data Block Table
The user can change the value of a field in the data block table.
Touch field for which you want to change the value. The keyboard or keypad will be displayed. Then,
change the value.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
