Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-87
NS Series Programming Manual
No. Setting Details
1 Tile background Select this option to tile the background. (Selected in default settings.) Deselect
this option to leave the background transparent.
N
N
N
o
o
o
t
t
t
e
e
e
♦
If an indirect reference of color is set, set a color code between 0 and FF to the address.
If a value other than 0 to FF is set as the address, the display color will be invalid.

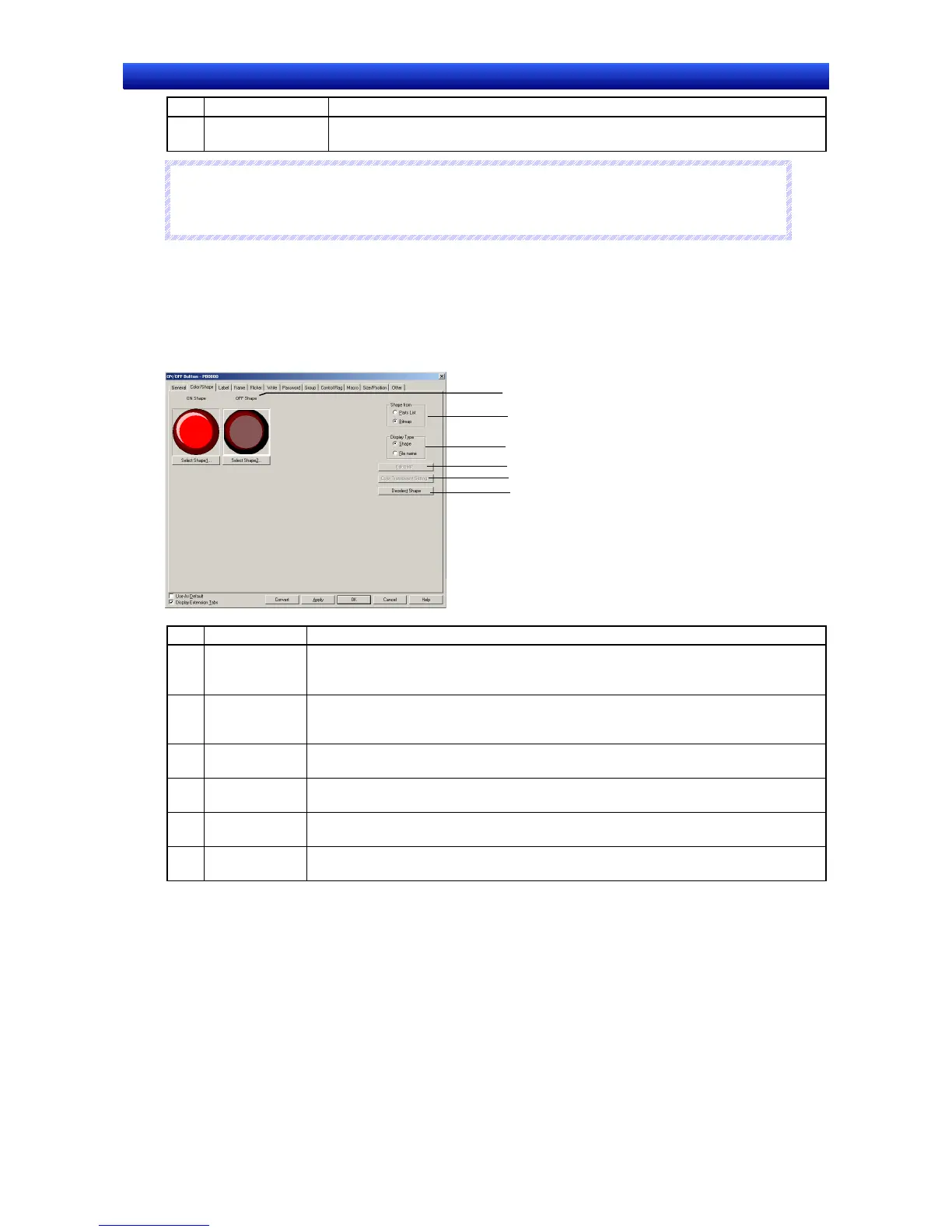

2-8-9 Selecting Shape (Color/Shape Tab)
If a shape can be specified for the selected lamp or button functional object, the shape displayed on
the Color/shape Tab Page can be selected. Click the Select Button to select from a variety of shape
types.
For some shape types, a pair of ON and OFF shapes can be set.
2
3
4
5
6
1
No. Setting Details
1 Selected
image display
area
The image or file name of the shape selected in 2, above, will be displayed.
2 Shape from If Parts List is selected and a Select Shape Button is clicked, the Select Shape Dialog
Box will be displayed. If
Bitmap is selected and a shape specification button is clicked,
the Select File Dialog Box will be displayed.
3 Display Type If Shape is selected, an image of the selected shape will be displayed. If File name is
selected, the file name of the selected shape will be displayed.
4 Edit BMP If the displayed BMP or JPEG image is selected and the Edit Button is clicked, the
image editor will start and editing will be enabled.
5 Color Trans-
parent Setting
Click this button to display the Transparent Color Setting Dialog Box and enable
setting transparent colors for bitmaps.
6 Deselect
shape
Click this button to cancel the selection of a shape.
To Next Page
