When a video image is captured, a file with same name as the captured image file and an extension
of .mng will be created in the /LOG/Capture folder in the Memory Card directory. These files are
used to manage numbers for file names. Do not edit or delete these files.
3-12 Function Key Settings (NS15 Only)
Key status addresses can be set for NS15 function keys F1, F2, and F3.
A key status address can be set as a project common setting (system setting). Settings can be made
separately for each screen or sheet. Function keys cannot, however, be used in a pop-up window.
N
N
N
o
o
o
t
t
t
e
e
e
♦
A key status address displayed on the PT screen can be set as only one of the following: project common
setting, a sheet setting, or a screen setting. Application is determined by th following order of priority.
High priority
Low priority

Screen setting

Sheet setting (farthest in back)
•
•
•

Sheet setting (farthest in front)

Project common settings

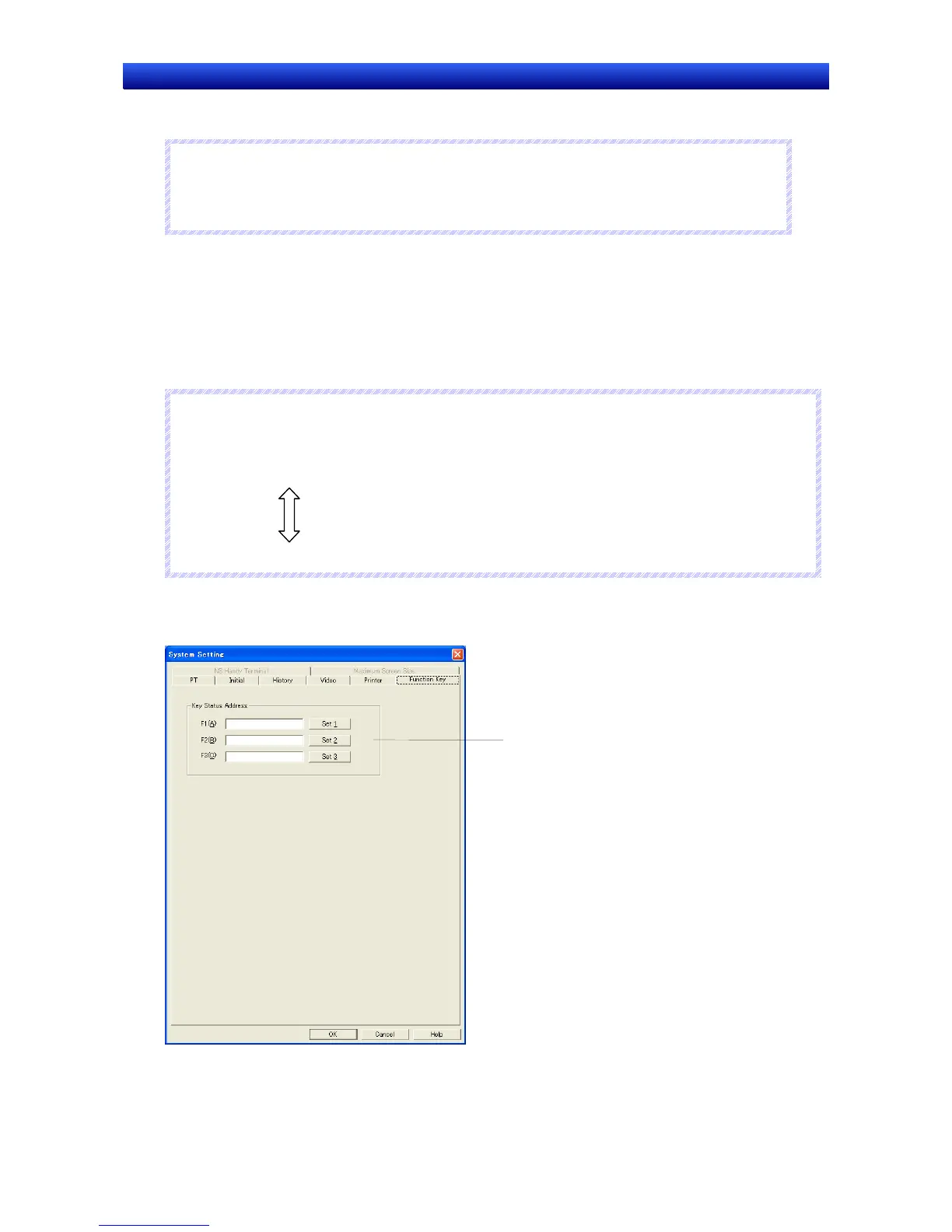

Key Status Address Setting Properties
Select System Setting from the PT Menu to display the System Setting Dialog Box. Then select the
Function Key Tab to display the Key Status Address Setting Dialog Box.
