Section 2 NS Series Functions 2-15 Data Logs
2-336
NS Series Programming Manual

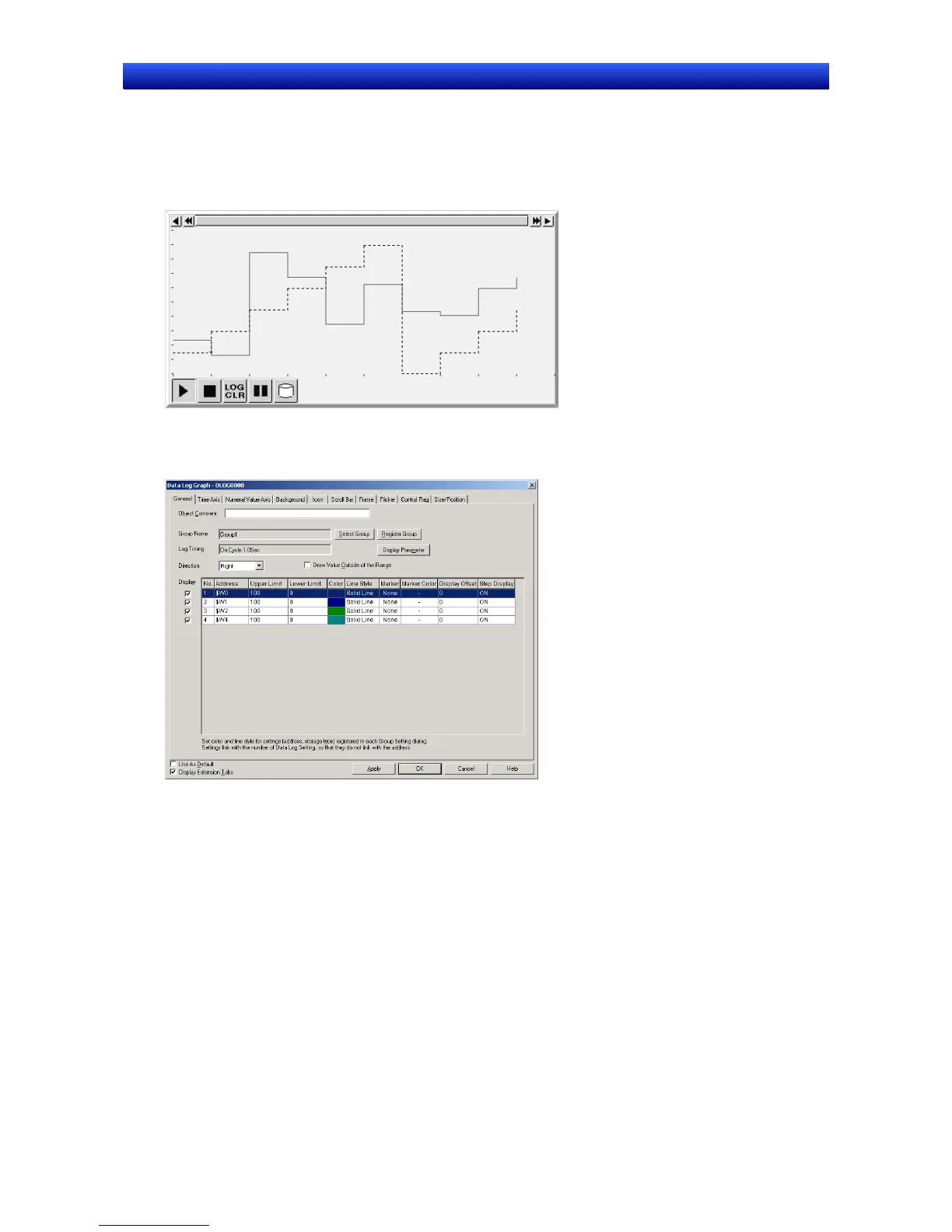

2-15-2 Data Log Graphs
Data log graphs are objects that display in graph format the registered data contained at registered
data group addresses.
The general position of the current graph in relation to the overall data can be checked using the scroll
bar to the top of the graph.
Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for data log graphs.
General: Sets the data log group and line parameters to be displayed.
Time Axis: Makes settings related to the data log graph’s time axis.
Numeral Value
Axis:
Makes settings related to the data log graph’s numeral value axis.
Background: Sets the base color for data log graphs.
Icon: Selects the displayed icon used to manipulate data log graphs.
Scroll bar: Sets the scroll bar size and scroll width.
Frame: Sets the frame display for data log graphs.
Flicker: Sets the flicker display. (See note.)
Control flag: Sets display/no display and input enabled/disabled for data log graphs. (See note.)
Size/position: Sets the object size and position. (See note.)
Note: These tabs are displayed when Display Extension Tabs Option is selected.
