Section 2 NS Series Functions 2-13 Display
2-270
NS Series Programming Manual
2-13 Display
This section describes objects with display functions only. This includes text, bitmaps, level meters,
analogue meters, video displays, and consecutive line drawings.
2-13-1 Text
Text objects are functional objects used to display fixed character strings. Use text objects for screen ti-
tles, item names, and other character string displays that do not require any other particular function.

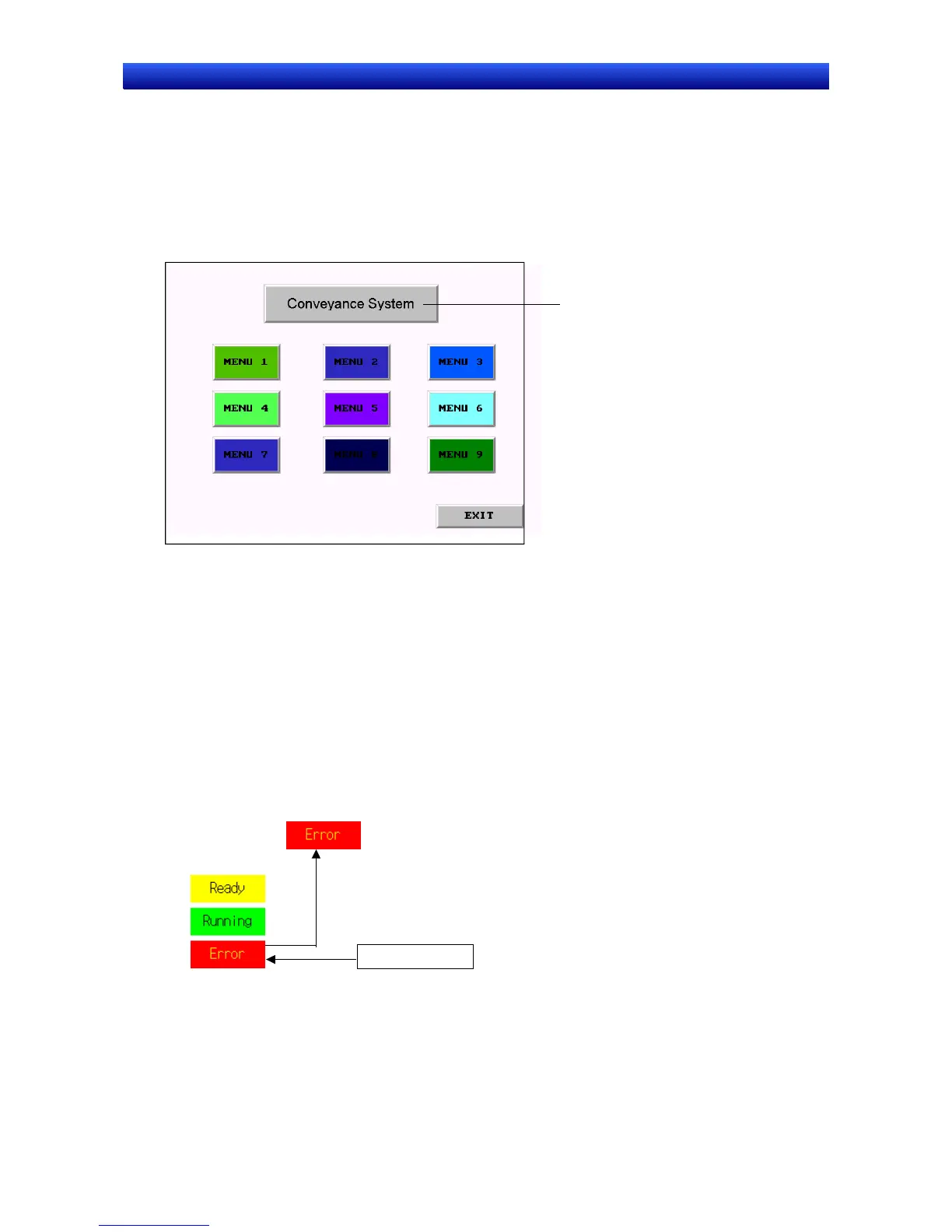

Screen title
(text object)
Display characters can also be changed. The following three methods can be used to change display
characters.
Indirect Specification from a Text File
A list of display strings can be stored in a text file and any string can be specified for display from that
list.
Indirect Specification from a String Table
Any string can be specified for display from the strings registered in the string table.
Message Display Function
This function registers a display string and background color for each status number set for the label.
Any set status can be specified for display.
Status 1
Status 2
Status 3
Address for
switching status.
HOST1: DM00001=2
Specify status 3.
Label object
Displays status 3.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
