Section 2 NS Series Functions 2-12 Display and Input Objects
2-269
NS Series Programming Manual

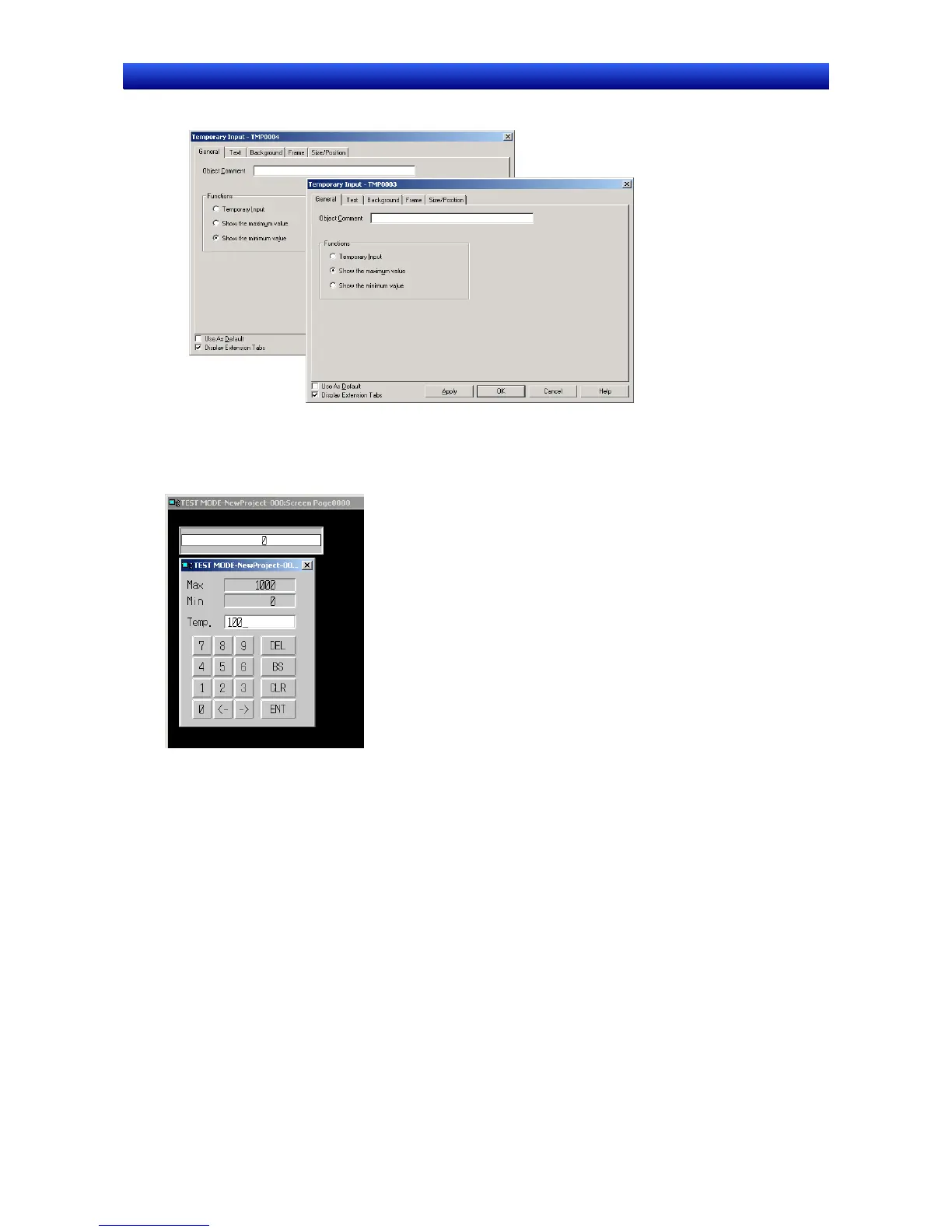

4. Double-click the objects to display the Properties Dialog Box. Select Show the maximum value and
Show the minimum value under Function on the General Tab Page.
5. Use a Command Button to create a keypad. Refer to Key Buttons under 2-9-3 Command Buttons
for details on how to create keypad command buttons. Set the destination to the Input Field with
Focus option under the properties settings for each Command Button.
6. Check the keypad operation using the test function.
When the focus is on the numeral display and input object, the input value is displayed in the tempo-
rary input object. Click the Command Button to overwrite the present values with the new input value.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
