Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-86
NS Series Programming Manual
1
2
3
4
5
6
7

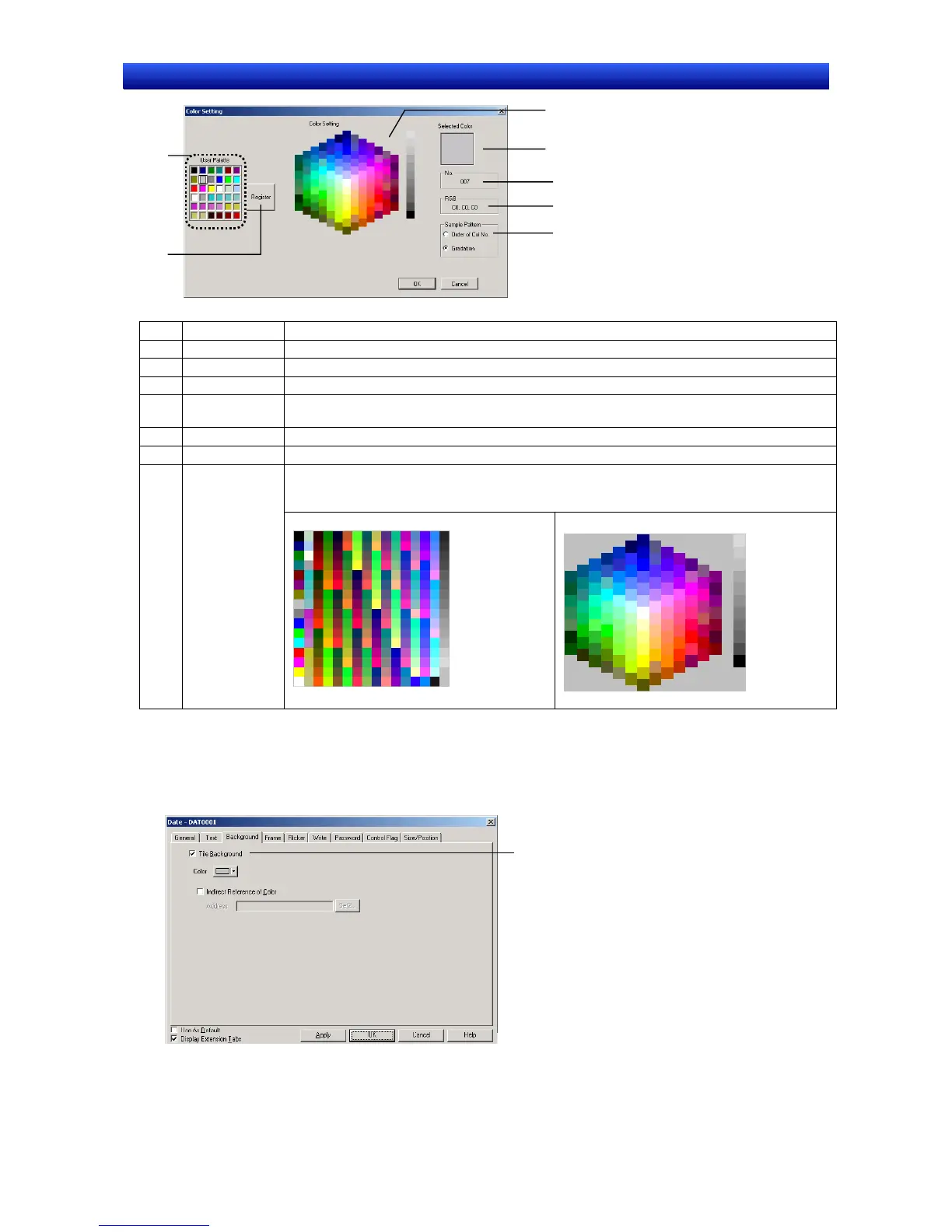

No. Setting Details
1 User Palette Displays the colors that have been registered as favorite colors in the color palette.
2 Register Registers the selected color in the color palette.
3 Color Setting Displays all of the available colors.
4
Selected
Color
Displays the selected color.
5 No. Displays the selected color’s color code.
6 RGB Displays the selected colors RGB values (in hexadecimal).
The Color Setting display can be set to Order of Col No. (color code matrix) or Gradation.
The Order of Col No. display shows all 256 colors. The Gradation display shows only 138
colors, but makes it easy to change the color slightly by selecting a nearby color tone.
7
Sample
Pattern
Order of Col No. (arranged by color code)
Gradation
2-8-8 Background
Set the tile color for the background of functional objects. Click the Color Button to tile the background
and select the background color from the Color Setting Dialog Box. The functional object’s background
color can also be set indirectly from an address by selecting the Indirect Reference of Color Option.
1

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
