2-14-2 Alarm/Event Display Objects
Alarm/event display objects are functional objects that display the current recorded alarm or event in
one line. The highest priority alarm or event will normally be displayed, but multiple alarms or events
can be displayed in order of highest priority if flowing text is specified.
Alarm 1
Alarm 2
•
•
•
•
Event A
Event B

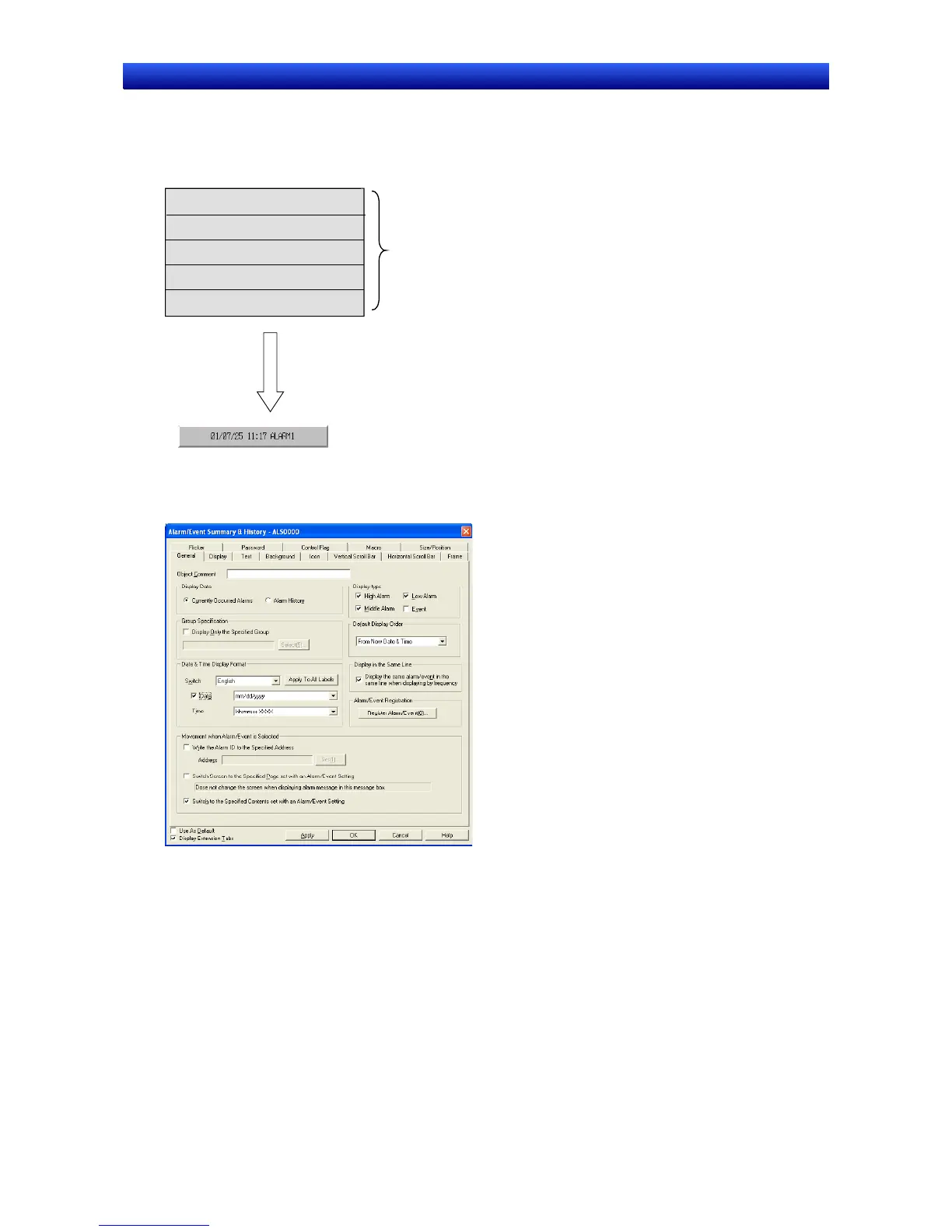

List of registered alarms/events
Displayed in order from highest priority
alarm/event.
Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for alarm/event dis-
play objects.
General: Sets the alarm/event display format.
Flowing string: Sets flowing string for the display character string.
Text: Sets the font and size for alarm/event display characters.
Background: Sets the background color for alarm/event display.
Frame: Sets the object frame display.
Flicker: Sets the flicker display. (See note.)
Password: Sets the password to be entered when the object is pressed. (See note.)
Control Flag: Sets enable/disable input and display/no display for objects. (See note.)
Macro: Sets the macros that will operate when the alarm/event display area is pressed. (See note.)
Size/Position: Sets the object size and position. (See note.)
Note: These tabs are displayed when Display Extension Tabs Option is selected.
