3. Click the Select Button to close the dialog box. An image of the selected bitmap file will be dis-
played to the right of the existing icon in the Details Dialog Box.
4. Click the OK Button to close the Details Dialog Box.
5. Click the OK Button to close the Alarm/event Settings Dialog Box.
6. Set the icon to be displayed on the Icon Tab of the Alarm/event Summary and History Object
Properties Dialog Box.

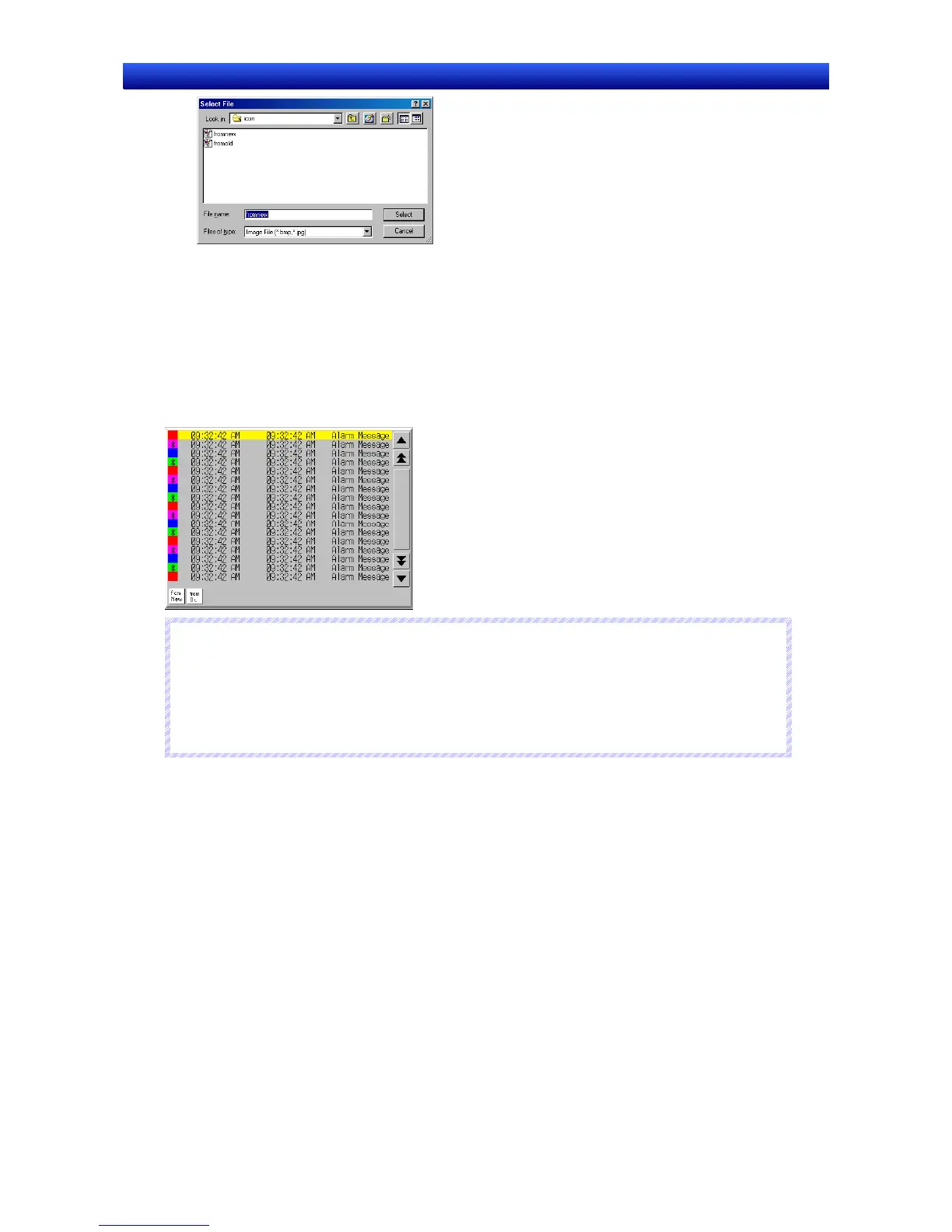

7. Click the OK Button to close the Properties Dialog Box. The icons to which bitmap files have been
specified will be displayed on the alarm/event summary and history object, as shown in the follow-
ing diagram.
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦ When the number of colors in the designated image file is a True Color number, it is automatically
reduced to 32,000.
♦ Specify a file name of up to 12 characters (8 file name characters and 3 file extension characters).
The following characters can be used in filenames.
Alphanumeric characters, underscore(_), dollar signs ($), and periods(.).
