Section 2 NS Series Functions 2-13 Display
2-283
NS Series Programming Manual

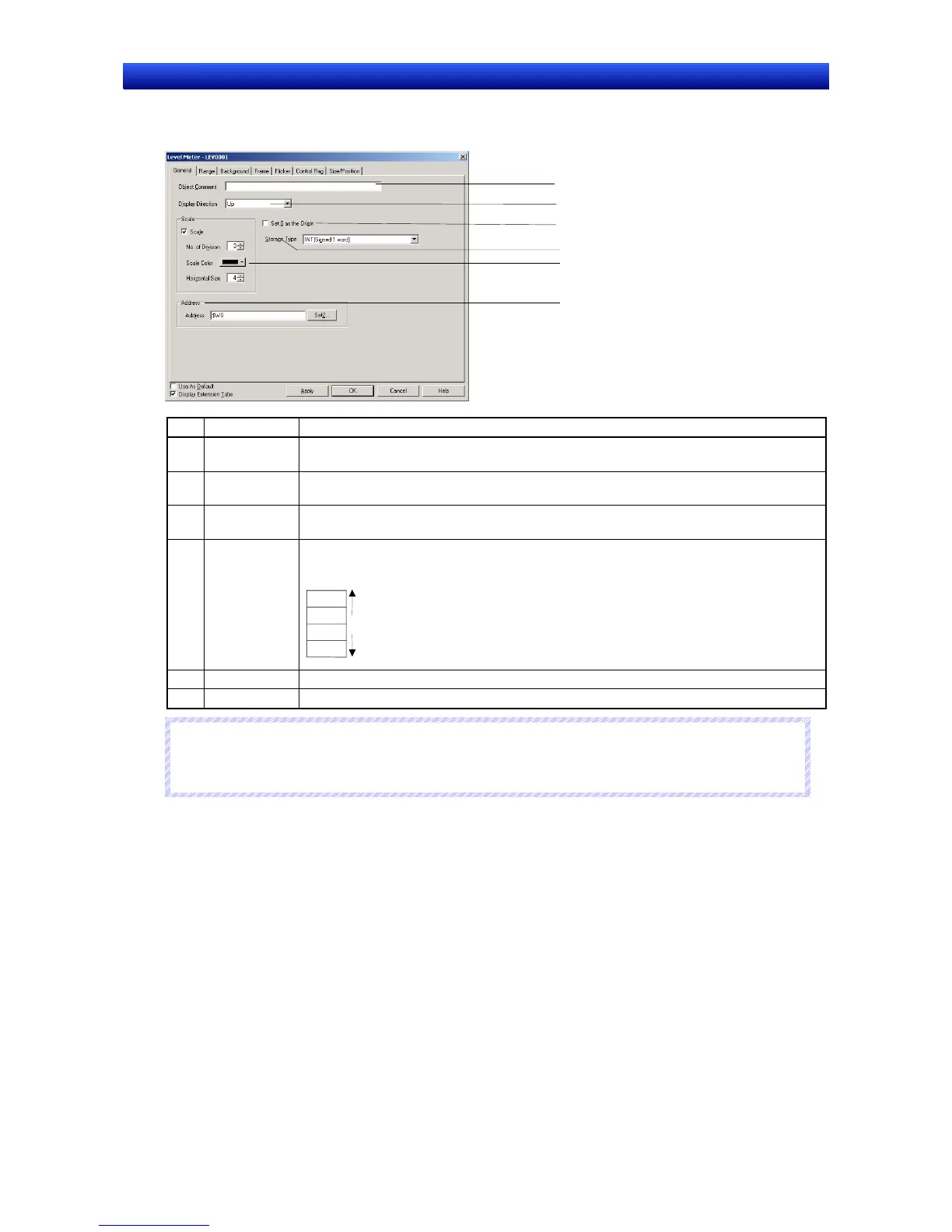

General Tab Page
Sets the values referenced for scale shape and level display and the comment.
1
2
4
5
3
6
No. Setting Details
1 Object
Comment
Sets an explanatory comment for the pasted object. (Up to 32 characters.)
2 Display
direction
Select a display direction of Up, Down, Left, or Right.
3 Scale Set whether to use a scale. If a scale is used, set the number of divisions (1 to 99), the
scale color, and the horizontal size (4 to 32).
4 Set 0 as
origin
If Set 0 as origin is selected, the border will be 0 and the level will be displayed in the
specified display for positive values and in the opposite direction for negative values.
Example: For Up display direction
0
Positive
Negative
5 Storage type Select and set the storage type from the pull-down list.
6 Address Sets the address to access the data. Only a word address can be set.
N
N
N
o
o
o
t
t
t
e
e
e
Sometimes the gaps between divisions will not be even, depending on the number of divisions and the
size of the object.
