Omron NS Programming Manual

Section 1 Overview 1-1 NS-series PT Operation
1-3
NS Series Programming Manual
Screen Data
The screen data displayed on PTs is created using CX-Designer on a personal computer. Screen data
is transferred to the PT by connecting the PT and the personal computer using an RS-232C cable, a
USB cable, or Ethernet (NS15-TX01S-V2, NS12-TS01(B)-V1/-V2, NS10-TV01(B)-V1/-V2,
NS8-TV@1(B)-V1/-V2, NS5-SQ01(B)-V1, NS5-SQ@1(B)-V2, NS5-TQ@1(B)-V2, or
NS5-MQ@1(B)-V2).

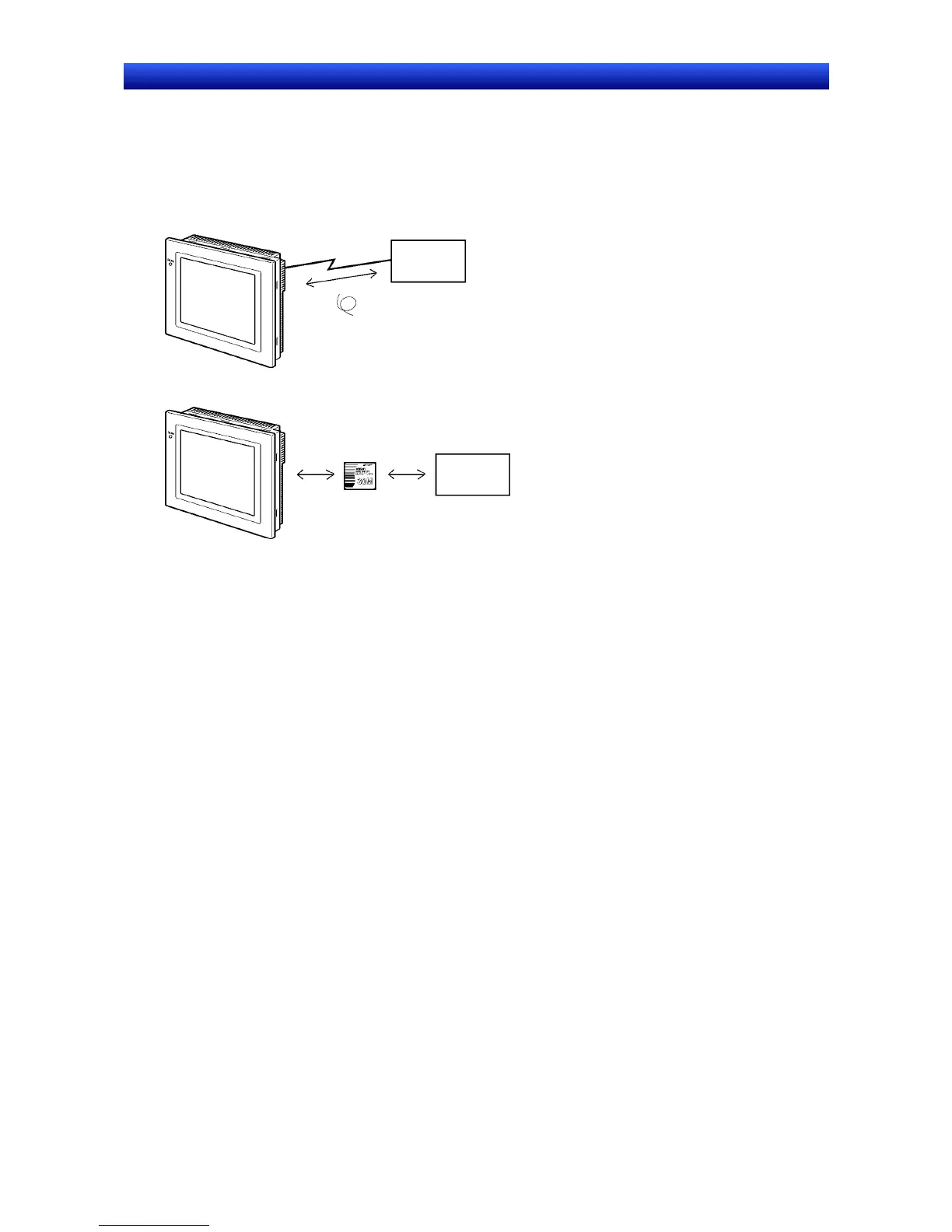

RS-232C, USB,
Ethernet
Screen data
Computer
(CX-Designer)
Create screen data.
Connect the computer to the PT only when
transferring screen data to or from the CX-
Designer.
Screen data can also be transferred using Memory Cards.
Memory Card
Computer
(CX-Designer)

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
