Section 2 NS Series Functions 2-9 Buttons
2-122
NS Series Programming Manual

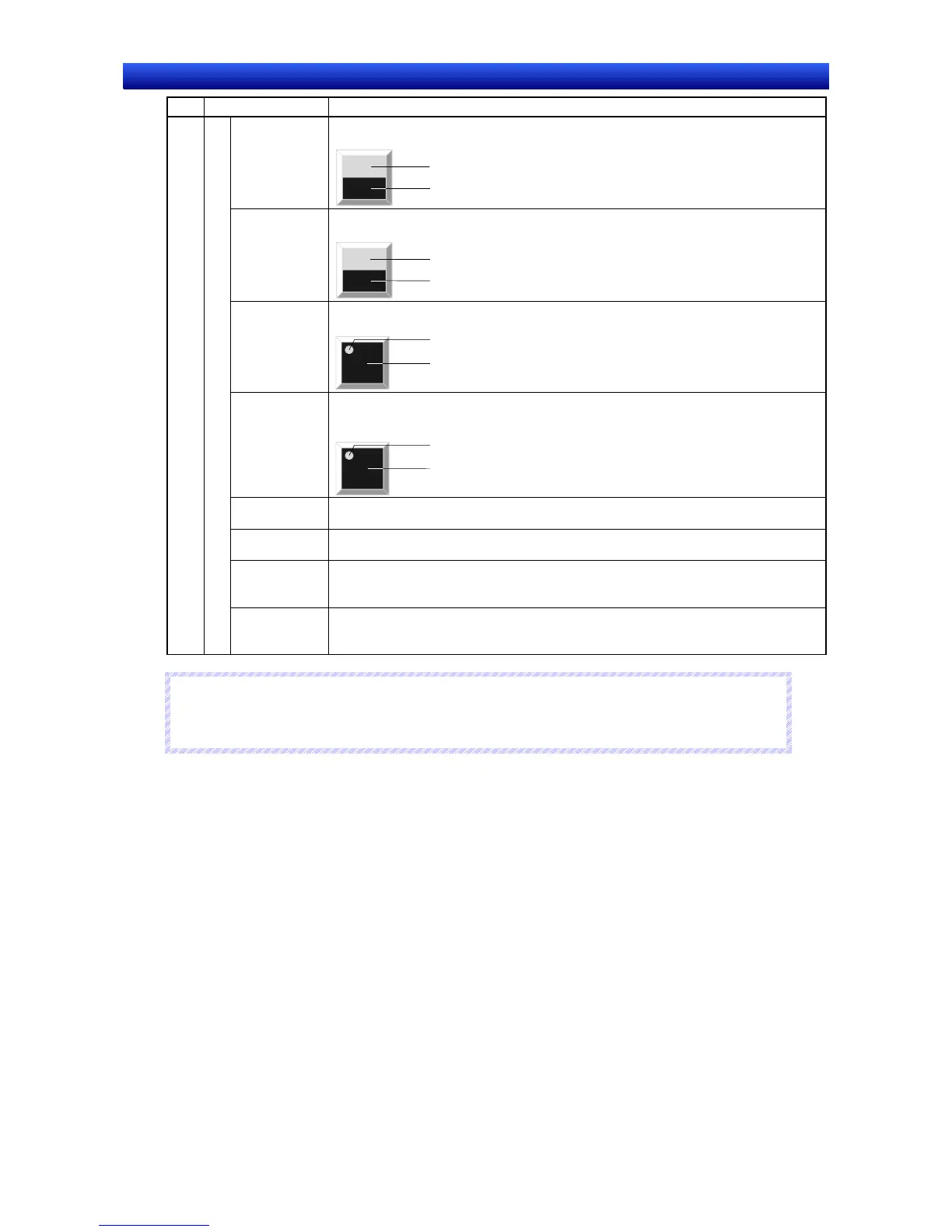

No. Setting Details
4
Rectangle
2 Light
(Type 1)
The top color changes based on whether the write address is ON or OFF and the bottom
color changes based on whether display address 1 is ON or OFF.
Accesses the write address.
Accesses display address 1.
Rectangle
2 Light
(Type 2)
The top color changes based on whether display address 1 is ON or OFF and the bottom
color changes based on whether display address 2 is ON or OFF.
Accesses display address 1.
Accesses display address 2.
Rectangle
2 Light
(Type 3)
The whole button color changes based on whether the write address is ON or OFF and the
color of a circle inside the button changes based on whether display address 1 is ON or OFF.
Accesses display address 1.
Accesses the write address.
Rectangle
2 Light
(Type 4)
The color of the circle inside the button changes based on whether display address 1 is ON
or OFF and the whole button color changes based on whether display address 2 is ON or
OFF.
Accesses display address 1.
Accesses display address 2.
Select Shape
(Type 1)
The button shape changes based on whether the write address is ON or OFF.
Various button shapes can be set by selecting from the list.
Select Shape
(Type 2-1)
The button shape changes based on whether display address 1 is ON or OFF.
Various button shapes can be set by selecting from the list.
Select Shape
(Type 2-2)
The button shape changes based on whether display address 1 is ON or OFF.
The button shape also changes when the button is pressed.
Various button shapes can be set by selecting from the list.
Select Shape
(Type 3)
Changes the button shape based on the status of display address 1 and display address 2
(i.e., 1/1, 1/0, 0/1, or 0/0).
Various button shapes can be set by selecting from the list.
N
N
N
o
o
o
t
t
t
e
e
e
♦
If frames are switched frequently, the display update may take some time and communications may
be delayed. Care must be taken because this means that sometimes the momentary ON/OFF
buttons may not operate normally.
Color/Shape Tab Page
The Color/Shape Tab Page is used to select the ON/OFF Button display status.
If Select shape is selected under Button type, select a display shape from the list. For all other cases,
select one of the 256 colors. Depending on the button type, only colors 1 and 2 may be used, or all
colors 1 to 4 may be used.
Similarly for shape specification, only shapes 1 and 2 may be used or all shapes 1 to 4 may be used,
depending on the button type.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
