Section 2 NS Series Functions 2-9 Buttons
2-149
NS Series Programming Manual
Data Block Control -- Read Record Label

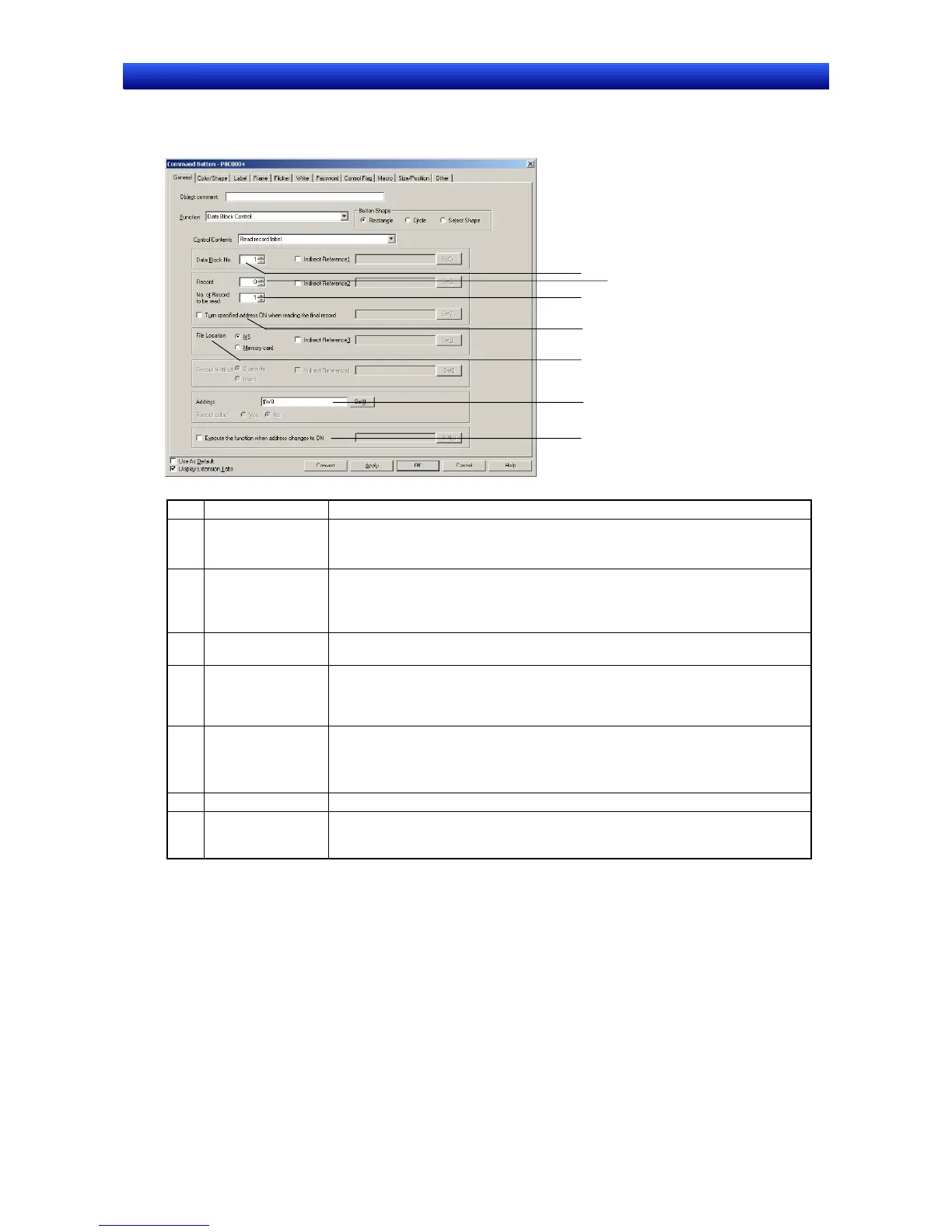

This function operates on data blocks. When a button is pressed, the record labels for the specified
records in the CSV file are transferred to the specified addresses in the PT.
2
1
3
4
5
6
7
No. Setting Details
1 Data Block No. Specifies the data block group number (1 to 100) to be controlled.
The group number can be set indirectly through a communications address by se-
lecting the Indirect Reference Option.
2 Record Specifies the first record number (0 to 999) in the CSV file for which the record label
is to be read.
The Record number can be set indirectly through a communications address by se-
lecting the Indirect Reference Option.
3 No. of Record to be
read
Specifies the number of record labels to read starting from the top record number.
4 Turn specified ad-
dress ON when
reading the final
record
If this option is selected, the specified address will turn ON when the record label has
been read for the last record number.
5 File Location Specifies either the PT or a Memory Card as the location of the CSV file.
The File Location can be set indirectly by selecting the Indirect Reference Option.
If the specified address is 0, the PT will be used.
If the specified address is 1, the Memory Card will be used.
6 Address Specifies the PT communications address to which to write the record labels.
7 Execute the func-
tion when address
changes to ON
If the option is selected, the specified control operation is performed when the speci-
fied address changes from OFF to ON while the command button is being displayed.
