Section 2 NS Series Functions 2-11 Multifunction Objects
2-225
NS Series Programming Manual

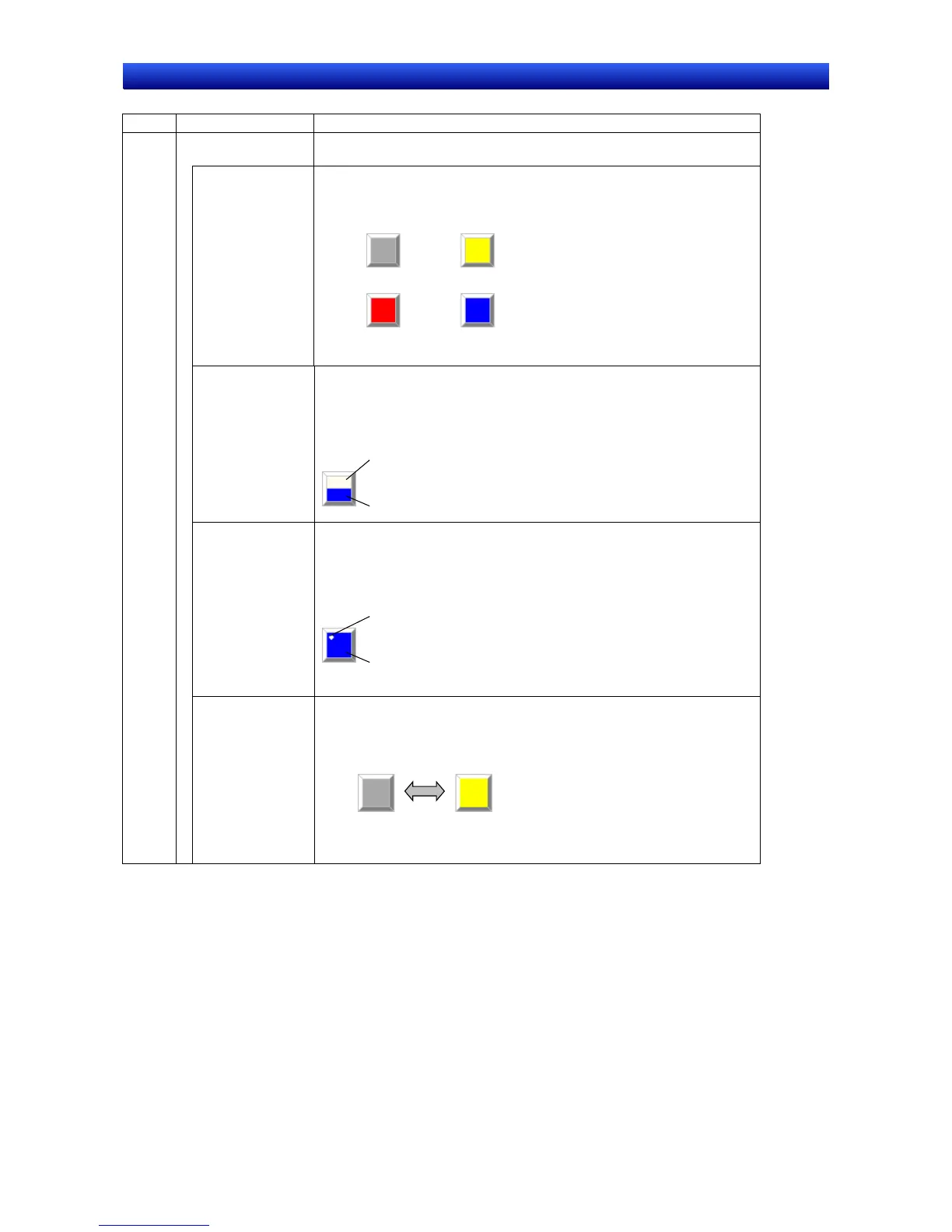

No. Item Details
Display Method Selects the method for color/shape changes for the specified shape. Refer
to Display Method Settings later in this section for details.
Bit Address 1, 2
(4 Colors)
Bit Address 1, 2
(4 Shapes)
Switches color (shape) depending on the ON/OFF status of two specified
display addresses.
Display Address (1): OFF
Display Address (2): OFF
Display Address (1): OFF
Display Address (2): OFF
Display Address (1): OFF
Display Address (2): ON
Display Address (1): ON
Display Address (2): ON
Bit Address 1, 2
(Upper/Lower)
This option can be selected only when Rectangle 2 Light (Upper/Lower)
has been specified.
Switches the upper and lower display colors depending on the ON/OFF
status of two specified display addresses.
Displays the upper ON or upper OFF color depending on
the ON/OFF status of Display Address (1).
Displays the lower ON or lower OFF color depending
on the ON/OFF status of Display Address (2).
Bit Address 1, 2
(Circle/Whole)
This option can be selected only when Rectangle 2 Light (Circle/Whole)
has been specified.
Switches the whole display color and the circle section display color de-
pending on the ON/OFF status of two specified display addresses.
Displays the ON/OFF color for inside the circle
depending on the ON/OFF status of Display Address (1).
Displays the ON/OFF color for the whole button
depending on the ON/OFF status of Display Address (2).
3
Same Value Displays the set value match color (shape) if the contents of the specified
address and the set value match. Displays the normal color (shape) if the
values do not match.
Normal color (shape)
Set value matched color (shape)
Display address
contents and set value
do not match.
Display address
contents and set value
match.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
