Omron NS Programming Manual

Section 2 NS Series Functions 2-12 Display and Input Objects
2-240
NS Series Programming Manual

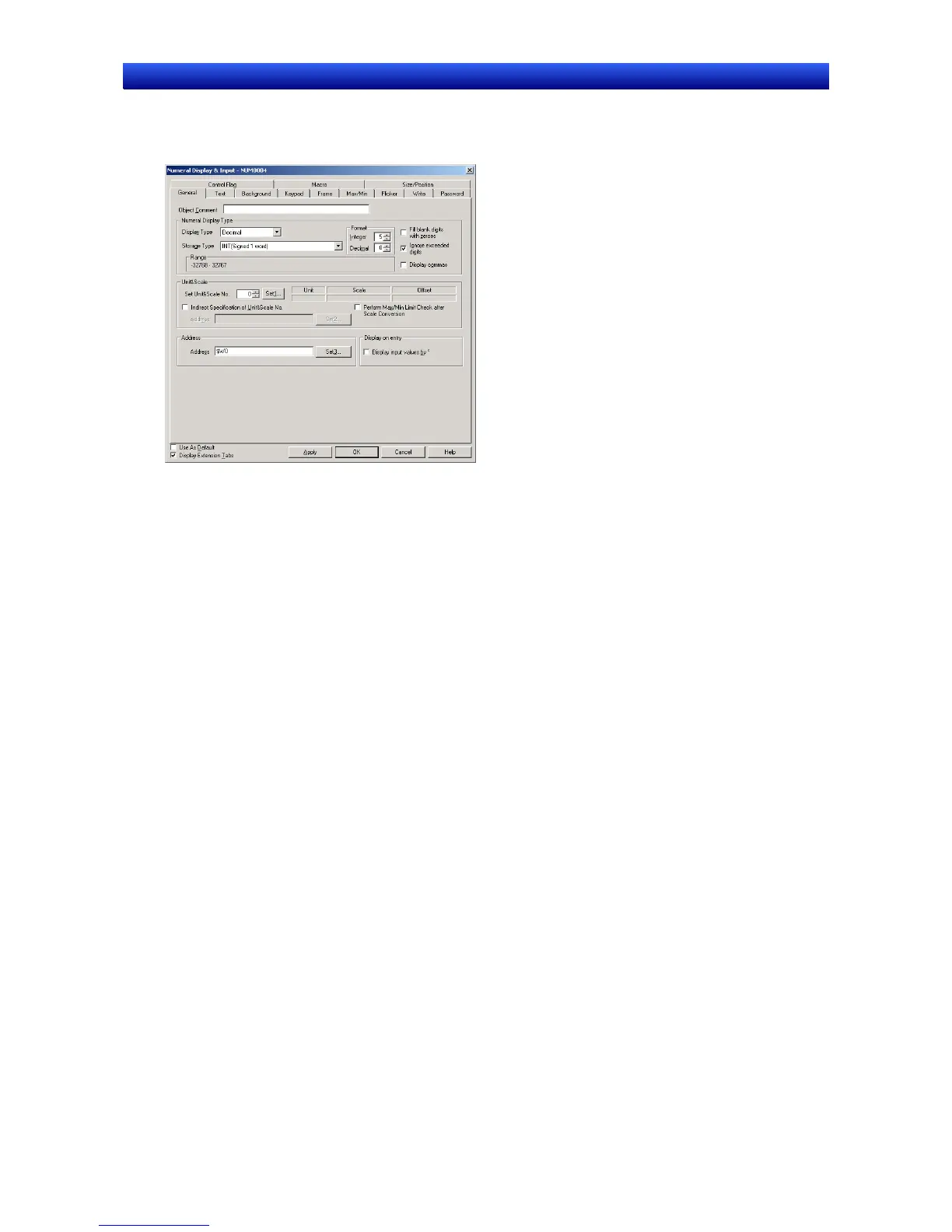

Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for numeral display
and input.
General Sets the address and numeral display type and units.
Text: Sets the text attributes for the displayed numerals.
Background: Sets the background color for numeral display.
Keypad: Sets the input method and display position and size of the keypad.
Frame: Sets the frame display for numeral display.
Max/Min: Sets the maximum and minimum limits for input. This Tab Page also sets the watch mini-
mum limit and watch maximum limit, as well as the colors displayed when the input
exceeds the watch minimum or watch maximum limit value. (See note.)
Flicker: Sets the flicker display. (See note.)
Write: Sets whether or not a confirmation message is displayed when values are written to ad-
dresses. (See note.)
Password: Sets whether or not a password input field is displayed when values are written to ad-
dresses. (See note.)
Control Flag: Sets enable/disable input and display/no display for objects. (See note.)
Macro: Sets macros that operate when values are input or address contents change. (See note.)
Size/Position: Sets the object size and position. (See note.)
Note: These tabs are displayed when the Display Extension Tabs Option is selected.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
