Section 2 NS Series Functions 2-14 Alarms and Events
2-323
NS Series Programming Manual

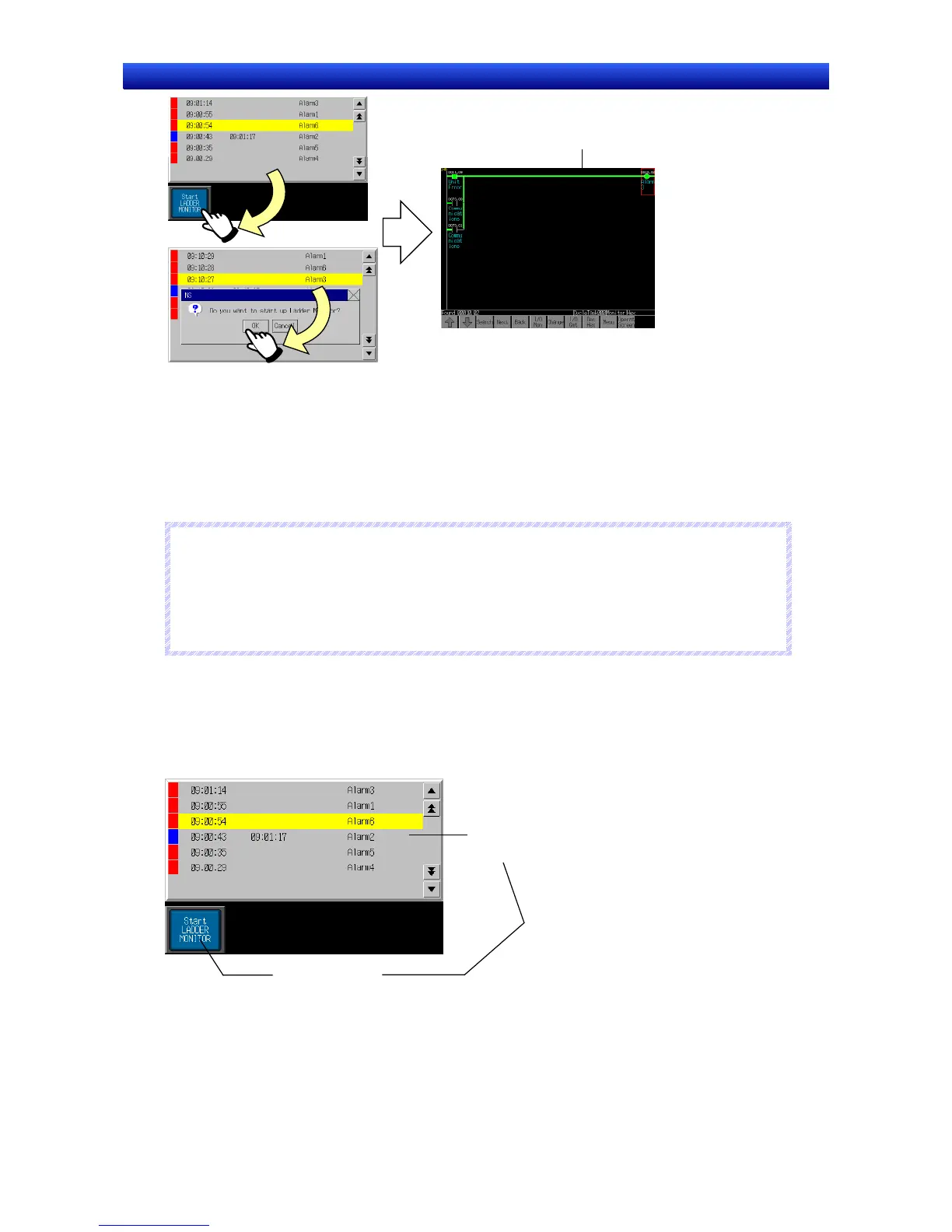

Select the alarm or event from the
alarm/event summary or history and start
the Ladder Monitor.
The communications address set
as an alarm or event will be
searched for automatically.
Use one of the following ways to start the Ladder Monitor.
1. Click a multifunction button set to start the Ladder Monitor.
2. Start the Ladder Monitor from the alarm/event summary or history.
N
N
N
o
o
o
t
t
t
e
e
e
♦
This function can be used if the NS system is version 8.0 or higher and the Ladder Monitor is ver-
sion 3.0 or higher.
♦
With the Ladder Monitor, you can search backwards to find the causes of alarms or events that
have occurred. For information on the Ladder Monitor, refer to the NS-series Ladder Monitor Op-
eration Manual (Cat. No. V082).
Using a Multifunction Button to Start the Ladder Monitor
Setting Procedure
Create a Multifunction Object as a Start LADDER MONITOR Button in the screen where the
alarm/event summary and history are found.
Alarm/event summary and
history
Placed in same
screen
Multifunction Object
1. Place a Multifunction Object on the same screen where the alarm/event summary and history is
found.
2. Set Switch Screen
– Display System Menu – Ladder Monitor as the operation for the Multifunc-
tion Object. (For information on Multifunction Objects, refer to 2-11 Multifunction Objects.)

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
