Section 2 NS Series Functions 2-16 Broken-line Graphs
2-377
NS Series Programming Manual

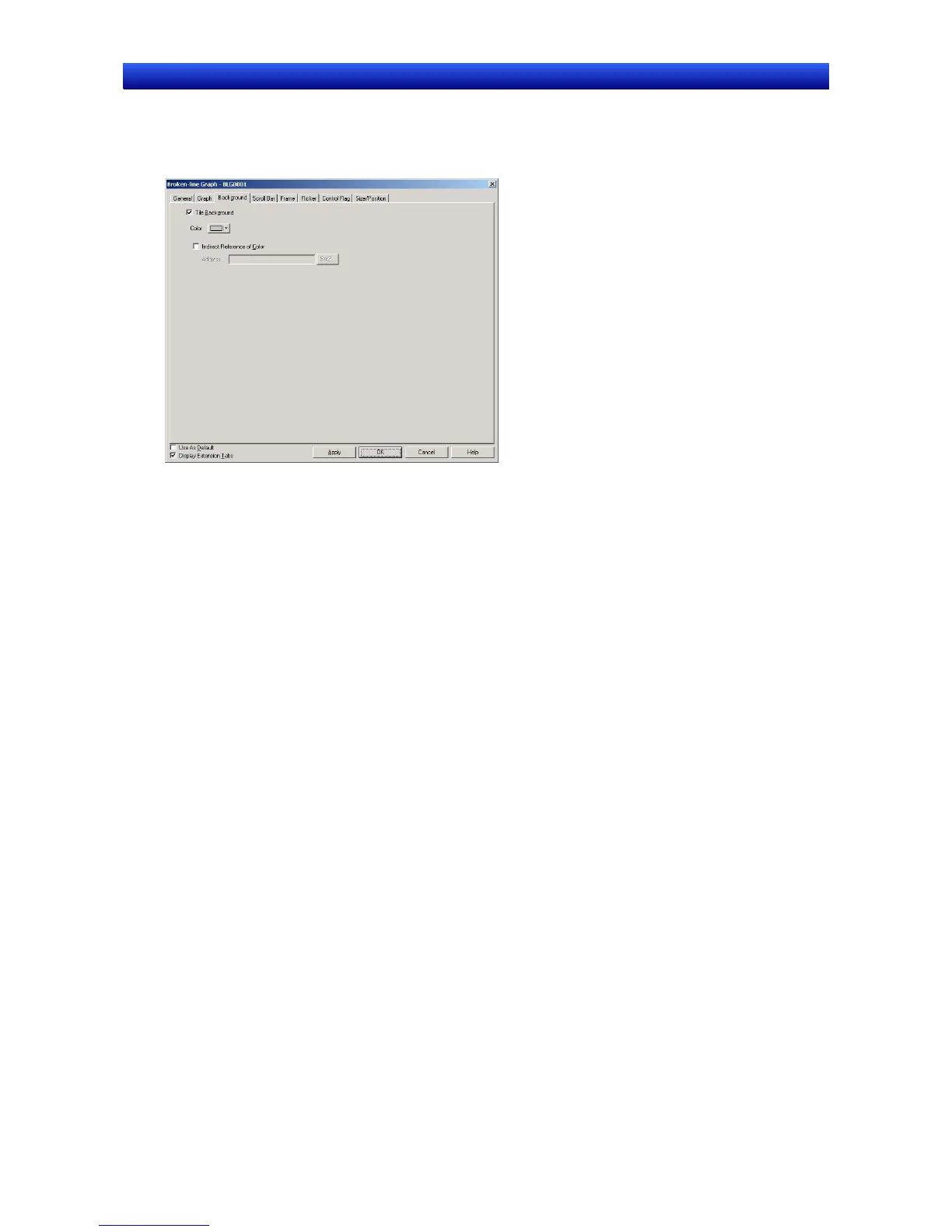

Background Tab Page
Sets whether or not the background is tiled. If the background is to be tiled, the background color for
broken-line graphs can be selected from 256 colors. Click Indirect reference of color to reference the
color code stored at a specified address for the background color.
Scroll Bar Tab Page
Sets display/no display, scroll width, and button size for the graph scroll bar displayed with broken-line
graphs.
Refer to Scroll Bars under 2-8 Common Functional Object Functions for details.
Frame Tab Page (Extension Tab)
Specifies the colors and sizes of the functional object frame to change the shape or color when the
broken-line graph is depressed or raised. Refer to Frames under 2-8 Common Functional Object Func-
tions for details.
Flicker Tab Page (Extension Tab)
Make flicker settings to make the functional object flicker (flash). Refer to Flicker under 2-8 Common
Functional Object Functions for details.
Control Flag Tab Page (Extension Tab)
Control flags can control the display of and input to functional objects. Use control flags to enable dis-
play or control input when the contents of an address turn ON or OFF. Refer to Control Flags under 2-8
Common Functional Object Functions for details.
Size/Position Tab Page (Extension Tab)
Displays and sets the functional object size and position. Refer to Size/Position under 2-8 Common
Functional Object Functions for details.
To Next Page
