Omron NS Programming Manual

Section 2 NS Series Functions 2-20 Special Functions
2-446
NS Series Programming Manual
N
N
N
o
o
o
t
t
t
e
e
e
♦
The order that data is saved in a CSV file can be changed by setting the data log file output format
on the History Tab Page under Settings.
♦
HOST1 is the host name set in the Comm. Setting Dialog Box, which is opened by selecting PT –
Communication Setting.
♦
Up to 999 CSV files can be saved each for Trend@.csv and Trd@@. csv. When this number is ex-
ceeded, the saved files will be overwritten in order beginning with 001.
♦
If a Trd@@.csv file is saved, a folder is created for each group below the \LOG\Trend folder in the
Memory Card directory. The name of the folder will be the name of the output file. Up to 999 CSV
files will be saved in each folder if the output file names are less than five characters long. If more
than 999 files are saved, the saved files will be overwritten in order beginning from 001. Only up to
099 CSV files will be saved in each folder if the output file names are six characters or more. If
more than 099 files are saved, the saved files will be overwritten in order beginning from 001.
♦
If the Memory Card is full when a data log save is executed, the file with the oldest file number will
be overwritten. (Before project version 5.0)
♦
Saving will be stopped when the Memory Card has no more available space. When the file number
reaches the upper limit, the oldest number will be overwritten as new files are saved. (This applies
to project version 6.0 or higher.)
Maximum Number of Records
Up to 50,000 records can be kept for each group.
The number of records is set under PT – Data Log setting on the CX-Designer.
The set ring buffer format is fixed for records. With the ring buffer format, the oldest data is deleted
when the maximum number of records is exceeded and new data is then recorded.

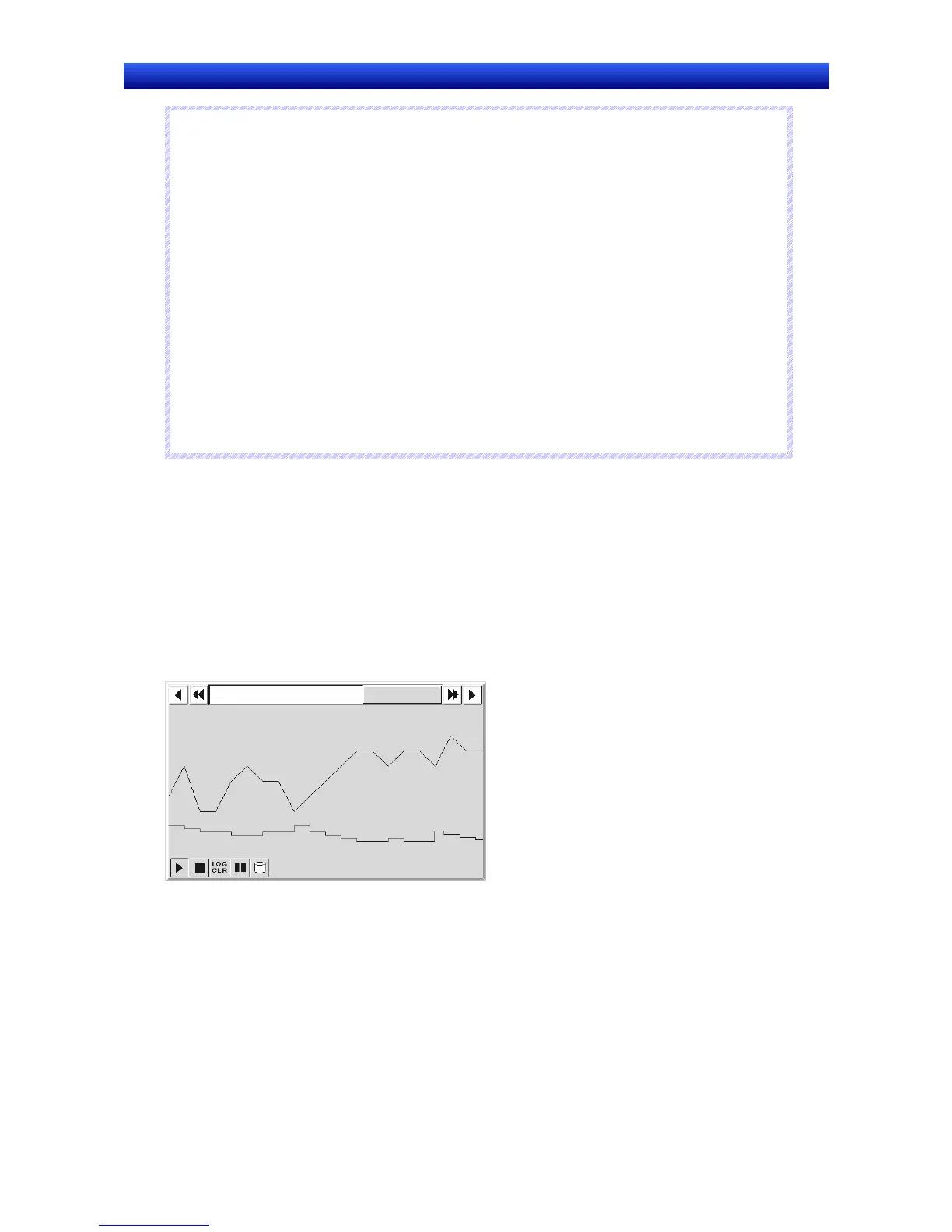

Checking Records
Records can be checked during operation by using data log graph functional objects.
Open the screen on which the data log graph was created.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
