Section 2 NS Series Functions 2-20 Special Functions
2-480
NS Series Programming Manual

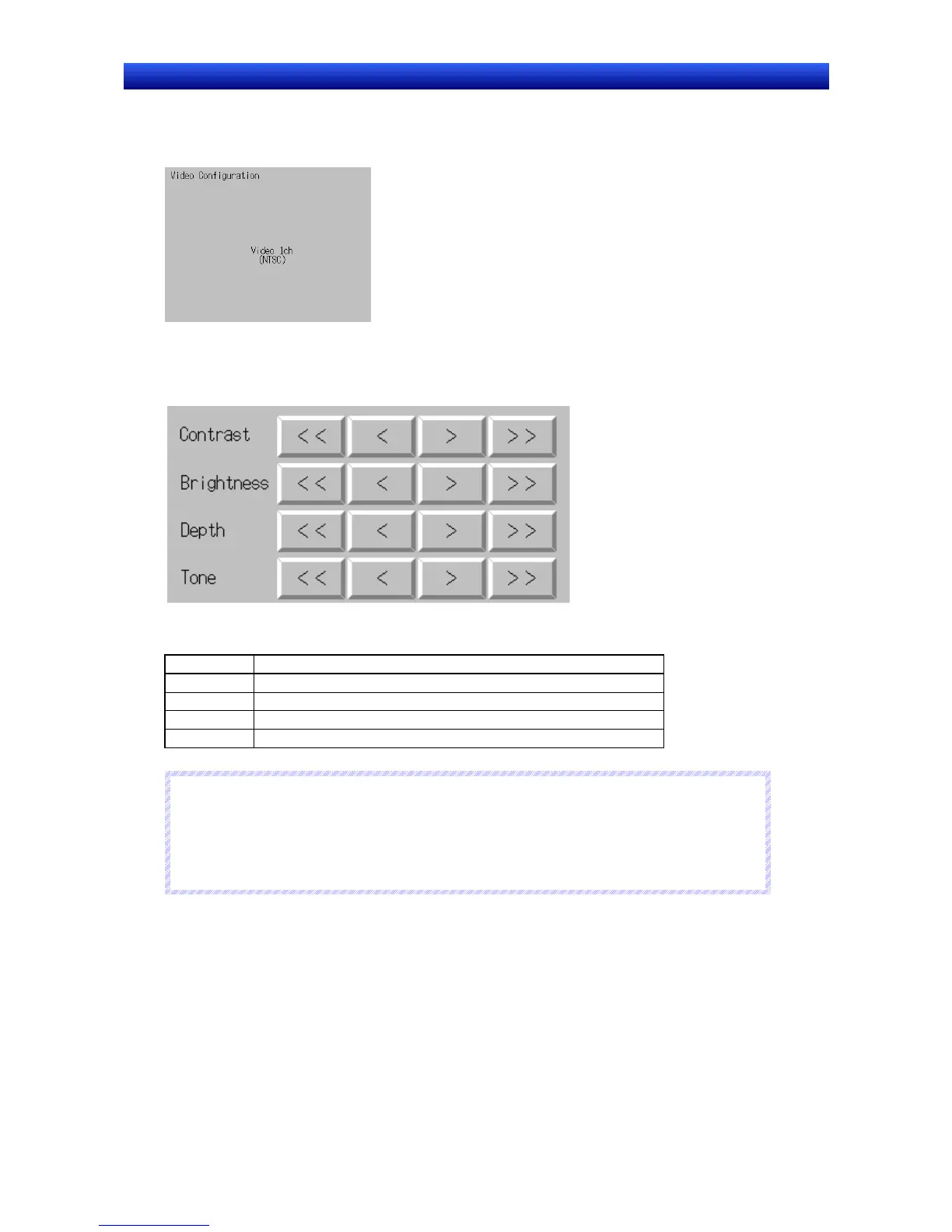

Display Area
The image from the video device connected to channel 1 of the Video Input Unit is shown in the display
area. This area turns blue if data is not input to channel 1.
Contrast Adjustments
The contrast adjustments affect the Video Input Unit. The contrast, brightness, depth, and tone of the
image can be adjusted by clicking the buttons.
Values are changed as shown below.
Button Increment/Decrement
<< −10
< −1
> +1
>> +10
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
The image can be adjusted by using command buttons or Multifunction Objects as well. Refer to
2-9-3 Command Buttons or 2-11 Multifunction Objects for details.
♦
Settings will be written to the Video Input Unit when the Write Button is clicked.
Previous settings will remain if the PT is restarted without clicking the Write Button.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
