Omron NS Programming Manual

Section 3 Using PTs 3-5 Displaying Graphs
3-16
NS Series Programming Manual
Refreshing Graph Display at Specified Intervals
Graphs can be scrolled and the display refreshed at any time interval based on a specified time.
1. Select Set Address for updating display under the data log graph property setting, and then set an
address for specifying refreshing the display under Scroll Control Flag and an address where the
scroll time is stored under Address for Specifying Scroll Interval.
A
A
Scroll time address
contents: 10

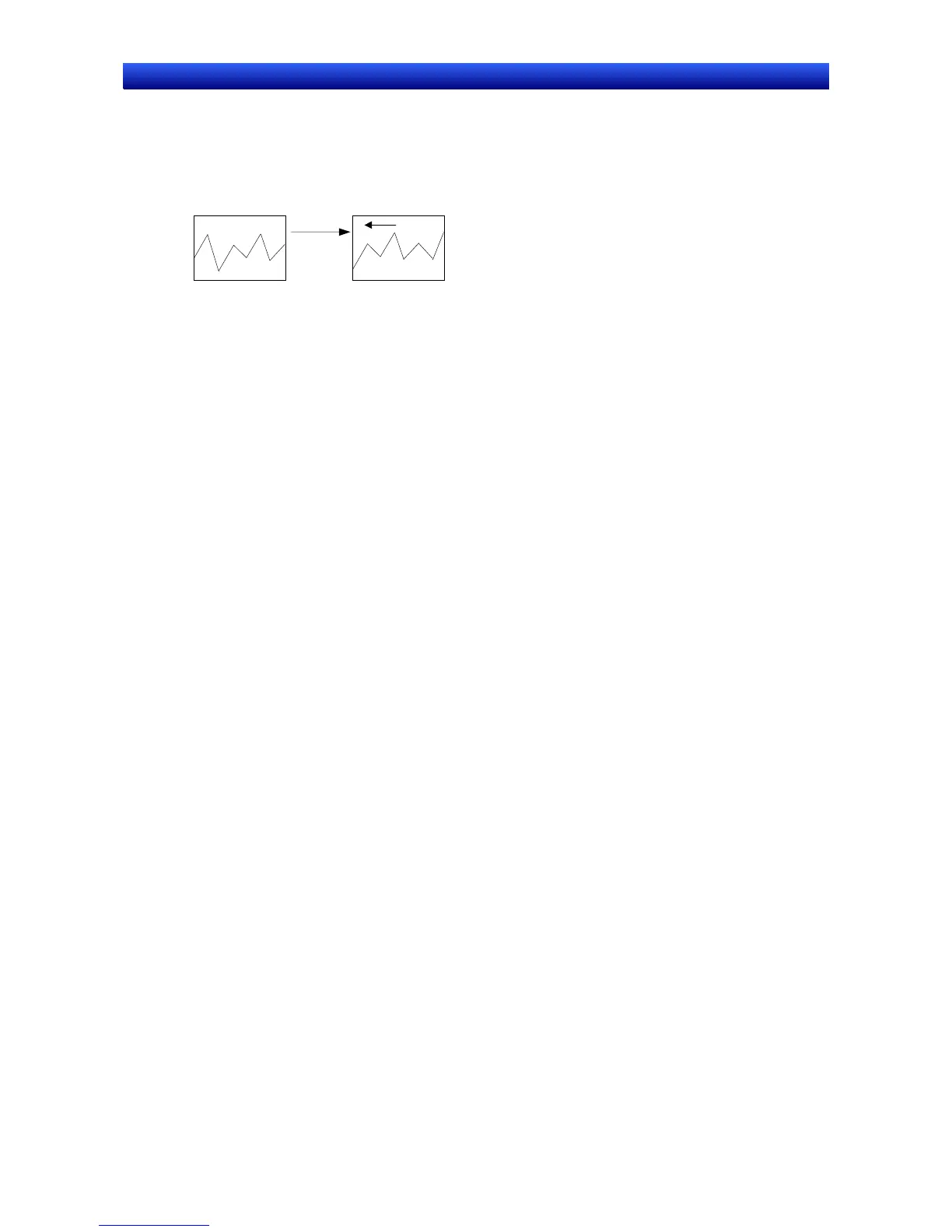

Display refresh
address
ON
Scrolls 10 seconds worth
(when unit for time axis
scale is seconds)

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
