Section 4 Using Functions 4-1 Application
4-4
NS Series Programming Manual

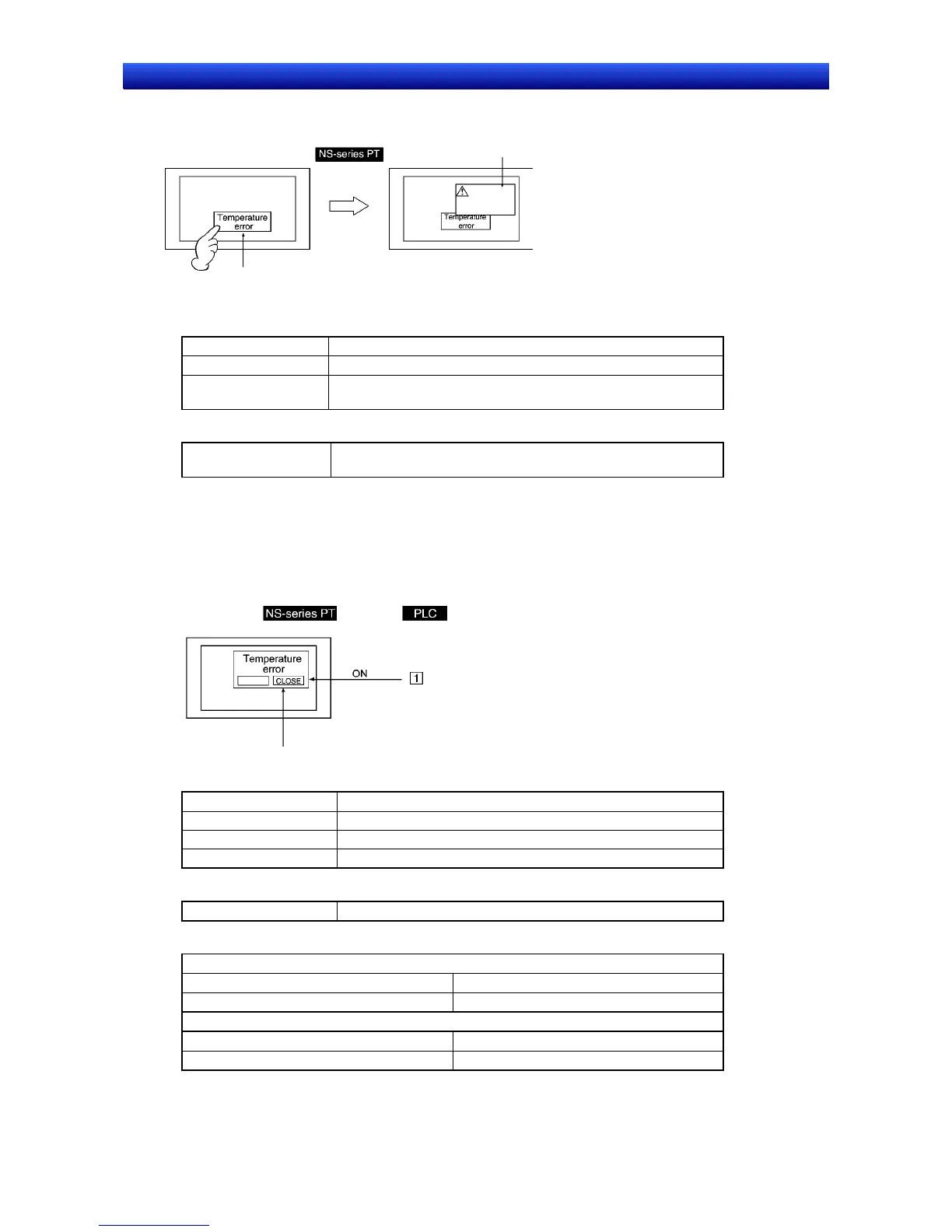

Example 5: To display the possible countermeasures for the error when the alarm message
Temperature error is touched.
Pop-up screen
Alarm/event display
1. Make the following alarm/event settings.
Address Number of the PLC bit to be monitored
Auto screen switch OFF (Do not select.)
Screen No. Number for the screen that displays countermeasures for the er-
ror.
2. Set the alarm/event display on the screen as shown in the following table.
Movement when
Alarm/Event is selected
Select Switch Screen to the Specified Page Set with an
Alarm/Event Setting.
3. Create text that describes the countermeasure (e.g., Check the …) on the countermeasures
screen. (Select Use as pop-up screen in the screen properties.)
Displaying Messages on Pop-up Screen
Example: To open and display an error message on a pop-up screen when the monitored PLC bit
turns ON.
Pop-up screen
Bit
1. Make the following alarm/event settings.
Address Number of the PLC bit to be monitored
Display type High alarm
Auto screen switch ON (Select.)
Screen No. Number for the pop-up screen to be displayed (Refer to step 2.)
2. Create alarm/event display on the pop-up screen.
Background color Red
3. Create 2 Command Buttons with the following settings on the pop-up screen.
Close Button
Function selection – control Pop-up screen Close local pop-up screen
Label CLOSE
Move Button
Function selection – control Pop-up screen Move local pop-up screen
Label Move
Check the…
