Section 2 NS Series Functions 2-5 Communications Address Settings
2-51
NS Series Programming Manual
2
3
4
5
6
7
8
1

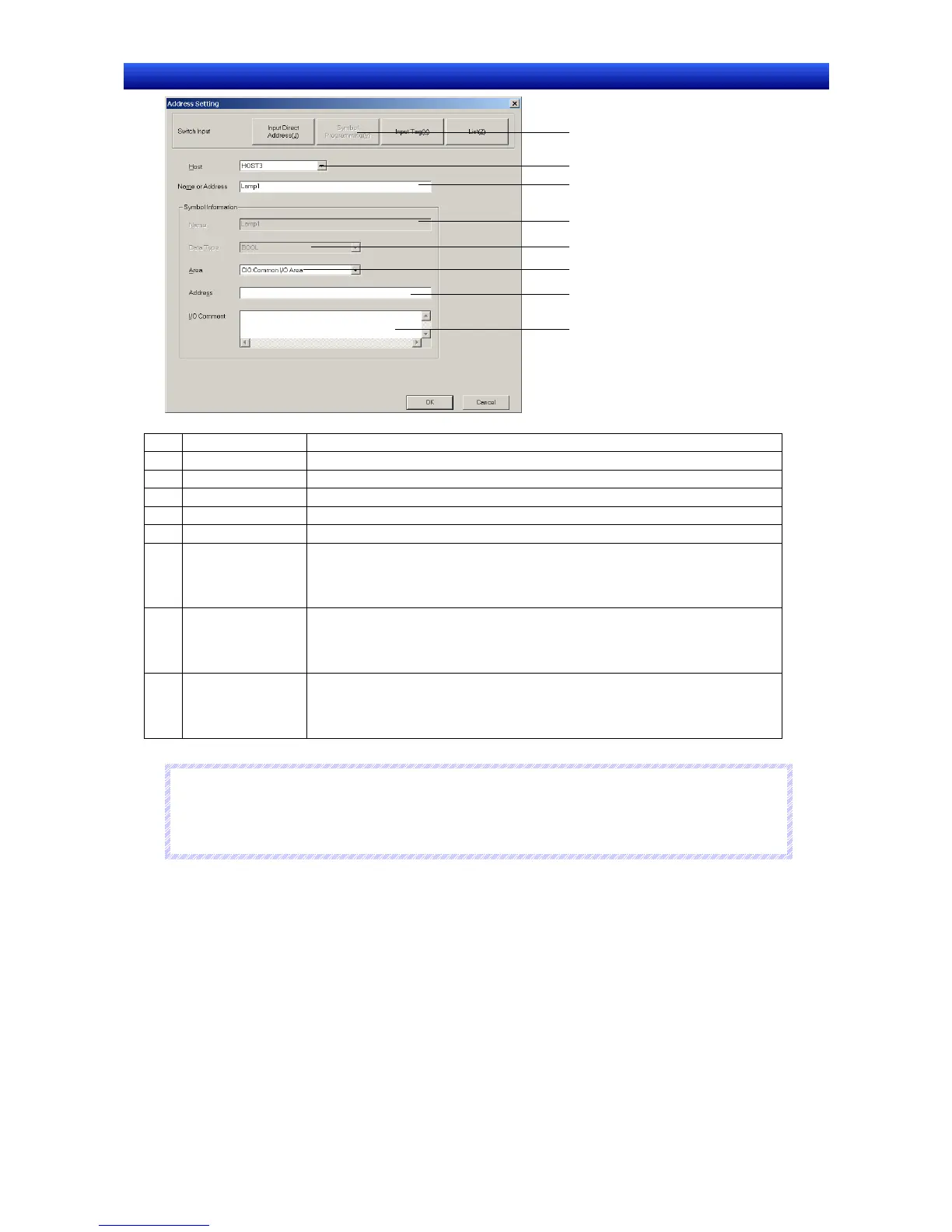

No. Setting Details
1 Switch Switches the input method.
2 Host Select the pre-registered host name or PT memory (internal PT memory).
3 Name or Address Input the name of the desired symbol.
4 Name Displays the symbol name set in the Name or Address Field.
5 Data Displays the data type that can be set. (CHANNEL stands for word data.)
6 Area
When a symbol name that is not registered in the symbol table has been set in the
Name or Address Field, select the area name here.
When a symbol name that is registered in the symbol table has been set in the Name or
Address Field, that symbol’s area name will be displayed here.
7 Address
When a symbol name that is not registered in the symbol table has been set in the
Name or Address Field, set the address here.
When a symbol name that is registered in the symbol table has been set in the Name or
Address Field, that symbol’s address name will be displayed here.
8 I/O Comment
When a symbol name that is not registered in the symbol table has been set in the
Name or Address Field, set an I/O comment here.
When a symbol name that is registered in the symbol table has been set in the Name or
Address Field, that symbol’s I/O comment will be displayed here.
N
N
N
o
o
o
t
t
t
e
e
e
♦
With any one of the input methods, a communications address can be input when specifying the
address. In this case, input the address in the Name or Address Field. The address can be input with
an index
Method 3: Selecting a Registered Symbol
Select the List Tab from the Switch Options. Select the desired symbol from the list of symbols regis-
tered in the symbol table.
