2-3
H 3G3FV-A2055/-A2075/-A4055/-A4075

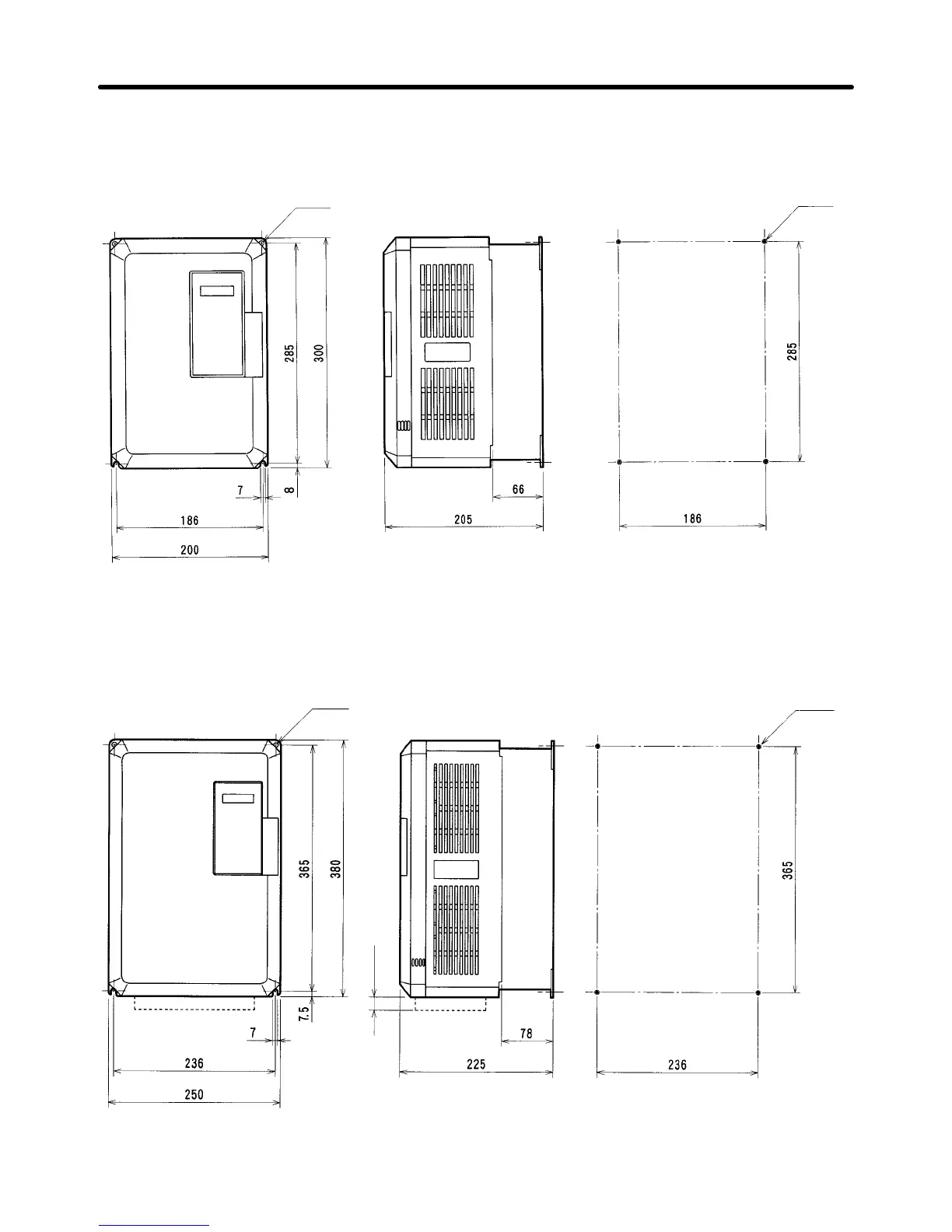

D External Dimensions D Mounting Dimensions
Two,
7 dia.
Four, M6
H 3G3FV-A2110/-A2150/-A4110/-A4150
D External Dimensions D Mounting Dimensions
Two,
7 dia.
Four, M6
20 (see note)
Note *The dashed lines apply only to the A2150.
