2-2
2-1 Mounting
2-1-1 Dimensions
H 3G3FV-A2004/-A2007/-A2015/-A2022/-A2037
3G3FV-A4004/-A4007/-A4015/-A4022/-A4037

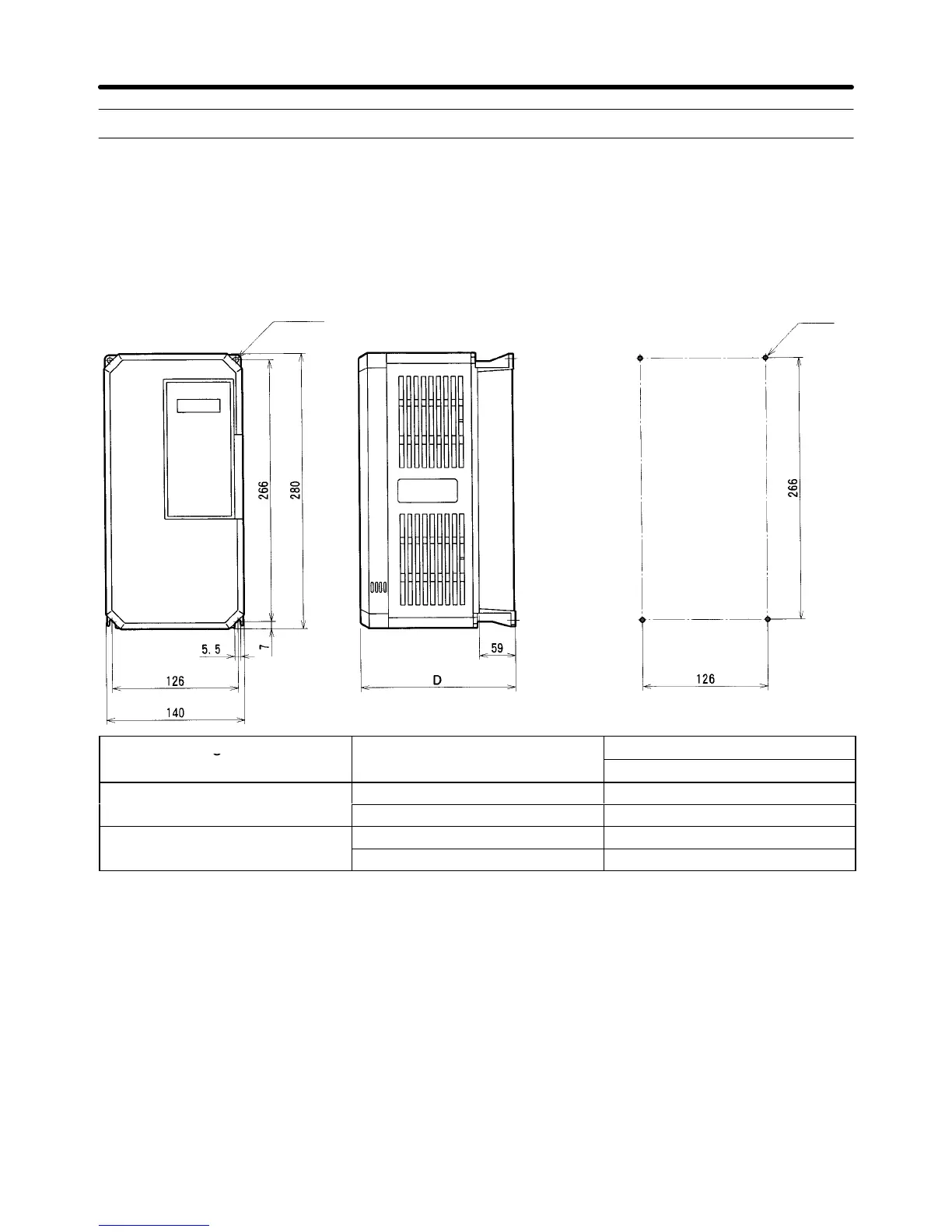

D External Dimensions D Mounting Dimensions
Two,
5.5 dia.
Four, M5
Voltage class Model 3G3FV-
Dimensions (mm)
g
D
200-V
A2004/A2007/A2015 160
A2022/A2037 180
400-V
A4004/A4007 160
A4015/A4022/A4037 180
Installation Chapter
2
